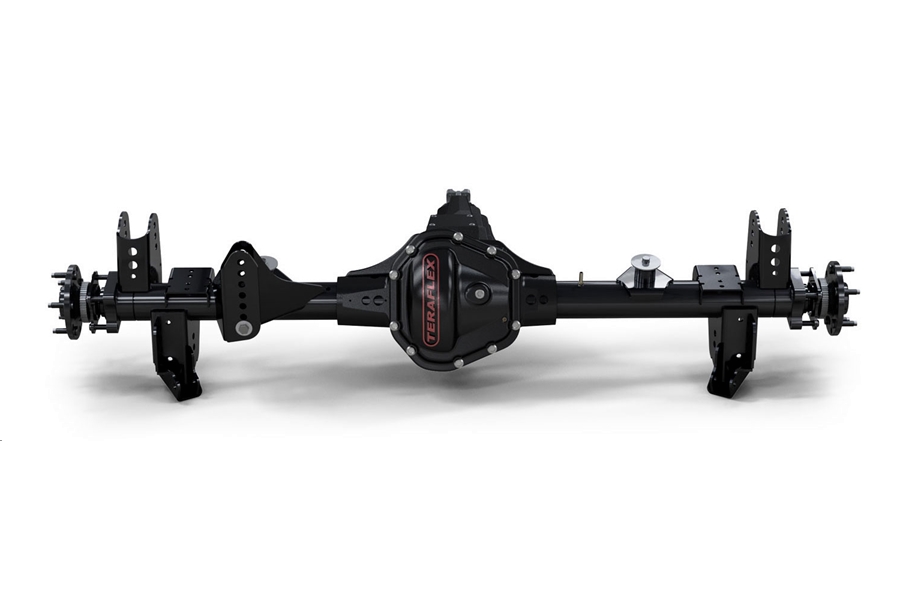

Teraflex Rear CRD60 Semi Float Axle Housing w/ 4.30 R&P and ARB Super 60

The heavy-duty TeraFlex JK Rear CRD60 Semi-Float Axle Housing provides maximum protection, performance, and durability for the JK Wrangler, while the exclusive Constant Radius Design (CRD) provides high ground clearance that in unaffected by pinion angle adjustments.

The CRD60 is equipped with the same features included in all of our axles including a heavy-duty housing with heavy-duty axle tubes and bearing caps, high-flow oil passages, bracketry, smooth profile surfaces, and increased cover mounting area. Pre-installed inner seals and upper control arm bushings make the upgrade seamless.

The TeraFlex JK CRD60 Axle Housing is a direct bolt-on upgrade for JK Wrangler owner looking to beef up or replace a bent broken, or damaged stock rear axle in JK Wrangler and Rubicon vehicles. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.

LIFT HEIGHT: 0-6”
WIDTH: 67” WMS-WMS (stock)
AXLE TUBE: 3.25” x 0.375”
RING & PINION: 4.30
WHEEL BOLT PATTERN: 5x5” (stock)

Includes:

Features and Benefits:
