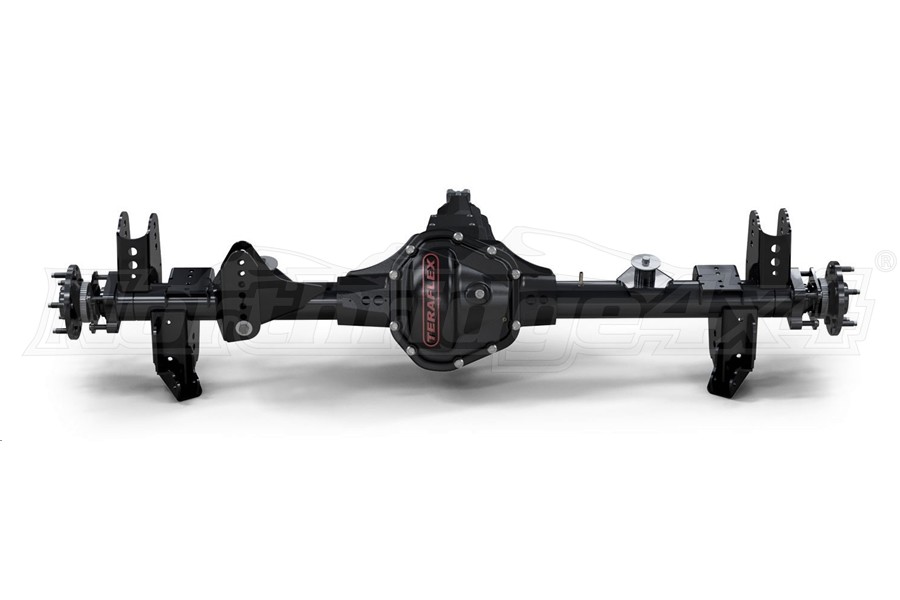

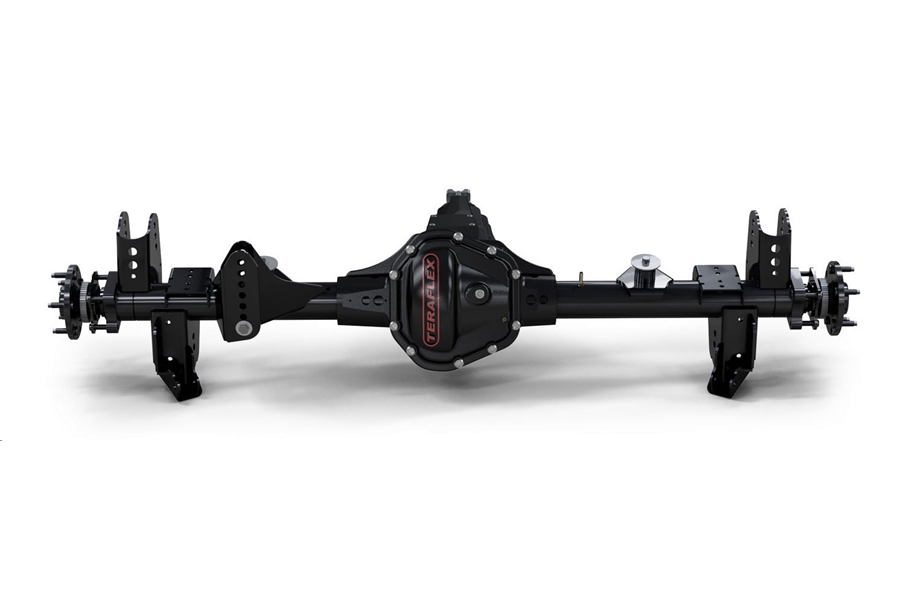

The heavy-duty TeraFlex JK Rear CRD60 Semi-Float Axle Housing provides maximum protection, performance, and durability for the JK Wrangler, while the exclusive Constant Radius Design (CRD) provides high ground clearance that in unaffected by pinion angle adjustments.
The CRD60 is equipped with the same features included in all of our axles including a heavy-duty housing with heavy-duty axle tubes and bearing caps, high-flow oil passages, bracketry, smooth profile surfaces, and increased cover mounting area. Pre-installed inner seals and upper control arm bushings make the upgrade seamless.
The TeraFlex JK CRD60 Axle Housing is a direct bolt-on upgrade for JK Wrangler owner looking to beef up or replace a bent broken, or damaged stock rear axle in JK Wrangler and Rubicon vehicles. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
LIFT HEIGHT: 0-6”
WIDTH: 67” WMS-WMS (stock)
AXLE TUBE: 3.25” x 0.375”
RING & PINION: 5.38
WHEEL BOLT PATTERN: 5x5” (stock)
Includes:
ARB Super 60 air locker
Spicer ring & pinion – 5.38
Spicer bearings & install kits
1350 series pinion yoke
35-spline inner & outer axle shafts
Features and Benefits:
Factory-style semi-float design
3.25” O.D. x 0.375” wall axle tube for superior strength vs. weight
Rear CRD60 specific high-pinion axle housing design
Pre-installed axle seals
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover
Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
Smooth radius bottom design to glide over rocks & obstacles
HD bearing caps increase rigidity & reduce ring & pinion distortion
Integrated lower flexarm skid plates
Premium UV protected triple-stage powder coat process for superior corrosion resistance
Built-in “skimmer” cuts ring gear oil halo & forces it into the pinion bearings
The front pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
Oversized front pinion bearing handles increased torque & high-load conditions
High-capacity housing holds 3 quarts of oil
1/4”-thick CNC laser cut axle brackets for extreme strength
Reinforced rear track bar mount w/ multiple mounting locations
Proper pinion angle for lifted JK applications
Pre-drilled holes for limit straps & lower spring retainers
Retains all JK ESP, ABS, & Speedometer sensor capability
100% engineered, designed, & built in the USA
100% new components
1-Year / Unlimited Mileage Warranty
Note:
Requires driveshaft modification.
