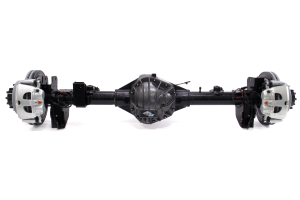

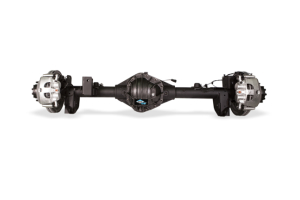

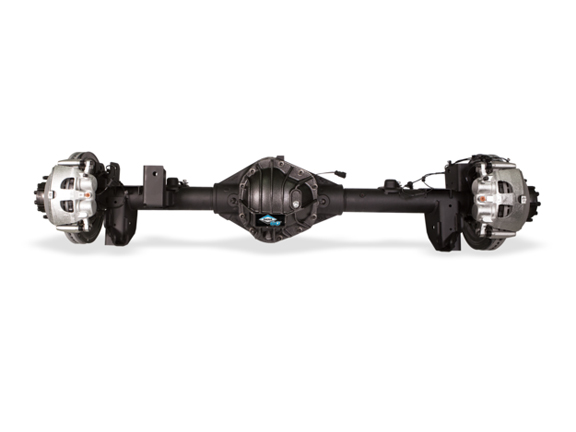

DANA ULTIMATE DANA 60 5.38 REAR AXLE ASSEMBLY W/BRAKES - JK

MODEL # DAN10005942
Manufacturer Part # 10005942

$4,999.99

MSRP: $7,121.28

24
hours
In stock! Ships same day
Qualifies for free shipping!


Share:
Buy as a package deal and save:
Dana Ultimate 60 Front and Rear Axles w/Front and Rear Adams Driveshafts ( Part Number:DANSPECIALDANA60)
Dana Ultimate 60 Front and Rear Axles w/Front and Rear Adams Driveshafts
As low as $13,212.60
View Product

Specifications


Brand: Dana
Axle Type: Dana 60
Bolt Pattern: 8x6.5
Brakes: 358mm
Locking Hubs: Yes
Ratio: 5.38
Ring Gear: 9.75in Ring and Pinion
Spline Count: 35
Tubing Diameter: 3.50in
Width: Standard

Mfgr. Warranty: 1 Year Limited Warranty
Condition: New Product
Return Policy:
Standard

Description

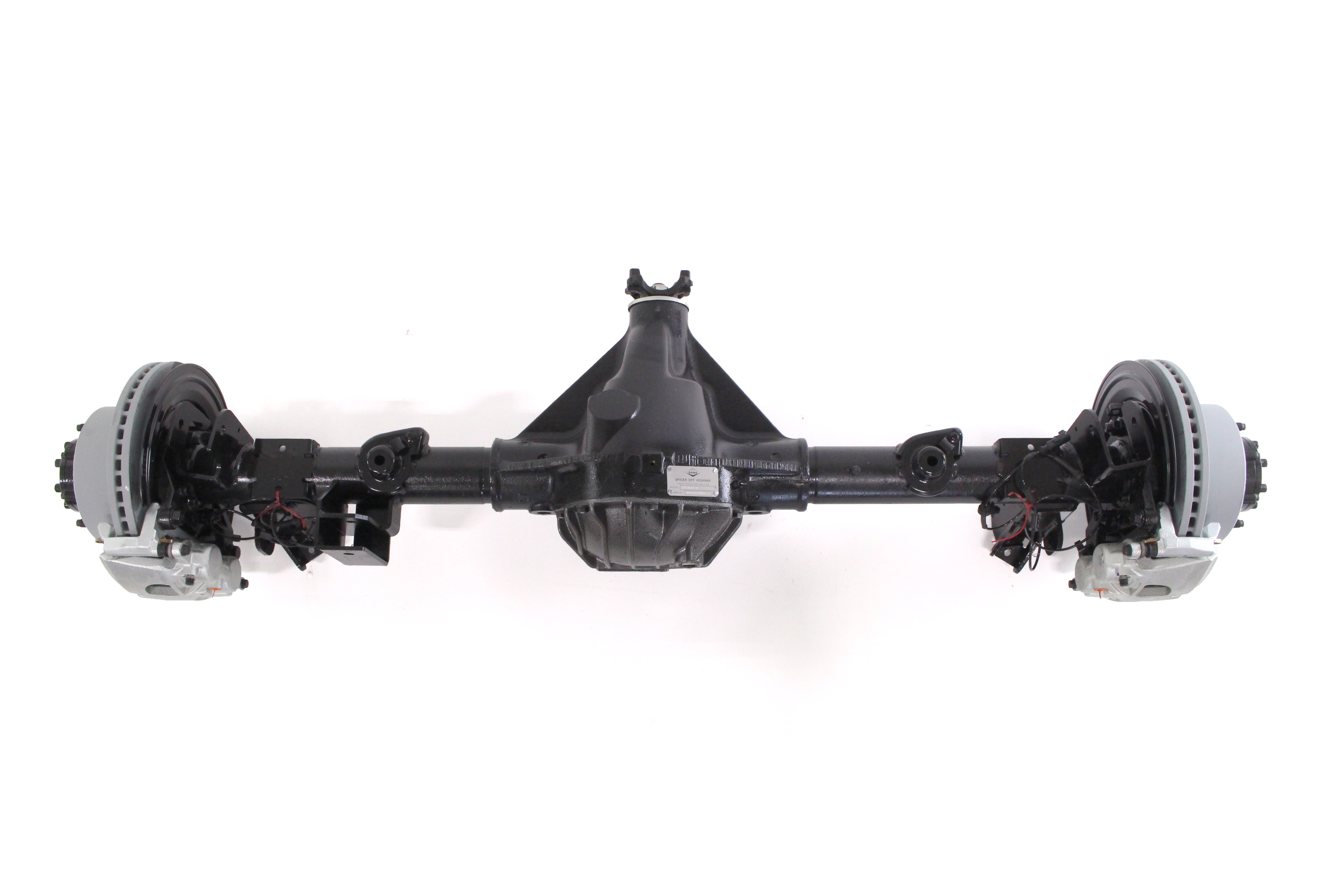

The Ultimate Dana 60 Rear Axle Assembly contains several attributes that make it one of the strongest axles available on the market today. This axle features Spicer® SPL®70 universal joints which is perfect for vehicles with altered lifts, and larger tires.

Some of the components include Spicer® 35 Spline SAE-4340 nickel chromoly steel axle shafts that can handle rigorous conditions of the off-road. Improvements in the design will give the driver the advantage across all terrains, and makes for the perfect addition to your altered suspension setup.

Here are additional specs of the Ultimate Dana 60 Rear Axle Assembly with brakes:

•    Full float design, vehicle weight is carried by the housing instead of the shaft which delivers greater load-carrying ability
•    35 Spline SAE-4340 nickel chromoly steel axle shafts
•    Selectable electronic locking differentials
•    Upgraded heavy-duty brakes with plug and play ABS system

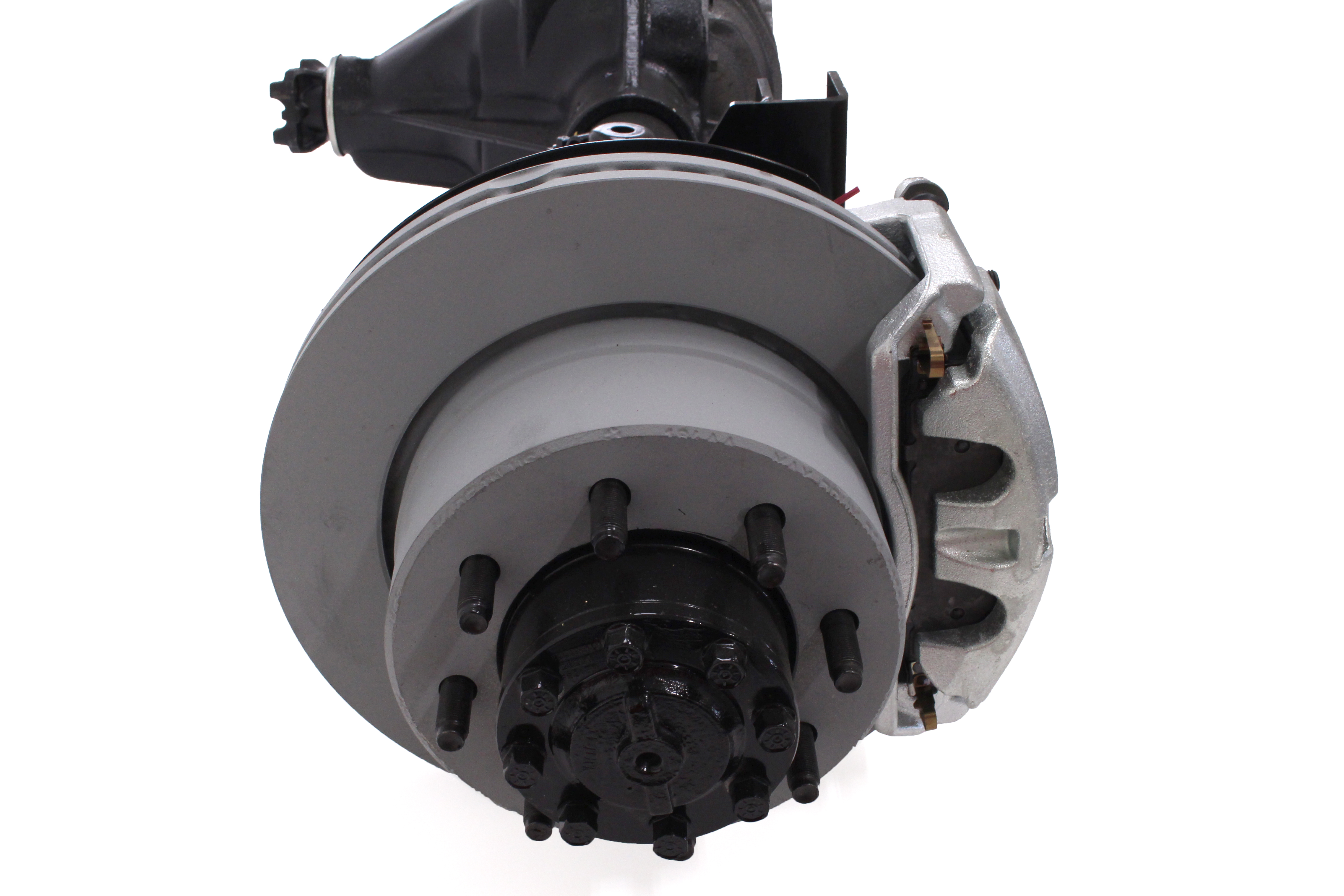

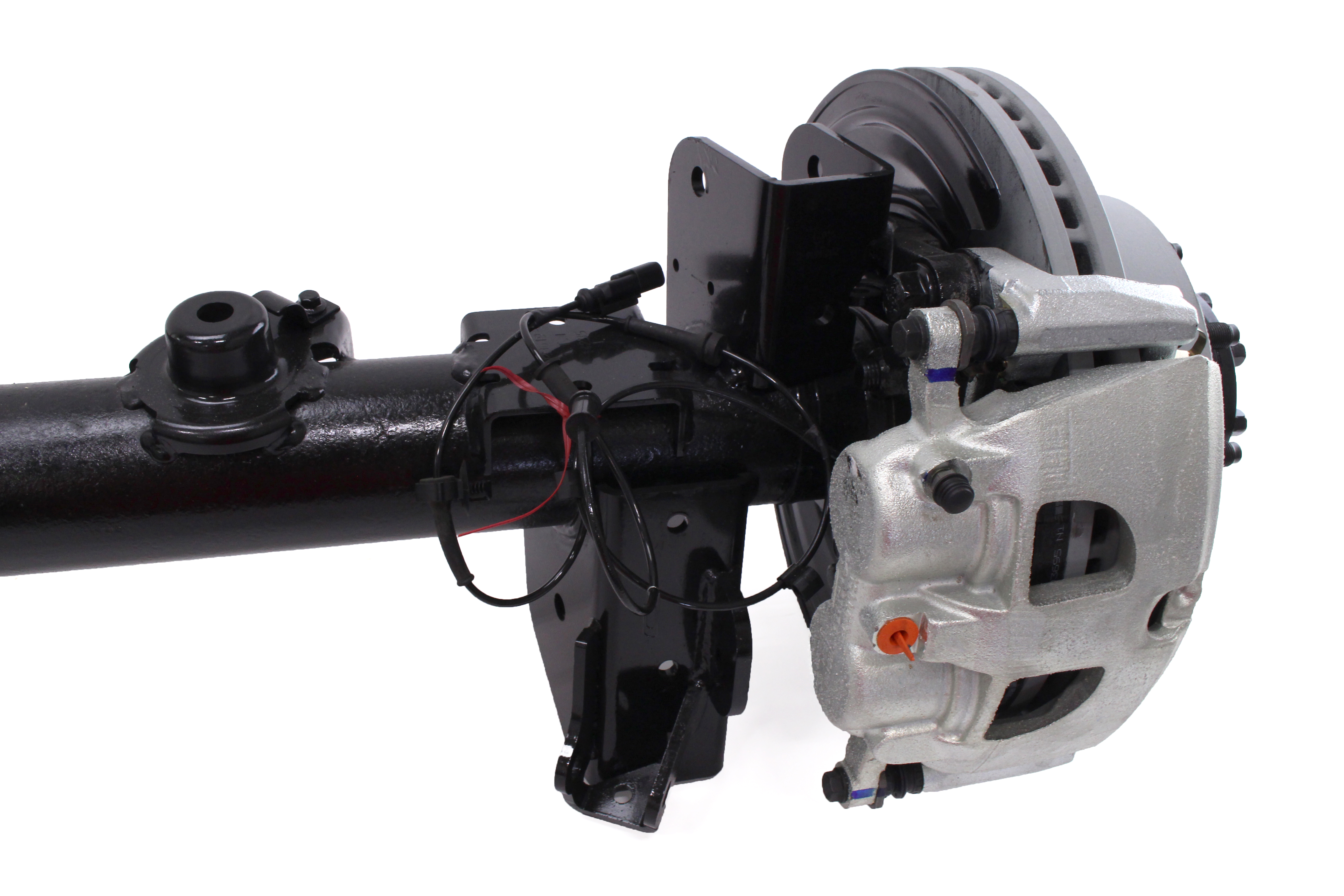

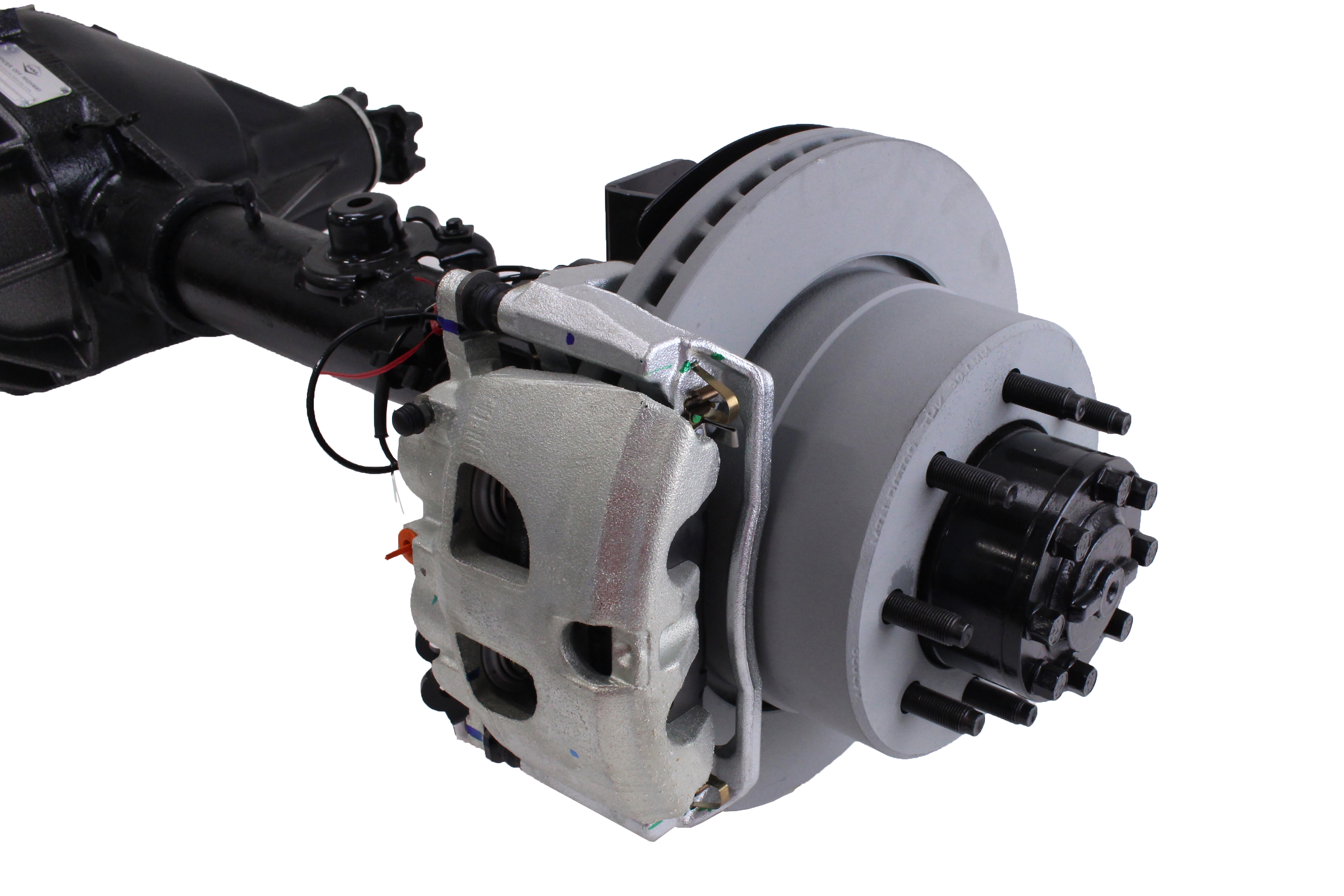

•    Large  vented rotors (358mm) and dual piston calipers for optimal braking power, and optimal cooling
•    Ideal on and off road stopping power for vehicles equipped with larger wheels and tires
•    Spicer 9.75” (248mm) ring and pinion inside

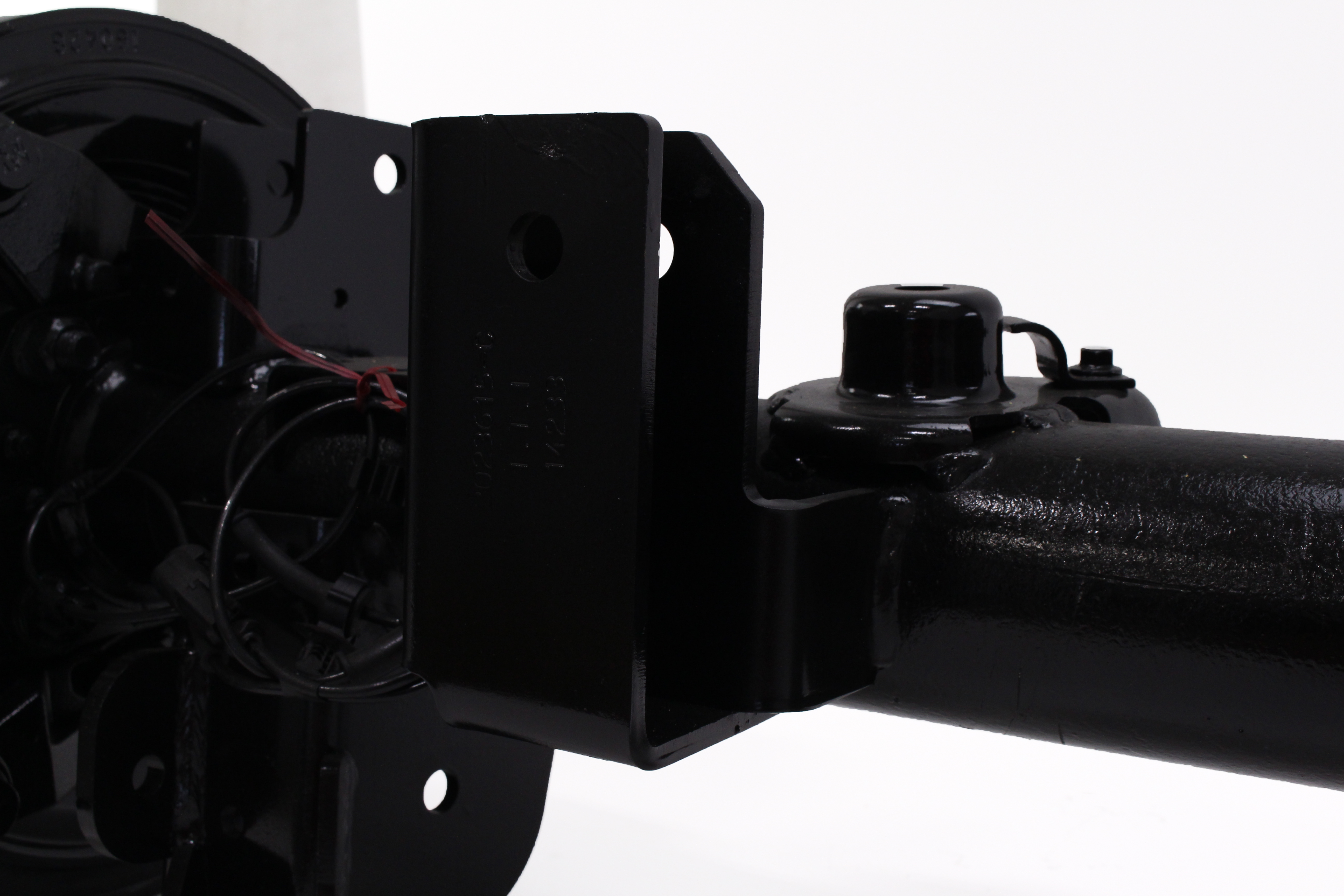

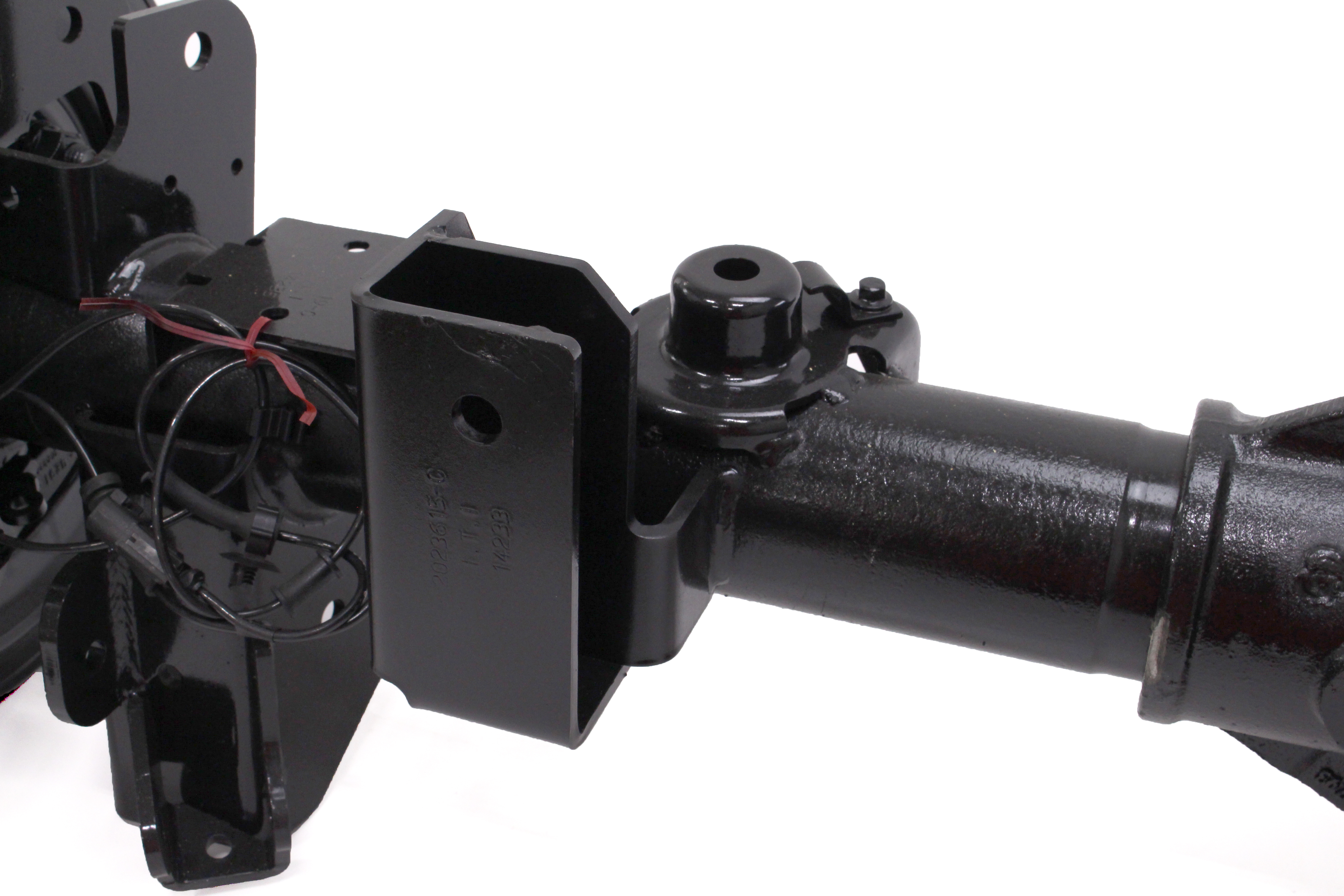

•    3.5” outside diameter/.390” wall thickness axle tubes
•    Heavy Duty 8 X 6.5” wheel bolt pattern

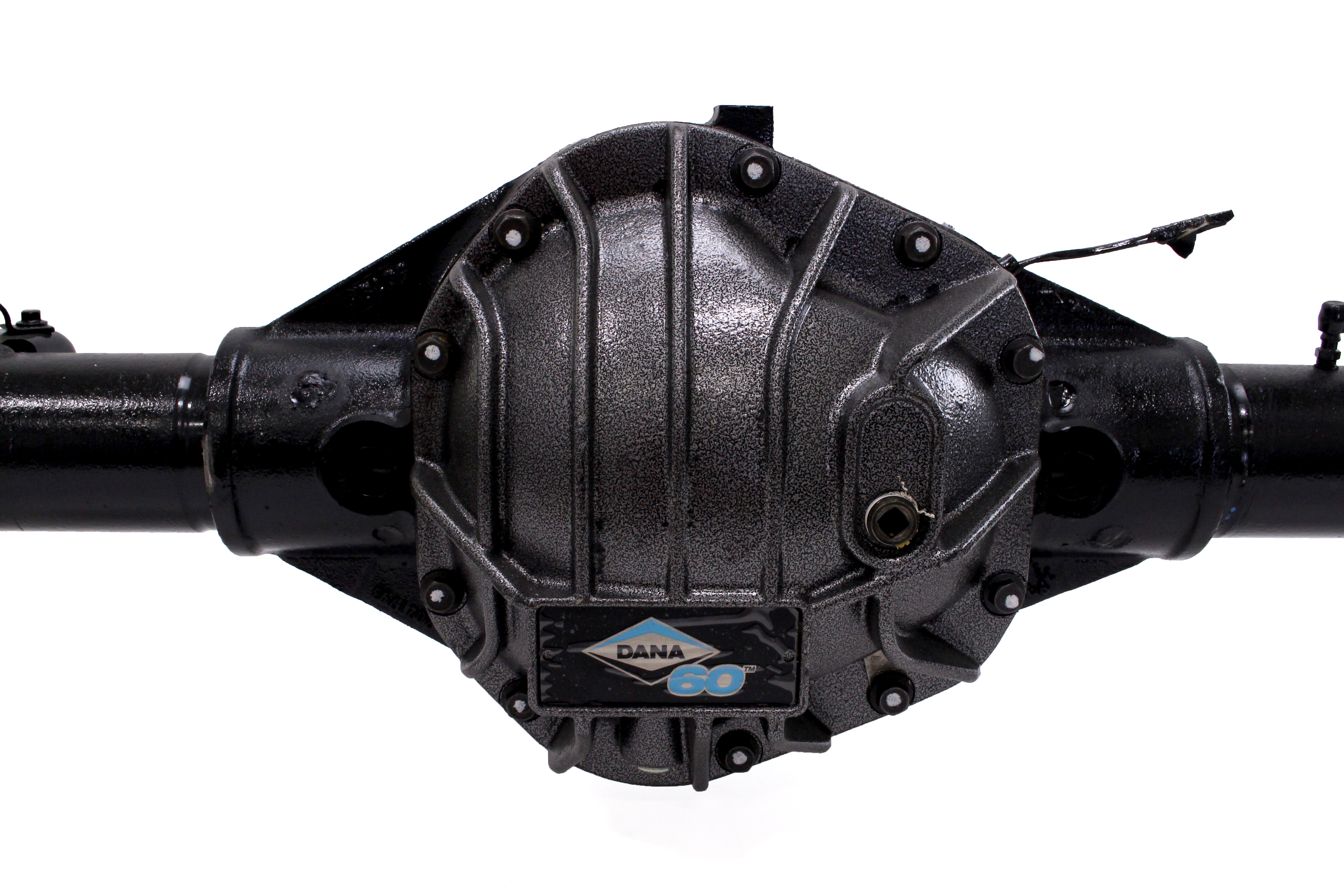

•    Nodular iron diff cover
•    5.38 Gear ratio

This product has no user uploaded media. You can upload your photo or video of your install by posting a review.

No questions have been asked about this product.
Jeep Wrangler JK
Rubicon
2007 Jeep Wrangler JK Rubicon
2008 Jeep Wrangler JK Rubicon
2009 Jeep Wrangler JK Rubicon
2010 Jeep Wrangler JK Rubicon
2011 Jeep Wrangler JK Rubicon
2012 Jeep Wrangler JK Rubicon
2013 Jeep Wrangler JK Rubicon
2014 Jeep Wrangler JK Rubicon
2015 Jeep Wrangler JK Rubicon
2016 Jeep Wrangler JK Rubicon
2017 Jeep Wrangler JK Rubicon
Sahara
2007 Jeep Wrangler JK Sahara
2008 Jeep Wrangler JK Sahara
2009 Jeep Wrangler JK Sahara
2010 Jeep Wrangler JK Sahara
2011 Jeep Wrangler JK Sahara
2012 Jeep Wrangler JK Sahara
2013 Jeep Wrangler JK Sahara
2014 Jeep Wrangler JK Sahara
2015 Jeep Wrangler JK Sahara
2016 Jeep Wrangler JK Sahara
2017 Jeep Wrangler JK Sahara
Unlimited Rubicon
2007 Jeep Wrangler JK Unlimited Rubicon
2008 Jeep Wrangler JK Unlimited Rubicon
2009 Jeep Wrangler JK Unlimited Rubicon
2010 Jeep Wrangler JK Unlimited Rubicon
2011 Jeep Wrangler JK Unlimited Rubicon
2012 Jeep Wrangler JK Unlimited Rubicon
2013 Jeep Wrangler JK Unlimited Rubicon
2014 Jeep Wrangler JK Unlimited Rubicon
2015 Jeep Wrangler JK Unlimited Rubicon
2016 Jeep Wrangler JK Unlimited Rubicon
2017 Jeep Wrangler JK Unlimited Rubicon
Unlimited Sahara
2007 Jeep Wrangler JK Unlimited Sahara
2008 Jeep Wrangler JK Unlimited Sahara
2009 Jeep Wrangler JK Unlimited Sahara
2010 Jeep Wrangler JK Unlimited Sahara
2011 Jeep Wrangler JK Unlimited Sahara
2012 Jeep Wrangler JK Unlimited Sahara
2013 Jeep Wrangler JK Unlimited Sahara
2014 Jeep Wrangler JK Unlimited Sahara
2015 Jeep Wrangler JK Unlimited Sahara
2016 Jeep Wrangler JK Unlimited Sahara
2017 Jeep Wrangler JK Unlimited Sahara
Unlimited X
2007 Jeep Wrangler JK Unlimited X
2008 Jeep Wrangler JK Unlimited X
2009 Jeep Wrangler JK Unlimited X
2010 Jeep Wrangler JK Unlimited X
2011 Jeep Wrangler JK Unlimited X
X
2007 Jeep Wrangler JK X
2008 Jeep Wrangler JK X
2009 Jeep Wrangler JK X
2010 Jeep Wrangler JK X
2011 Jeep Wrangler JK X
X-S
2009 Jeep Wrangler JK X-S
Sport
2010 Jeep Wrangler JK Sport
2011 Jeep Wrangler JK Sport
2012 Jeep Wrangler JK Sport
2013 Jeep Wrangler JK Sport
2014 Jeep Wrangler JK Sport
2015 Jeep Wrangler JK Sport
2016 Jeep Wrangler JK Sport
2017 Jeep Wrangler JK Sport
Unlimited Sport
2010 Jeep Wrangler JK Unlimited Sport
2011 Jeep Wrangler JK Unlimited Sport
2012 Jeep Wrangler JK Unlimited Sport
2013 Jeep Wrangler JK Unlimited Sport
2014 Jeep Wrangler JK Unlimited Sport
2015 Jeep Wrangler JK Unlimited Sport
2016 Jeep Wrangler JK Unlimited Sport
2017 Jeep Wrangler JK Unlimited Sport
Islander
2010 Jeep Wrangler JK Islander
Mountain
2010 Jeep Wrangler JK Mountain
Unlimited Islander
2010 Jeep Wrangler JK Unlimited Islander
Unlimited Mountain
2010 Jeep Wrangler JK Unlimited Mountain
2012 Jeep Wrangler JK Unlimited Mountain
70th Anniversary
2011 Jeep Wrangler JK 70th Anniversary
Unlimited 70th Anniversary
2011 Jeep Wrangler JK Unlimited 70th Anniversary
Unlimited
2012 Jeep Wrangler JK Unlimited
Unlimited Altitude
2012 Jeep Wrangler JK Unlimited Altitude
Willys Wheeler
2014 Jeep Wrangler JK Willys Wheeler
Unlimited Willys Wheeler
2014 Jeep Wrangler JK Unlimited Willys Wheeler
Unlimited Hard Rock
2015 Jeep Wrangler JK Unlimited Hard Rock
Sport S
2016 Jeep Wrangler JK Sport S
Unlimited Sport S
2016 Jeep Wrangler JK Unlimited Sport S
2017 Jeep Wrangler JK Unlimited Sport S
