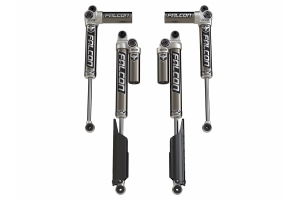

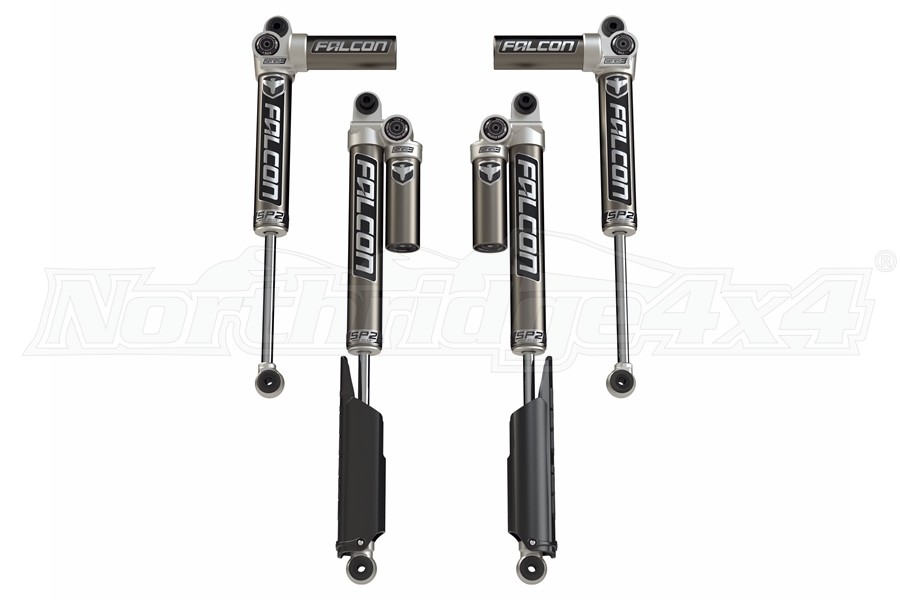

Teraflex Falcon SP2 3.1 Piggyback Shocks - 2in-4.5in

Teraflex Falcon SP2 3.1 Piggyback Shocks 2"-4.5" Features:

SP2 3.3 Fast Adjust Piggyback Shocks - 4

Rear Roost Guards -pair

3-position Fast Adjust Knob

JL corner-specific shock absorbers

OGS (Oil/Gas Separator) prevents cavitation

1,000-hour salt spray corrosion resistance test on all hardware

Patented design

All necessary hardware

TeraFlex Limited 3-year warranty

Upgrade your JL's functionality on the trail with expanded adjustability for specific terrain and handling These Jeep-specific shock absorbers improve your comfort for daily drives and low-speed damping for off-roading. Enjoy more clearance, stability and vehicle control with innovative materials and unique off-road design - no mods necessary. The reservoir is horizontally positioned for optimized fitment that maximizes clearance with large tires during full suspension travel and articulation. The shocks achieve maximum clearance with an offset upper stud that positions the shock body away from the frame. At the rear, the shock eliminates shaft damage from rocks kicked up by tires by positioning the body and reserve at the bottom. The raised track bar brackets to increase the clearance for lifted vehicles. These shocks come in adjustable and non-adjustable versions for different levels of performance and offer increased vehicle stability, improved dynamic roll control, and improved low-speed damping. The smooth, honed internal shock body surface delivers long-term performance with a hard chrome, induction hardened shaft to resist rock damage and corrosion. The shocks come with an oil/gas separation to prevent cavitation and the Series 3 is built tough with a one-piece Teflon bronze piston wear band with O-ring, aluminum construction for superior heat dissipation, 1,000-hour salt spray corrosion resistance on all of its hardware, and a hard anodized billet piston. This series reduces shock fade across all temperatures and delivers superior performance with Red Line full synthetic shock oil. This proprietary formula contains lubricity and anti-wear agents to produce outstanding thermal stability. Designed for daily commuters and serious JL enthusiasts, the Falcon SP2 Fast Adjust Piggyback Shocks provide increased stability and ride quality  Improved dynamic roll control and low-speed damping. Front lower offset eyelet design provides maximum shock body to frame clearance during articulation Fast adjust knob includes 3 settings- soft, custom and firm. The Custom setting incorporates an 8-Position Dial for more precise tuning. SP2 Mode Adjust feature tunes compression and rebound for Soft or Performance settings. The Piggyback design increases oil and gas capacity for reduced heat and flows 6 times more oil than restrictive reservoir hose designs. This also eliminates common leakage issues found in banjo and swivel fittings. Soft mode creates a softer ride by allowing a partial bypass of the main piston, even during aggressive driving for performance handling. Soft mode is recommended for rough terrain and colder weather, and performance for maximum on and off-road handling. Choose between soft and performance modes during install. VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume reduces shock bottoming at full compression or over uneven terrain. See instruction guide for more details.



Falcon Performance Shocks Specifications 2-4.5" Lift JL 2dr:

Rear roost guards prevent shock shaft damage from rocks kicked up by the tires

6061-T6 aluminum alloy shock body

2.3” shock body

Hard anodized 6061-T6 aluminum alloy billet piston

1-piece Teflon bronze piston wear band w/ O-ring

3/4” induction hardened chrome plated shaft



PRODUCT NOTES

Does NOT fit Eco Diesel models.

Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders – See instructions for proper configuration for your application.

• Fitment: JL Wrangler (2-door), 2-4.5” Lift Note: Upgradeable to 3.3 Fast Adjust (# 00-10-33-400-160) via Cartridge Upgrade Kits for quick compression adjustments (sold separately) – contact customer service for details
