Cameras >Brandmotion SummitView Dual Camera Vision System For Factory Display - JK

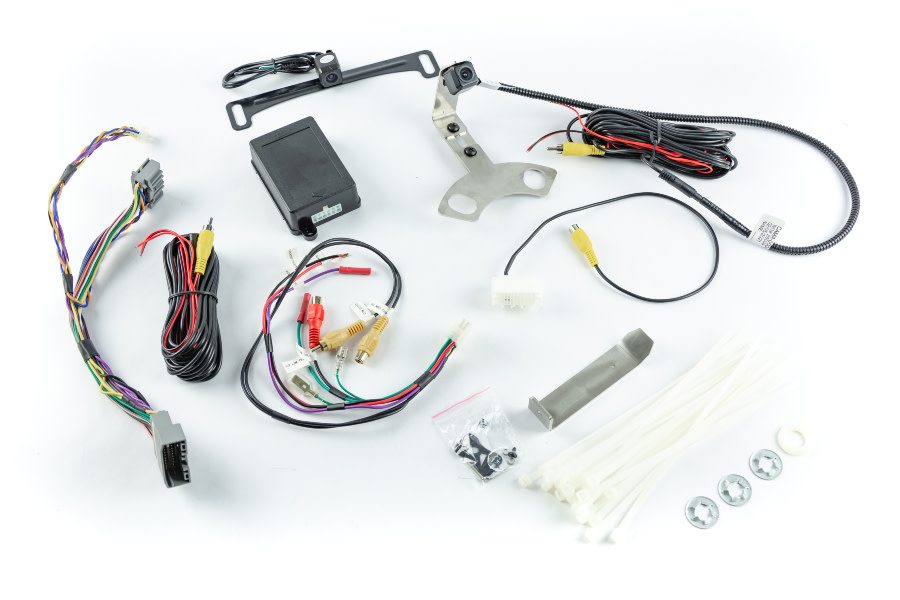

Brandmotion SummitView Dual Camera Vision System For Factory Display

JK

This item is no longer available.

Fits your
2009 Jeep Wrangler JK X

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

Finally – an answer for Jeep Wrangler owners who want to add the safety and practicality of Dual Camera Visibility! Brandmotion’s exclusive line of Jeep Wrangler Dual Camera Vision Systems gives you the edge in offering high quality back-up protection that’s not available anywhere else using our patented Stainless Steel Jeep bracket to guarantee a perfect fit!

Brandmotion’s SummitView™ Dual Camera System provides off-roaders with a forward and rear view. This is especially helpful for hill and rock climbing, but also useful for general off-roading. Drivers who use their Wranglers in urban settings will also appreciate the excellent parking guidance that a front camera provides. Easily toggle between front and rear cameras with provided toggle switch!

Features:
Integration

Brandmotion™ Exclusive Stainless Steel Rear Tire Mount Ensures Perfect Fit

Better Than OEM Design Allows For Seamless Integration

Fully Adjustable Camera Bracket Design To Accommodate Virtually Any Wheel

Includes Dual Input Interface for 6.1″ Factory Display

Front Camera Specifications

High Quality CMOS Camera

Jeep Wrangler Specific Harness

648 x 488 Resolution 480p

0.1 Lux For Better Illumination And A Sharper Image

Parking Gridlines Optional

Format: NTSC

9-16V Operating Voltage Range

Color Image With Automatic White Balance

Electric Auto Iris

150º Horizontal Field of View

100º Vertical Field of View

Waterproof Case With Anti-fog Lens

IP Rating: IP 68

Rear Camera Specifications

High Quality CMOS Camera

22 Foot Harness Length

648 x 488 Resolution 480p

0.1 Lux For Better Illumination And A Sharper Image

Parking Gridlines Standard (Non-removable)

Format: NTSC

9-16V Operating Voltage Range

Color Image With Automatic White Balance

Electric Auto Iris

150º Horizontal Field of View

100º Vertical Field of View

Waterproof Case With Anti-fog Lens

IP Rating: IP 68

Interface Specifications

Adds 2 Inputs (1 If Vehicle Has A Factory Backup Camera)

Gives Ability To Add Front Facing or Turn Signal Activated Camera

Interface Automatically Turns Off Front Facing Video At Speeds Over 7 MPH

Ability To Activate Front Facing Camera By Activating Toggle Switch

No Parking Gridline Overlay

Supports 6.1″ MyGig Factory Display

Compatibility
This kit is designed for virtually any wheel, standard parking gridlines, and the factory 6.1″ display. This kit is designed to work with all MyGig radios, both navigation equipped and non-navigation equipped models. This kit is designed to work with both automatic and manual transmission vehicles. Please see our Rear Vision Application Guide for compatibility questions.

Jeep Wrangler JK 2007-2018 with Factory 6.1″ Display
