Rock Krawler 3.5in X Factor Coilover Long Arm System Lift Kit - JL

Rock Krawler 3.5in X Factor Coilover Long Arm System Lift Kit

JL

Rock Krawler 3.5in X Factor Coilover Long Arm System Lift Kit - JL
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JL 3.5 X Factor Mid Arm Coil Over System was designed for those who want a front coil over system, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment that eliminates the bind found in your JL’s factory lowers, while high misalignment adjustable upper control arms let you precision tune your JL’s caster both front and rear. Rock Krawler’s industry leading triple rate coils give you 3.5 inches of lift to clear up to 40 inch tires, depending on model, and improve the on-road ride over the factory linear rate springs. All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

System Benefits:

  • 2.625” Remote Reservoir Coil Over Front
  • 2.625” Remote Reservoir Shock Rear
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Triple Rate Rear Coil Springs
  • Rear Spring Leveling Pads
  • Lifetime Warranty on All Hard Parts
  • Upgradeable to Rock Krawler JL Long Arm
  • Jeep remains level on all 4 corners
  •

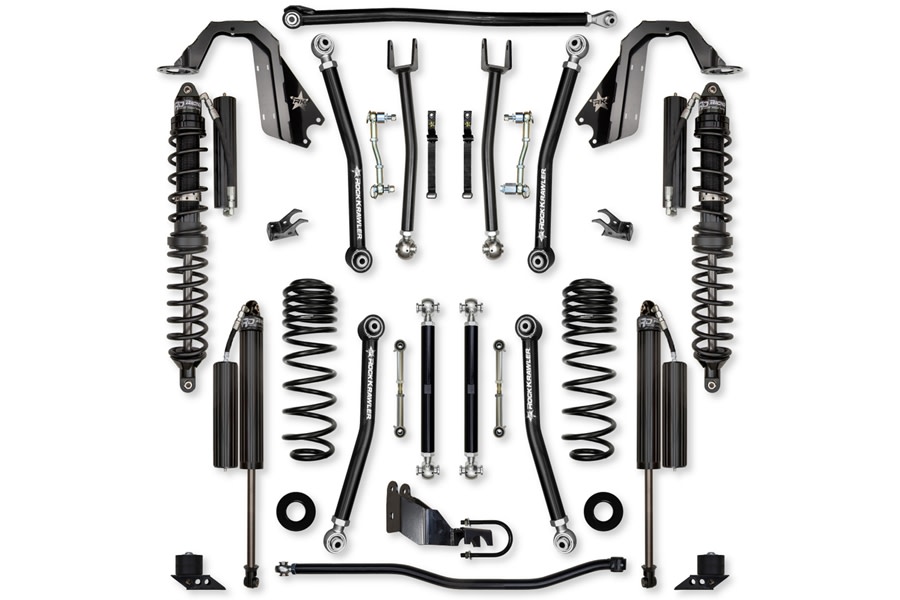

    System Includes:

  • (2) 2.625” remote reservoir front coil overs
  • (2) 2.625” remote reservoir rear shocks
  • (2) Frame side coil over mounts
  • (2) Axle side coil over mounts

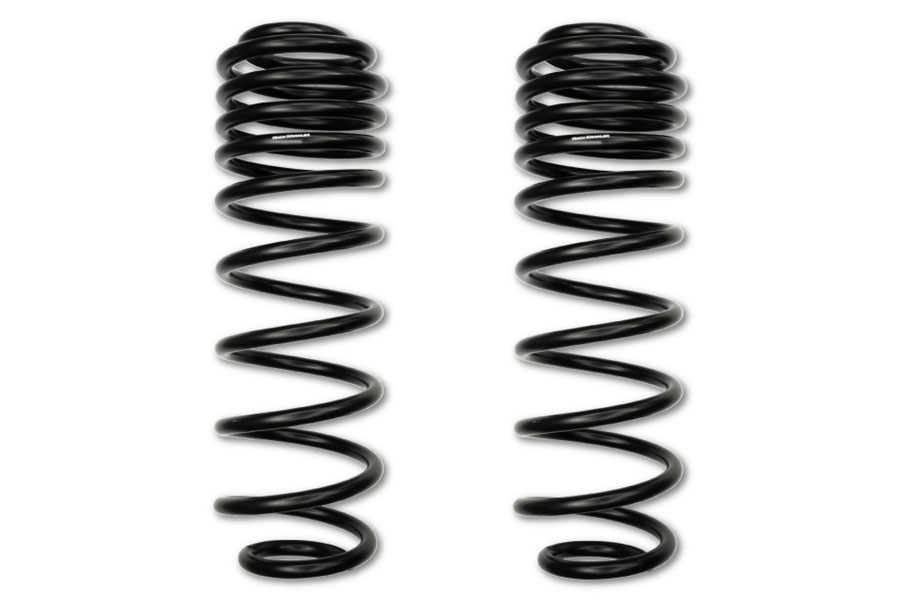

  • (2) Triple rate rear coil springs
  • (2) Front adjustable lower control arms
  • (2) Front adjustable upper control arms
  • (1) Adjustable front track bar
  • (2) Sway bar disconnects
  • (2) Sway bar link relocation brackets
  • (2) Sway bar disconnect straps
  • (2) Rear adjustable lower control arms
  • (2) Rear adjustable upper control arms
  • (2) Rear spring pads
  • (2) Extended rear sway bar links
  • (1) Adjustable rear track bar
  • (1) Bolt-on rear track bar relocation bracket
  •



    Tire Fitment:

  • Sport and Sahara with Full OEM Fenders
  • 37” Tall Tires (3” Bump Stop Height Recommended)
  • Sport and Sahara with Trimmed or High Lined OEM Fenders
  • 38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Full OEM Fenders
  • 37”/38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Trimmed or High Lined OEM Fenders
  • 40” Tall Tires (3” Bump Stop Height Recommended)
  •

    Wheel Fitment:

  • Sport and Sahara Wheel Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 3.5” of Back Spacing
  • Rubicon Fitment Recommendations
  • 37” Tall Tires – Recommend 4.5” of Back Spacing
  • 40” Tall Tires – Recommend 3.5” of Back Spacing
  •

    General Notes:
    *All lift heights based on Sport models
    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29”
    *Requires removal of the OEM shock mount off the frame
    *Requires removal of the OEM shock and spring mount off the axle
    *Requires welding of the new coil over mount on the axle only.

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard
