TeraFlex 70in CRD60 HD Rear Axle w/ Full-Float (Coilover Brackets) - 4.30 - JK

TeraFlex 70in CRD60 HD Rear Axle w/ Full-Float (Coilover Brackets) - 4.30

JK

TeraFlex 70in CRD60 HD Rear Axle w/ Full-Float (Coilover Brackets) - 4.30 - JK
★★★★★
★★★★★
()
Write a Review | Q&A
Part # 3428430We price match! Call 866-601-5340!
We Price Match
$7,022.99
msrp: $7,022.99

Out of stockProduct will ship from manufacturer, average time to ship: 1-2 business days
Qualifies for
free shipping!
Does not fit your
1968 Jeep CJ5 Base
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
TeraflexAuthorized
Dealer

Product Resources

Features & Product Details

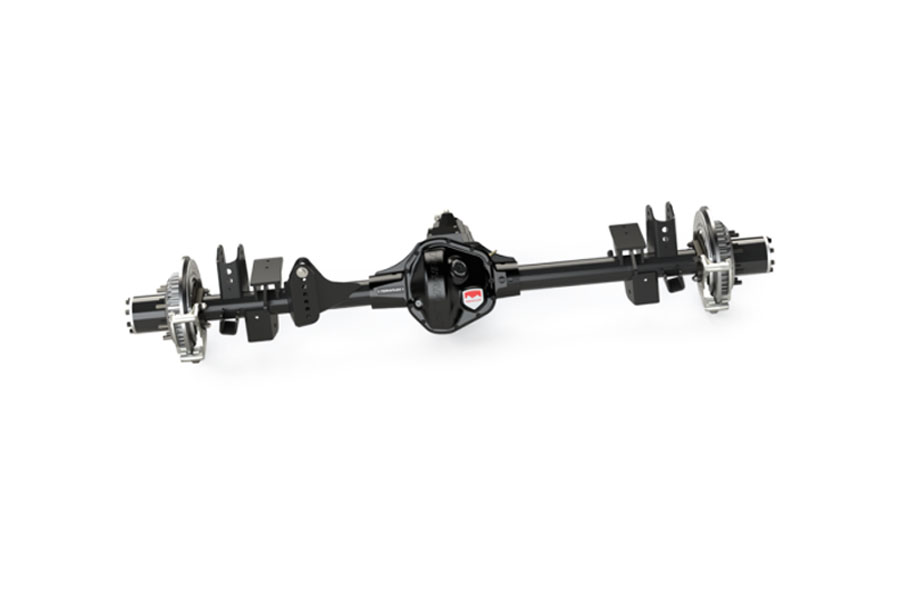

The Tera CRD60 HD Rear Coilover Full-Float Axle Assembly is designed as a direct bolt-on for the TeraFlex Coilover System and is available with pre-installed Super 60 gears, an ARB air locker and full-float axle shafts.



Engineered to integrate seamlessly with TeraFlex JK Coilover Kits, this axle is a true direct bolt-on solution. It features integrated Coilover Mount Brackets and bump-stop strike pads, to handle the increased loads and articulation of a TeraFlex/Falcon Coilover Suspension System.



Available with Super 60 ring & pinion gear ratios of 4.30, 4.88, or 5.38, this 70" wide axle bolts directly into all JK models equipped with a TeraFlex Coilover System—eliminating the fabrication and guesswork typically associated with axle upgrades.



Features

  • Extreme-duty full-float rear axle design delivers maximum strength and durability for hardcore off-road use
  • Designed specifically for Jeep JK Wrangler models with 4–6" lift systems and TeraFlex Coilover Suspensions
  • Integrated coilover brackets provide a true bolt-on installation with reduced fabrication requirements
  • Constant Radius Design (CRD) housing maintains exceptional ground clearance regardless of pinion angle adjustments
  • Heavy-duty 3.25" O.D. x .375" wall DOM axle tubes provide superior strength-to-weight performance
  • 70" wheel-mounting-surface width improves vehicle stability for larger wheel and tire combinations
  • Full-float axle configuration reduces axle shaft stress and enhances reliability under extreme loads
  • 35-spline inner and outer axle shafts deliver increased torque capacity and trail durability
  • High-pinion rear axle design improves driveline geometry and off-road clearance
  • Includes heavy-duty bearing caps to reduce ring and pinion deflection during high-load operation
  • Built-in oil management system improves lubrication and cooling to extend gear and bearing life
  • Oversized outer pinion bearing supports increased torque and severe-duty applications
  • Integrated lower control arm skid plates help protect suspension components on rough terrain
  • Reinforced rear track bar mounts provide added strength and multiple mounting options
  • Includes rear performance big rotor brake kit with 13.5" vented rotors for improved stopping performance
  • High-capacity housing design maximizes oil volume for improved cooling and long-term reliability
  • UV-resistant triple-stage powder coat helps protect against corrosion and harsh environmental conditions
  • Retains factory JK ESP, ABS, and speedometer sensor compatibility for seamless vehicle integration
  • Engineered, designed, and manufactured in the USA using all-new premium components
  • Ideal for rock crawling, overlanding, extreme trail use, and high-horsepower Jeep builds

    •

    Vehicle fitment info: All JK Wranglers with TeraFlex Coilover Suspensions0-6" Lift



    Specs:

  • WMS-WMS: 70"
  • Axle Tube: 3.25" x 0.375"
  • Wheel Bolt Pattern: 8x6.5"

    • Specifications

    Brand: Teraflex
    Axle Style: Full Float
    Bolt Pattern: 8x6.5
    Ratio: 4.30
    Spline Count: 35
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
