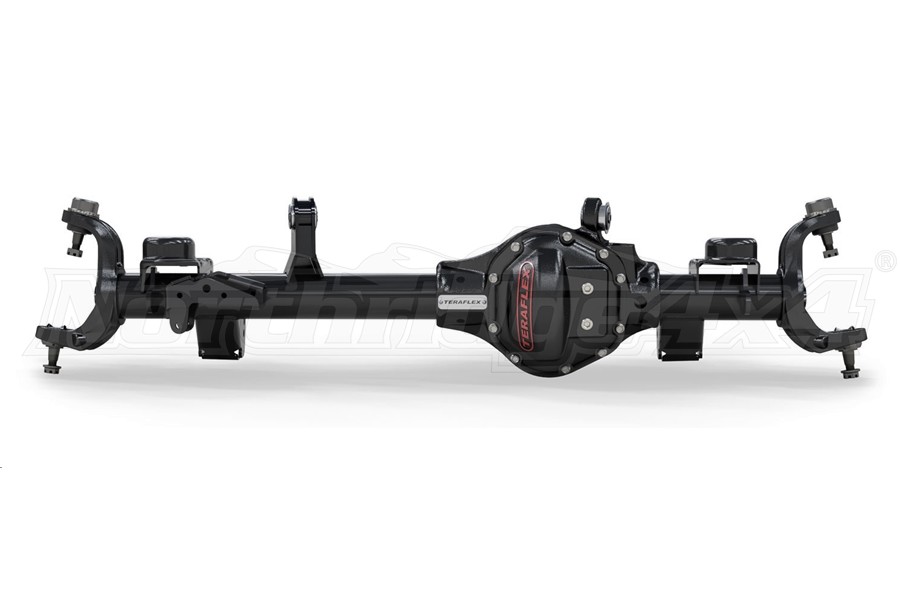

TeraFlex JK Front Tera44 TF44 Replacement Axle Housings include a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles, pre-installed inner seals and upper control arm bushings as well as OEM Rubicon locker, choice of Spicer ring & pinion gear ratio, Spicer bearings and install kits, TeraFlex heavy-duty ball joints, and factory yoke.
Simply swap over axle shafts, outer knuckles, outer axle assembly, unit bearings, brakes and sensors. The comprehensive assembly makes swapping axle housings a true DIY process!
TeraFlex heavy-duty JK Front Tera44 TF44 Replacement Axle Housings are perfect for replacing bent, broken, or damaged front axles in JK Wrangler and Rubicon vehicles. Can also be used as a direct bolt-on upgrade for JK Wrangler owners looking to beef up the front axle’s weak areas.
LIFT HEIGHT: 0-3”
WIDTH: 67” WMS-WMS (stock)
AXLE TUBE: 3.25” x 0.5”
RING & PINION: 4.88
Includes:
ARB air locker
Spicer ring & pinion – 4.88
Spicer bearings & install kits
TeraFlex HD ball joints
Factory yoke
Features & Benefits:
3.25” O.D. x 0.5” wall axle tube increases strength to resist bending & torsion w/ minimal weight increase
Pre-installed inner axle seals
Forged HD inner knuckles w/ greater upper & lower section strength
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover
Asymmetric housing design, for extra-long tube side strength
Smooth radius bottom design to glide over rocks & obstacles
Integrated lower flexarm skid plates
Bottom oil drain hole for simple fluid changes
Premium UV protected triple-stage powder coat process for superior corrosion resistance
1/4”-thick CNC laser cut axle brackets for extreme strength
Integrated factory location upper control arm mount
Pre-installed upper control arm bushings
Reinforced front track bar mount (ties into spring pad) for greater strength
Proper pinion angle for lifted JK applications
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps & lower spring retainers
Retains all JK ESP, ABS, & speedometer sensor capability
100% engineered, designed, & built in the USA
100% new components
1-Year / Unlimited Mileage Warranty
Note:
The TF44 axle is designed to work with non-Rubicon Dana 44 lockers. Please consult the Tera44 axle flow chart prior to placing your order.
Requirements & Recommendations:
Below is a list of Requirements & Recommendations for TeraFlex axle housings as budget and build preference allows.
Questions? Stop scratching your head and contact us! We know our axles AND we’re here to help!
CONTROL ARM UPGRADE
0-3” LIFT: This axle is a direct bolt-on upgrade! Although stock control arms will work at this lift height, aftermarket flexarms may be used if desired – highly recommended w/ a 3” lift.
Front upper (# 1252200) & front lower (# 1252000) TeraFlex JK Sport Flexarms will work w/ 2.5-3” lifts.
Front upper (# 1415520) & front lower (# 1415500) TeraFlex JK adjustable Alpine Flexarms will work w/ 2.5-4” lifts.
Front upper (# 1315520) & front lower (# 1315500) TeraFlex JK adjustable Alpine Long Flexarms will work w/ 3-6” lifts.
INNER AXLE SHAFT UPGRADE
• 0-6” LIFT: REQUIRES aftermarket inner axle shafts to handle the additional power. TeraFlex offers 34.19” passenger side axles (# 304136) & 19.11” driver side axles (# 304120). These shafts MUST be used w/ 2013-2017 JK axle U-joint.
AXLE STUB UPGRADE
0-6” LIFT: High-quality aftermarket chromoly stubs are recommended, though the stock 2013-2017 JK outer axle stubs can be (re)used.
AXLE SHAFT TUBE SEAL UPGRADE
0-6” LIFT: Get serious with HD 0.5” wall seals (# 4354050) or keep it real with standard 0.25” wall seals (# 4354025). Stock seals may also be reused.
STEERING SYSTEM UPGRADE
0-3” LIFT: The JK HD Tie Rod & Drag Link Steering Kit (# 1853900) will do the trick, though the stock steering system may be reused.
BRAKE UPGRADE
0-6” LIFT: Experience a notable difference w/ a TeraFlex Big Brake Kit (# 4303400 or # 4303420) or JK Big Rotor Kit (# 4303480 or # 4303490).
