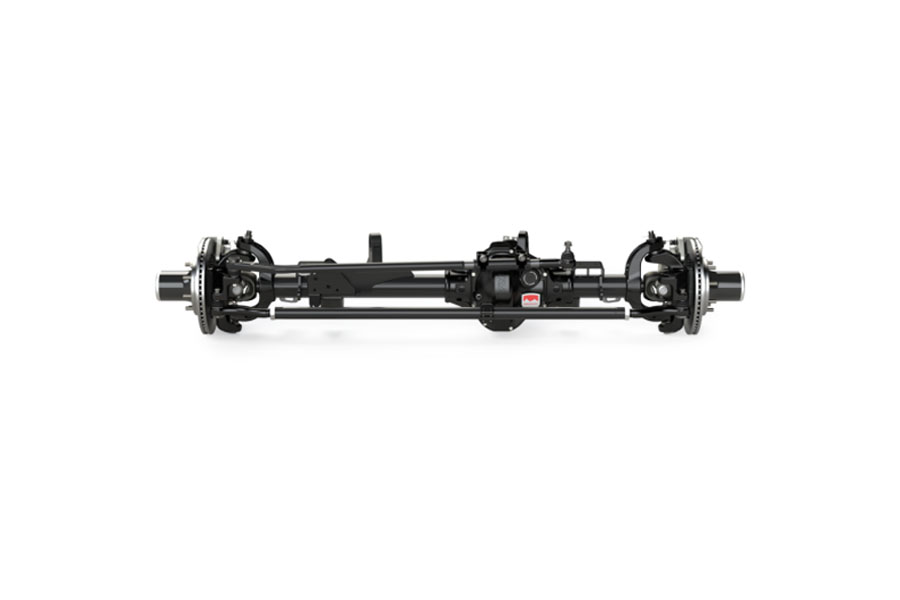

TeraFlex 70in Tera 60 HD Front Axle w/ Locking Hub (Coilover Brackets) - 5.38 - JK

TeraFlex 70in Tera 60 HD Front Axle w/ Locking Hub (Coilover Brackets) - 5.38

JK

TeraFlex 70in Tera 60 HD Front Axle w/ Locking Hub (Coilover Brackets) - 5.38 - JK
★★★★★
★★★★★
()
Write a Review | Q&A
Part # 3618538We price match! Call 866-601-5340!
We Price Match
$11,189.99
msrp: $11,189.99

Out of stockProduct will ship from manufacturer, average time to ship: 1-2 business days
Qualifies for
free shipping!
Does not fit your
1969 Jeep CJ5 Base
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
TeraflexAuthorized
Dealer

Product Resources

Features & Product Details

The TERA60 HD Front Coilover W/Locking-Hub Axle Assembly is designed as a direct bolt-on for the TeraFlex Coilover System and is available with pre-installed Super 60 gears, an ARB air locker, HD Steering and Big Brake kit.



Engineered to integrate seamlessly with TeraFlex JK Coilover Kits, this axle is a true direct bolt-on solution. It features integrated Coilover Mount Brackets, bump-stop strike pads, high-clearance lower control arm brackets, and reinforced upper control arm mounts to handle the increased loads and articulation of a TeraFlex/Falcon Coilover Suspension System.



Available with Super 60 ring & pinion gear ratios of 4.30, 4.88, or 5.38, this 70" wide axle bolts directly into all JK models equipped with a TeraFlex Coilover System—eliminating the fabrication and guesswork typically associated with axle upgrades.



TERA60 HD Front axles also include HD Tie Rod and Drag Link, TeraFlex Big Brake kit, 35 spline axle shafts, sensors, TeraFlex HD wear adjustable Ball Joints and much more.



Features:

  • Coilover mount brackets
  • Bump stop strike pad brackets
  • 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
  • 70" WMS-WMS and 8x6.5" wheel bolt pattern
  • Includes Front Big Brake Kit w/ 13.3" Vented Rotors
  • Fixed spindle mount hub assemblyTera60 specific high-pinion front axle housing design
  • Includes 1350 series pinion yoke 35-spline inner and outer axle shafts
  • Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
  • Oversized outer pinion bearing handles increased torque and high-load conditions
  • High-capacity housing holds maximum amount of oil
  • Asymmetric housing design for extra-long tube side strength
  • Pre-installed inner axle seals
  • HD forged inner knuckles w/ greater upper and lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover
  • Smooth radius bottom design to glide over rocks and obstacles
  • Integrated lower control arm skid plates
  • High-flow oil passages
  • Reinforced front track bar mount (ties into spring pad) for greater strength
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4"-thick CNC laser cut axle brackets for extreme strength
  • Integrating the front upper control arm mounts into the housing increases up travel an additional 2" compared to other aftermarket Dana 60 axles
  • Pre-installed upper control arm bushings
  • Proper pinion angle for lifted JK applications
  • 4-6" Lift features a raised pinion angle and raised track bar bracket (where applicable)
  • Pre-tapped hole on spring perch for bump stop extensions
  • Pre-drilled holes for limit straps and lower spring retainers
  • Retains all JK ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components

    •

    Vehicle fitment info: All JK Wranglers with TeraFlex Coilover Suspensions4-6" Lift



    Specs:

  • WMS-WMS: 70"
  • Axle Tube: 3.25" x 0.375"
  • Wheel Bolt Pattern: 8x6.5"

    • Specifications

    Brand: Teraflex
    Bolt Pattern: 8x6.5
    Locking Hubs: Yes
    Ratio: 5.38
    Spline Count: 35
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
