Clayton Pro Series 3 Link Front Long Arm Upgrade Kit

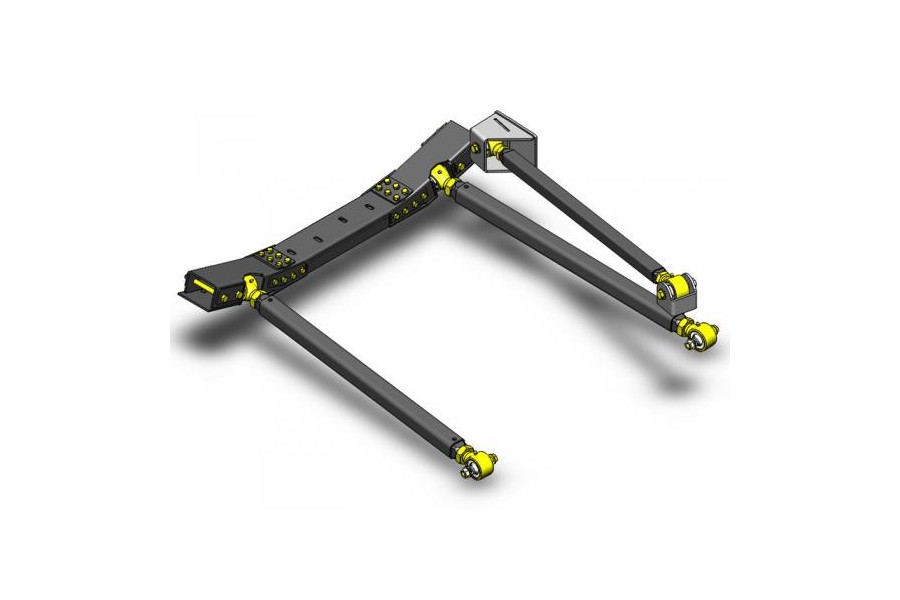

Pro Series 3 link front, JK Long arm system is here! The arms have been upgraded to our Pro Series arms, which means forged johnny joints at both ends for maximum adjustment and the strength you want when running larger tires and heavier axles. Like our standard JK long arm system, we still use a bolt-in 3-piece cross member and added a new 1/4 weld on the frame bracket. Depending on your axle type, we offer an optional front bridge or truss, or simply attach your 3-link axle upper mount to your existing truss. This 3-link front upper arm does come with right-hand and left-hand johnny joints for simple caster angle adjustment.

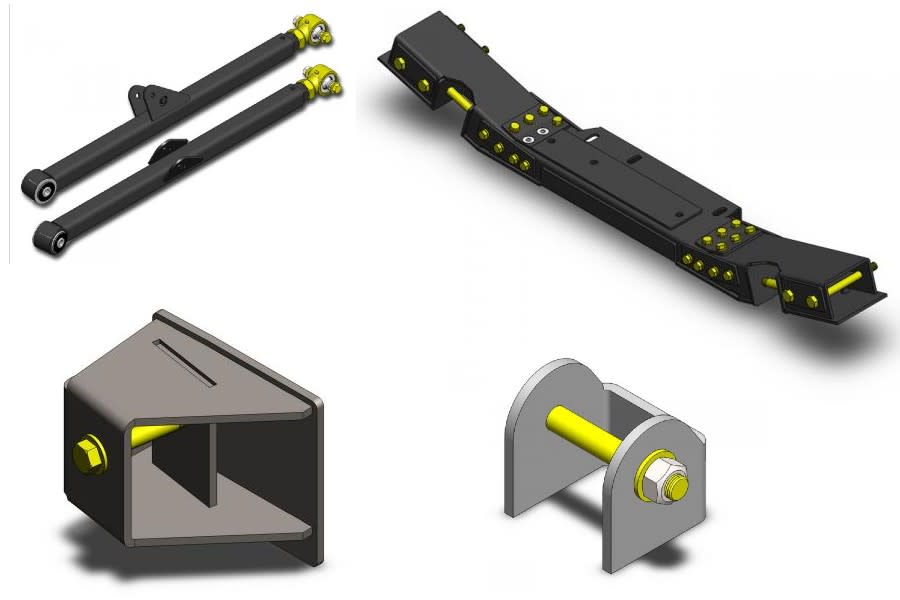

Some key features with the new JK front long arm kit are our bolt-in 3-piece cross member. The cross member bolts into the OEM location and has pockets for the forged 2.5-inch johnny joints, allowing maximum ground clearance. This cross member can be simply bolted in and set up so it can be welded in for the more abusive drivers. Like all other Clayton Off Road cross members, the center section is removable, making any transmission changes simple and can be done without touching any suspension arms. The 3-piece cross member was designed using the latest 3D Solid Works program, CNC laser cut, and CNC bent for maximum strength and accuracy. This kit gives you all the benefits any customer is looking for on and offroad. The longer arms correct all the geometry issues creating a better than factory ride. And our control arms carry our lifetime warranty against bending or breaking, your JK will be ready for any trail you desire.

Note:

1. Welding is required to install this kit.

2. Custom exhaust is also necessary to clear the upper 3-link arm.

3. Front CV Style Driveshaft is required.
