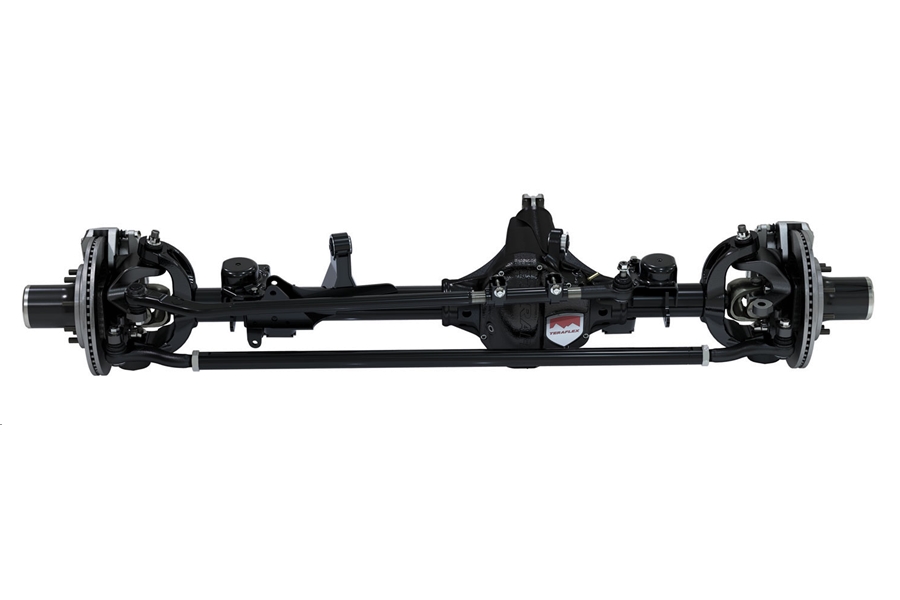

Teraflex Wide Front Tera60 Full Float Axle W/ Locking Hubs, 5.38 R&P and ARB Super 60

The heavy-duty TeraFlex JK Wide Front Tera60 Axle Housing is the ultimate upgrade for the JK Wrangler requiring maximum up travel and suspension compression. By integrating the driver side upper control arm mount into the housing assembly, we have gained an additional 2” of up travel compared to other aftermarket Dana 60 Series replacement axle housings.

Full-float axle hubs with sealed locking hub assemblies and 8x6.5” wheel bolt pattern to tackle the most extreme conditions.

The Tera60 is equipped with the same features included in all of our axles including a heavy-duty housing with heavy-duty axle tubes and bearing caps, forged inner knuckles, high-flow oil passages, bracketry, smooth profile surfaces, and increased cover mounting area. Pre-installed inner seals and upper control arm bushings make the upgrade seamless.

The TeraFlex JK Tera60 Axle Housing is a direct bolt-on upgrade for JK Wrangler owner looking to beef up or replace a bent broken, or damaged stock front axle in JK Wrangler and Rubicon vehicles. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.

LIFT HEIGHT: 0-6”

WIDTH: 70” WMS-WMS (wide)

AXLE TUBE: 3.25” x 0.375”

RING & PINION: 5.38

WHEEL BOLT PATTERN: 8x6.5” (custom)

Includes:

Features & Benefits:

Note:

• Requires driveshaft modification.
