Dynatrac 4.5in EnduroSport Lift Kit (System 2)

JK

Write a Review | Q&A

Part # JK45-1X5310-L2

$4,458.00

Quantity

Ships from Mfg. Available to ship: 3-5 business days

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

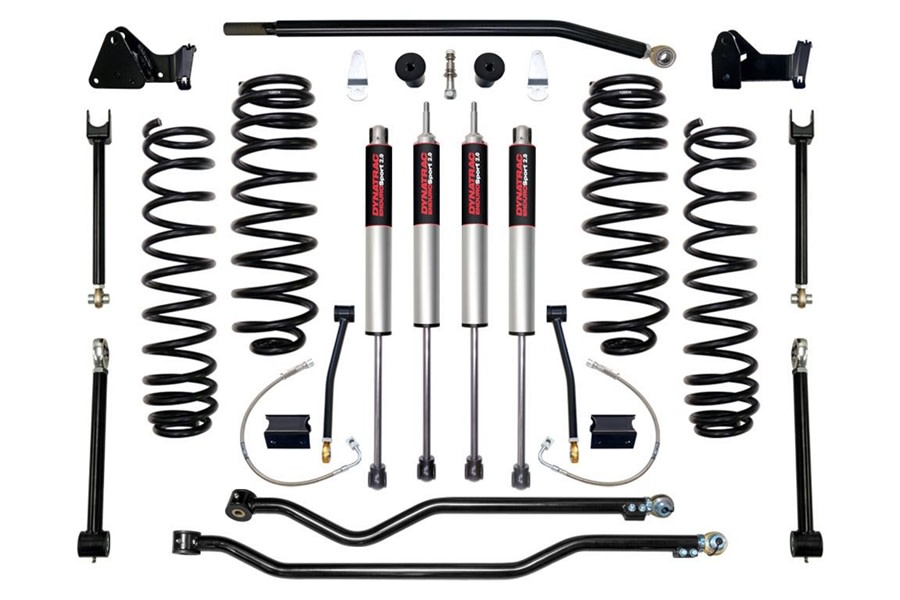

Dynatrac's 4.5" Jeep JK Suspension Lift Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, Dynatrac-equipped JK's can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. The Dynatrac Jeep JK 4.5" Suspension Lift System 2 includes dual-rate coil springs, track bar drop brackets, high-steering components, bumps top spacers, rear brake lines, rear sway bar links, adjustable front upper and rear lower links, front and rear adjustable track bars, and Dynatrac 2.0 EnduroSport shocks.

Tested and tuned, the Dynatrac Jeep JK 4.5" Suspension Lift System 2 offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on-road feel for every day driving. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Features

100% returnable to stock

All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness

Dual-rate coil springs front and rear guaranteed never to sag

High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock

Includes high-performance rebuildable and revalvable Dynatrac 2.0 EnduroSport shocks

Increased wheel travel and articulation over stock

No welding or cutting required

Stainless steel high-steer taper adapter eliminates drilling the factory knuckle

Track bars are on vehicle adjustable designed for optimizing axle postion

Notes

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: 17x8.5" w/ 4.5" Backspace / -6mm Offset

Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)

TECH NOTE: Dynatrac's advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

TECH NOTE: Requuires aftermarket front drive shaft. 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)

TECH NOTE: 2-door models sit slightly taller than 4-door models but remain level when installed.

TECH NOTE: May require rear alignment cam kit.

TECH NOTE: Front driveshaft can hit certain model skid plates at full droop and may require trimming of skid for full articulation.

TECH NOTE: Spanner wrench available to aid in track bar length adjustment.
