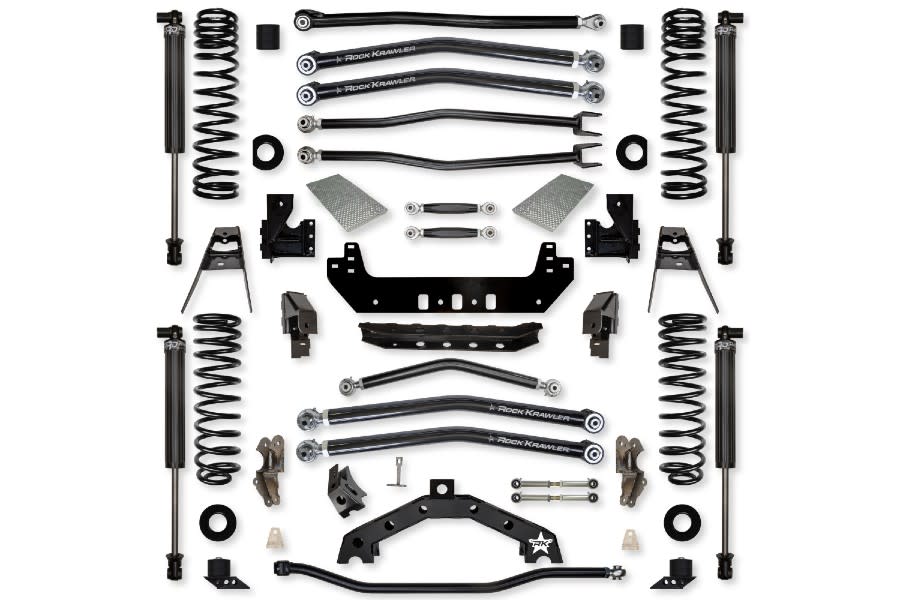

Rock Krawler 3.5in  Adventure-X 'No Limits' Long Arm Lift Kit w/RRD Shocks - Stage 1 - JL 2dr

Rock Krawler 3.5in Adventure-X 'No Limits' Long Arm Lift Kit w/RRD Shocks - Stage 1

JL 2dr

Rock Krawler 3.5in  Adventure-X 'No Limits' Long Arm Lift Kit w/RRD Shocks - Stage 1 - JL 2dr
INCLUDED IN PRICE
$6,104.00
+$ Oversize Shipping Surcharge

You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # JL35AXNL-2S1We price match! Call 866-601-5340!
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler 3.5 Adventure-X Systems is the ultimate in compromise between daily driver/hard core off-roader. The Rock Krawler No Limits systems feature our No limits front sway bar links that allow Rubicon owners to utilize the factory Rubicon sway bar disconnect feature and still achieve full articulation. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad a$$ off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new high clearance axle mounts provide 4.5 inches of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits

  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Full High Clearance Design
  • High Clearance 4 Link Long Arm Front Suspension
  • RRD Twin Tube Shocks Front & Rear
  • High Clearance Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • 4.5Ó Rear Clearance Gain from the X2 Axle Bracket System
  • Adjustable Rear Anti-Squat Featuring X2 Geometry
  • Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
  •

    Lift Height:

  • All lift heights are based on stock sport models
  • Sahara add .393" of lift over stock configuration
  • Sport add .787" of lift over stock configuration
  •

    Tire Fitment:

  • Sport and Sahara with Full OEM Fenders
  • 37in Tall Tires (3in Bump Stop Height Recommended)
  • Sport and Sahara with Trimmed or High Lined OEM Fenders
  • 38in Tall Tires (3in Bump Stop Height Recommended)
  • Rubicon with Full OEM Fenders
  • 37in/38in Tall Tires (3in Bump Stop Height Recommended)
  • Rubicon with Trimmed or High Lined OEM Fenders
  • 40in Tall Tires (3in Bump Stop Height Recommended)
  •

    Wheel Fitment:

  • Sport and Sahara Wheel Fitment Recommendations
  • 37in/38in Tall Tires - Recommend 3.5in of Backspacing
  • Rubicon Fitment Recommendations
  • 37in Tall Tires – Recommend 4.5in of Backspacing
  • 40in Tall Tires – Recommend 3.5in of Backspacing
  •

    Shock Notes:

  • Generic Front Shock Length – 18-19" Collapsed/ 30" Maximum Extended
  • Generic Rear Shock Length - 20-21" Collapsed/ 32” Maximum Extended
  •

    General Notes:

    *All lift heights based on Rubicon Models For 2 Doors

    *XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.

    *If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.

    *If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.

    *Requires aftermarket fuel tank or relocation of factory fuel tank.

    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29in

    *Requires welding of the Front and Rear Long Arm Mounts

    *Requires removal of the OEM frame rear control arm mounts

    *Requires removal of the OEM axle side rear lower control arm and track bar mounts

    *Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts

    *Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard
