JKS JSPEC 2.5in HD Springs Suspension System

Building on the all new Jeep Wrangler JL platform the engineers at JKS Manufacturing have developed the Jspec 2.5" J-Rated System to giving your JL the upper hand out on the trail with clearance for 35" tires. Engineered to maintaining on-road comfort and handling while improving offroad capability, these new 2.5" J-Rated Systems build on JKS's legacy of innovative solutions building a true dual purpose platform ready for your next adventure.

In the rear these 2.5" J-Rated Systems utilize a pair of standard or HD coil spring along with extended length rear sway bar links to correct sway bar operating angle. The rear axle is repositioned using a heavy duty rear track bar bracket designed to key off the factory bracket for more strength while centering the rear axle under your JL. Additionally rear bump stop extensions are supplied as well as a matching set of Jspec gas shocks or FOX 2.0 adventure series shocks to round out this package. Improve not only your new Wrangler JL’s appearance, but its offroad capability and on-road comfort with this new Jspec 2.5” J-Rated system from JKS Mfg.

**Rubicon

37x12.50 on 17x9 or larger diameter w/5” back spacing. Some modification maybe required (35x12.50 no additional modification)

**Non-Rubicon

35 x 12.50 on 17x9 or larger diameter w/5” back spacing. Some modification maybe required (33x12.50 no additional modification required)

***NOTES***

Front bumper with winch should use HD front springs

Full size rear spare tire, or aftermarket tire carrier with full size spare should use HD rear springs

Stock wheels cannot be reinstalled without wheel spacers

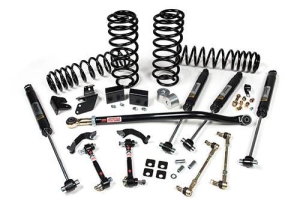

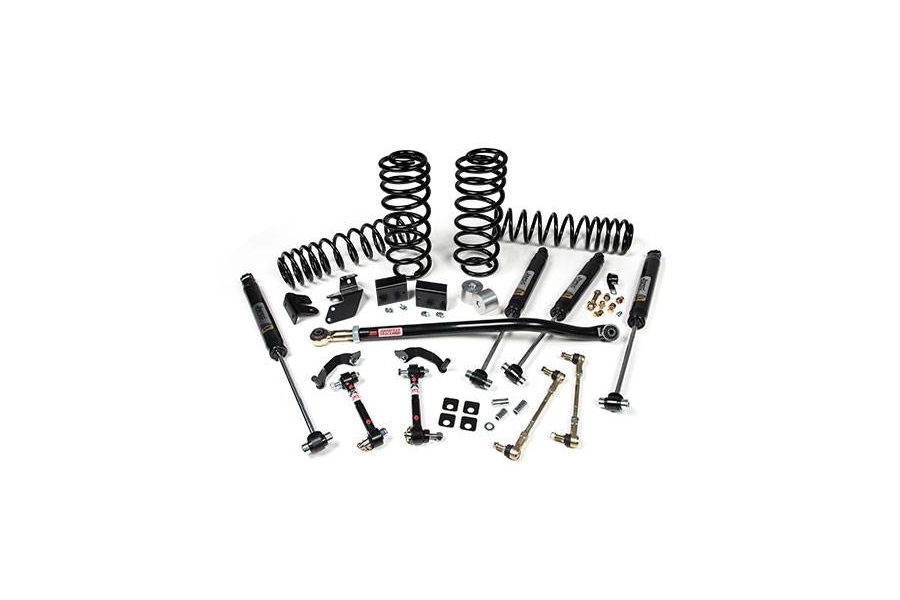

 - Heavy Duty Front/Rear dual rate coils springs

 - Front/Rear Spec gas shocks

 - JKS Mfg front adjustable track bar

 - JKS Mfg front sway bar quicker disconnects w/ retention brackets

 - Front caster cam locks

 - Front/Rear bump stop extensions

 - Rear extended sway bar links

 - Rear track bar bracket
