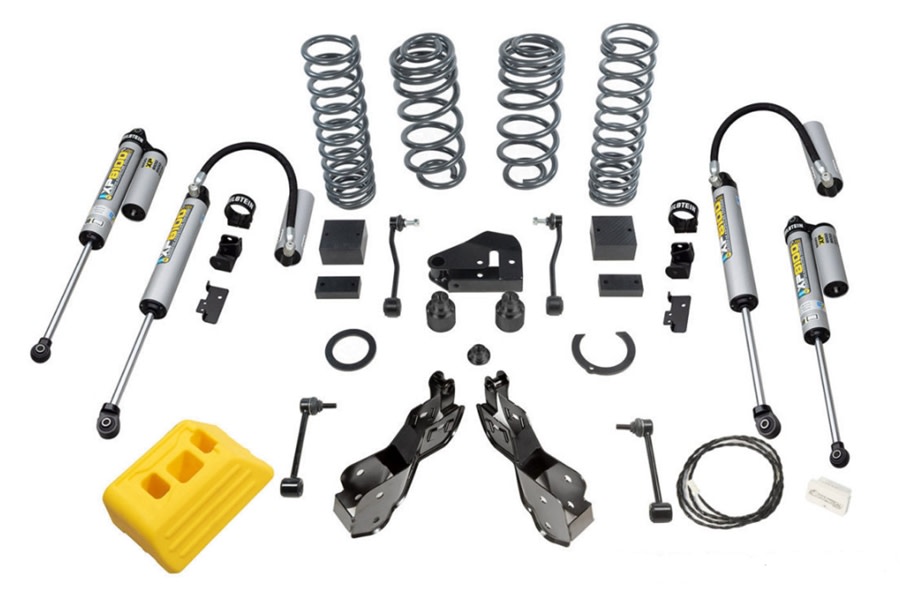

AEV 2.5in DualSport XP Lift Kit - JL 2Dr

AEV 2.5in DualSport XP Lift Kit

JL 2Dr

AEV 2.5in DualSport XP Lift Kit - JL 2Dr
INCLUDED IN PRICE
$3,266.74
$10
Off
(Price as configured)

You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # N0722185AAWe price match! Call 866-601-5340!
ANY QUESTIONS?

Product Resources

Features & Product Details

AEV first introduced OE-level suspension engineering to the aftermarket over a decade ago. We are still building on that legacy today and also broadening our spectrum of suspension performance with the DualSport XP Suspension System for the JL Wrangler.

The DualSport XP Formula

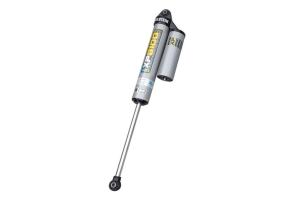

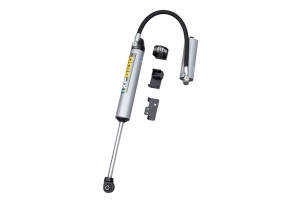

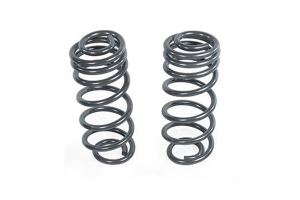

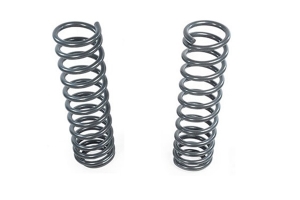

As a true, expedition-ready suspension system, coil spring and shock tuning was essential to provide the optimal balance of load carrying capacity and ride quality that customers have come to expect from AEV. The DualSport XP Suspension System includes a set of our frequency-tuned, triple-rate coil springs to provide 2.5-3” of additional front and rear ride height. The JL Wrangler is equipped from the factory with a very soft coil spring and a relatively stiff shock package, which is not ideal for expedition travel when heavier cargo loads are introduced. For this reason, we went with progressive rate coil springs (available in standard load or high capacity) for additional load handling capability and then paired them with set of 66mm (2.6″) AEV-tuned Bilstein 8100 series reservoir shocks for the ultimate level of performance off-road, especially over rough terrain at higher speeds. The AEV/Bilstein coil spring and shock combination used in this suspension not only increases both up travel and down travel but also provides better articulation as well as improved off-road speed potential and bottoming control.

  • 2.5” Standard Load Coil Springs are optimized for an AEV-spec Wrangler with typical gear/cargo inside. This means the ideal ride height, handling and overall performance will be achieved on a vehicle with steel bumpers, winch, full-size spare and recovery gear (+0-400 lbs. over factory weight).
  • With the AEV DualSport XP Suspension System installed, the JL Wrangler’s front and rear suspension geometry is optimized throughout the entire range of motion, giving you the sporty, responsive handling characteristics that AEV suspension systems are known for. To optimize the JL Wrangler’s front and rear suspension geometry throughout the entire range of motion, giving you the sporty, responsive handling characteristics that AEV suspension systems are known for.

    The frontend geometry is improved with a pair of AEV’s heavy duty, stamped control arm geometry correction brackets are included for an improved ride quality and reduced nosedive under hard braking.  A rear track bar tower extension is included to correct the rear roll center while also generating a better turn-in response. Extended length front and rear sway bar end links compensate for the additional lift height, while new front and rear bump stop spacers improve bumper/axle contact under full articulation and jounce. Due to this suspension system’s lower lift height, there is no need to swap out any of the OE track bars, control arms or steering components.



    Note: AEV XP8100 Shocks are NOT compatible with the Gen 1 AEV RX Front Bumpers that were installed on some early JL350/370 conversions. To clarify, this does not apply to Gen 2 (current model) AEV RX Front Bumpers.

    Specifications

    Brand: AEV
    Kit Package: Yes
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Wrangler JL
    Freedom
    2023 Jeep Wrangler JL Freedom
    Freedom I4 Turbo
    2023 Jeep Wrangler JL Freedom I4 Turbo
    Rubicon
    2018 Jeep Wrangler JL Rubicon
    2019 Jeep Wrangler JL Rubicon
    2020 Jeep Wrangler JL Rubicon
    2021 Jeep Wrangler JL Rubicon
    2022 Jeep Wrangler JL Rubicon
    2023 Jeep Wrangler JL Rubicon
    2024 Jeep Wrangler JL Rubicon
    Rubicon I4 Turbo
    2018 Jeep Wrangler JL Rubicon I4 Turbo
    2019 Jeep Wrangler JL Rubicon I4 Turbo
    2020 Jeep Wrangler JL Rubicon I4 Turbo
    2021 Jeep Wrangler JL Rubicon I4 Turbo
    2022 Jeep Wrangler JL Rubicon I4 Turbo
    2023 Jeep Wrangler JL Rubicon I4 Turbo
    2024 Jeep Wrangler JL Rubicon I4 Turbo
    Rubicon X
    2024 Jeep Wrangler JL Rubicon X
    Rubicon X I4 Turbo
    2024 Jeep Wrangler JL Rubicon X I4 Turbo
    Sport
    2018 Jeep Wrangler JL Sport
    2019 Jeep Wrangler JL Sport
    2020 Jeep Wrangler JL Sport
    2021 Jeep Wrangler JL Sport
    2022 Jeep Wrangler JL Sport
    2023 Jeep Wrangler JL Sport
    2024 Jeep Wrangler JL Sport
    Sport I4 Turbo
    2018 Jeep Wrangler JL Sport I4 Turbo
    2019 Jeep Wrangler JL Sport I4 Turbo
    2020 Jeep Wrangler JL Sport I4 Turbo
    2021 Jeep Wrangler JL Sport I4 Turbo
    2022 Jeep Wrangler JL Sport I4 Turbo
    2023 Jeep Wrangler JL Sport I4 Turbo
    2024 Jeep Wrangler JL Sport I4 Turbo
    Sport S
    2018 Jeep Wrangler JL Sport S
    2019 Jeep Wrangler JL Sport S
    2020 Jeep Wrangler JL Sport S
    2021 Jeep Wrangler JL Sport S
    2022 Jeep Wrangler JL Sport S
    2023 Jeep Wrangler JL Sport S
    2024 Jeep Wrangler JL Sport S
    Sport S I4 Turbo
    2018 Jeep Wrangler JL Sport S I4 Turbo
    2019 Jeep Wrangler JL Sport S I4 Turbo
    2020 Jeep Wrangler JL Sport S I4 Turbo
    2021 Jeep Wrangler JL Sport S I4 Turbo
    2022 Jeep Wrangler JL Sport S I4 Turbo
    2023 Jeep Wrangler JL Sport S I4 Turbo
    2024 Jeep Wrangler JL Sport S I4 Turbo
    Willys
    2022 Jeep Wrangler JL Willys
    2023 Jeep Wrangler JL Willys
    2024 Jeep Wrangler JL Willys
    Willys I4 Turbo
    2022 Jeep Wrangler JL Willys I4 Turbo
    2023 Jeep Wrangler JL Willys I4 Turbo
    2024 Jeep Wrangler JL Willys I4 Turbo
    Willys Sport
    2022 Jeep Wrangler JL Willys Sport
    2023 Jeep Wrangler JL Willys Sport
    Willys Sport I4 Turbo
    2022 Jeep Wrangler JL Willys Sport I4 Turbo
    2023 Jeep Wrangler JL Willys Sport I4 Turbo
