RockJock High Steer Knuckle Kit for Stabilizer Shock/Track Bar

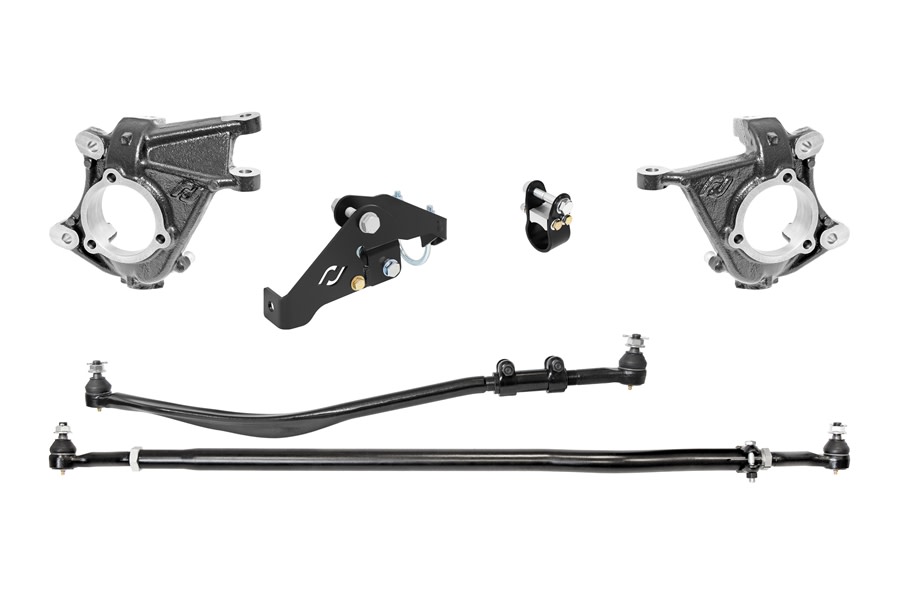

RockJock's High Steer Knuckle Kit for JK Wrangler and Unlimited vehicles is a game changer that provides everything you need to get the job done! The components in this kit are specifically engineered to dramatically improve drivability as well as off-road performance.

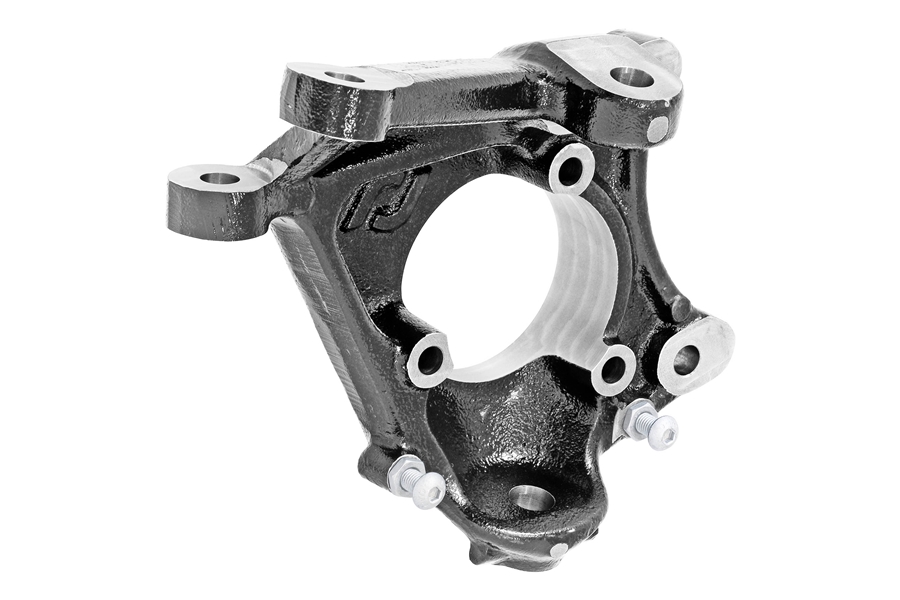

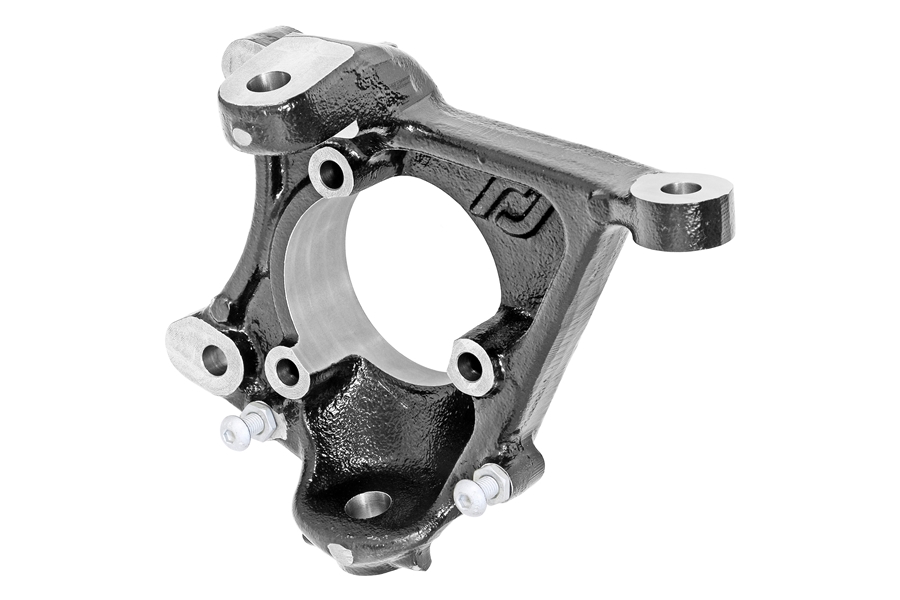

Intended for use on factory axles (Dana 30 and 44), this kit replaces the factory knuckles with our RJ-437100-101 cast iron high steer knuckles that exceed OEM quality and strength. Our knuckles raise both the tie rod and the drag link 2 3/4 in., moving the rods out of the way of rocks and helping to restore factory steering geometry for improved drivability and overall road comfort on a lifted rig. Additionally, the new knuckles push the tie rod outward, away from the axle slightly, allowing for tighter (JL/JT) steering angle over that of stock JK and 1 ton axles. 2 adjustable steering stop locations (fore and aft of axle centerline) for full lock-to-lock adjustability ease the strain on steering components at full lock.

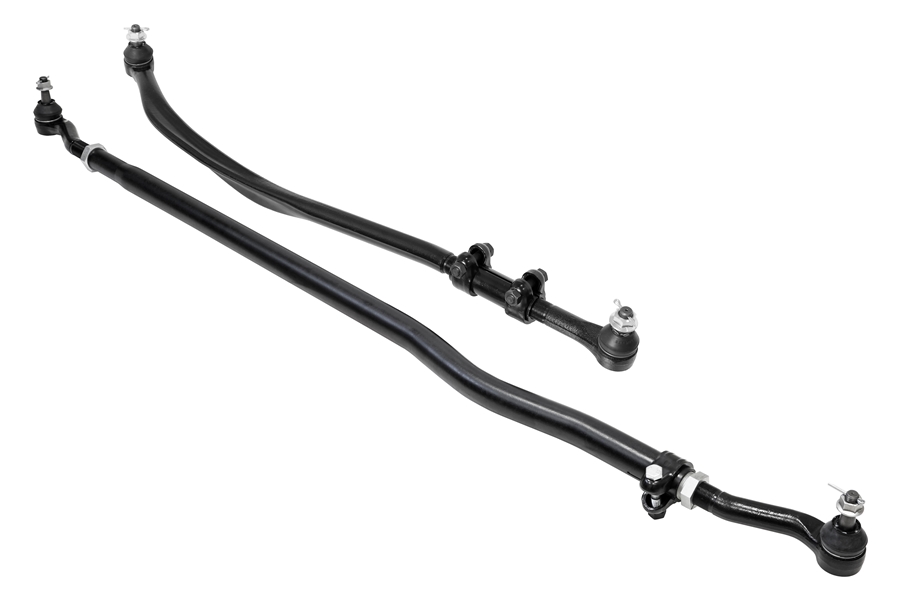

Our Currectlync steering included in this kit features our revolutionary high articulation JK-9704DL-T forged chromoly drag link that incorporates a unique organic shape with many compound curves that can only be achieved via forging, resulting in maximum up-travel capabilities. Our RJ-432103-101 tie rod is a 42mm (1 5/8 in.) diameter chromoly tube. All Currectlync steering ends are forged steel and comparable in size to those found on modern 1-ton trucks.

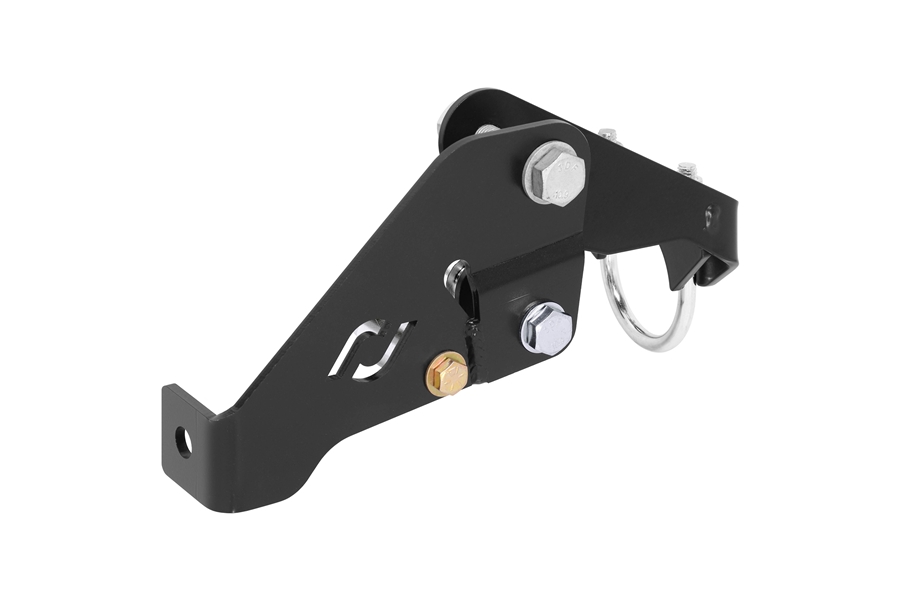

Given the dramatic geometry changes vehicle lifts impose, this kit includes our RJ-431110-103 fully integrated trac bar relocation and steering stabilizer shock mount raised 2 in., and corrects it's geometry to prevent bump steer, as well as providing you with a solid mounting point for a JL/JT spec. steering stabilizer shock (allowing for more steering angle).

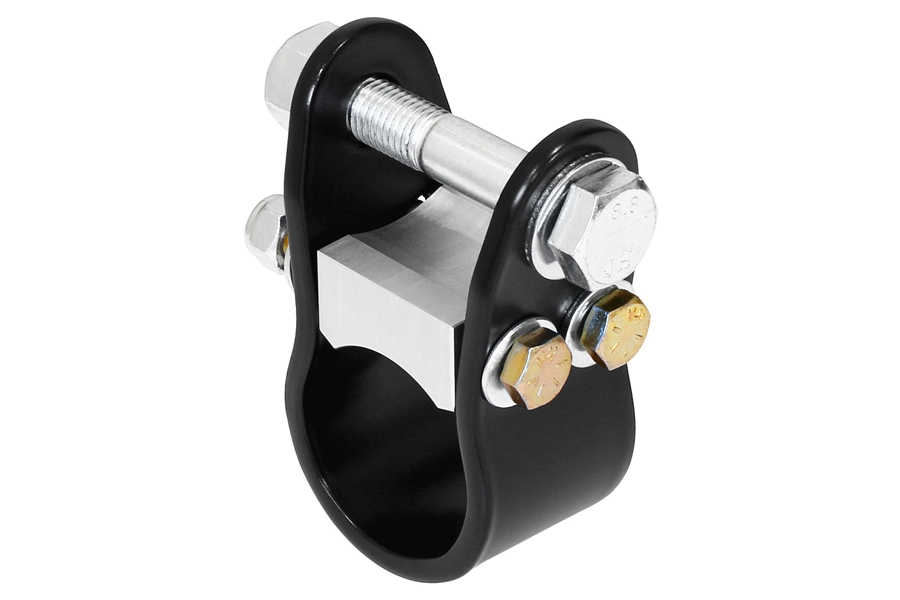

Also provided is our RJ-441002-101 fabricated steel steering stabilizer shock tie rod clamp that easily installs onto the 42mm (1 5/8 in.) tie rod tube, allowing for full adjustability and an easy hook-up point for the other end of your shock.


The new knuckles allow for all other factory outer components to be retained, including ball joints, unit bearings, outer axles, brakes and dust shields. We highly recommend the use of our RJ-9120FJKF forged chromoly organically shaped front trac bar and our RJ-107101-101 fully adjustable front bump stop kit to ensure that all components nest together for maximum up-travel, as engineered.


Kit Fits:

*Fits all listed vehicles below, granted they retain the factory front differential, or any aftermarket differential that features factory spec. inner C-knuckles.

Kit Includes:

Fitment Specs.:

Notes:
