Off Road Only SwayLOC Rear Sway Bar - Manual

SwayLOC for your Jeep Rear. SwayLOC is the original dual-rate sway bar that provides different control rates for off-road and on-road use.

SwayLOC improves balance and control while providing full articulation during off-road use. It also delivers near OEM ride quality during on-road use that is firmer than the stock sway bar.

The dual rates are achieved using two concentric torsion bars. SwayLOC uses a simple latching mechanism to easily change between off-road and on-road use without having to struggle with disconnect links or having to be on level ground.

The proven cam latching system guarantees that SwayLOC engages in the correct position for on-road use and disengages for off-road use when chassis flex releases pressure on the latch.
The Manual Flip a Lever version is simply that, flip the lever on the latch rearward sets the latch to disengage for low off-road resistance. Turning it off sets it to engage for high on-road resistance.

The spring in the latch allows you to select the operation by flipping the lever and the spring will pull the latch open or slide engaged when it should.

The remote-controlled version works using an air operated latch (1). The latch is controlled by an in-cab switch. Turning on the lighted in-cab toggle switch automatically sets the latch to disengage for low off-road resistance.

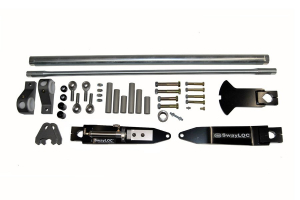

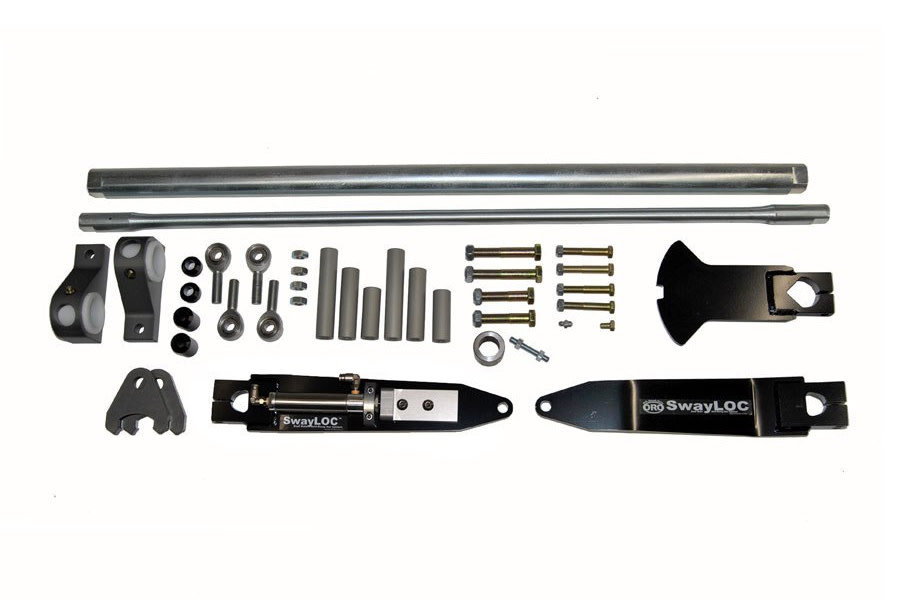

This kit comes with mounting brackets which mount to the side of the frame encompassing the 2 mounting bolts for the rear bumper side mounting bracket.

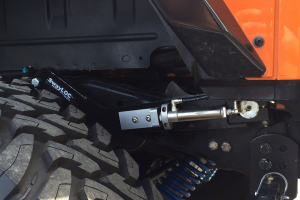

There is some drilling required to add the remaining hardware to mount. The torsion bars are positioned above the frame rail, in the void space between the jack storage compartment and the rear tool box/sub-woofer compartment.

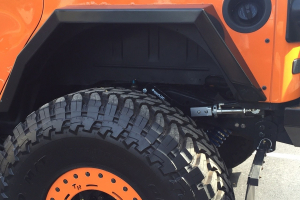

The arms come forward and linkage attaches to the same tab on the rear axle as the stock rear sway bar.
If your Jeep is heavy, or have a rack on the roof, this will help drastically in controlling the body roll of the JK.


Notes
1. JK’s with aftermarket rear bumpers that have mounting plates which use the same 2 mounting bolts on the side of the frame may need to be modified.
2. Rear SwayLOC requires 4.5 inch minimum back spacing wheels
