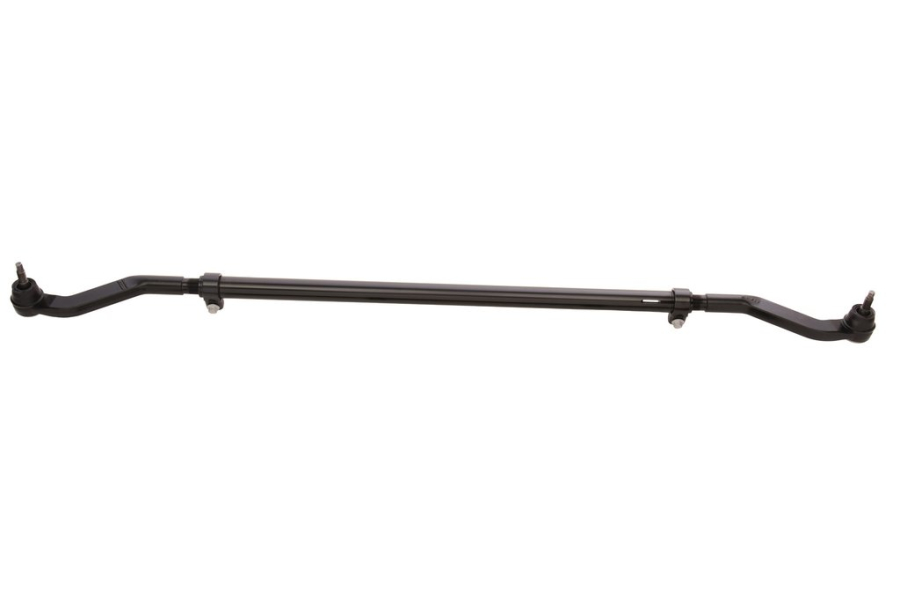

Steer Smarts Yeti Extreme Tie Rod Assembly - JK

MODEL # SSS78065001
Manufacturer Part # 78065001

$379.99

24
hours
In stock! Ships same day
Qualifies for free shipping!


Share:
Buy as a package deal and save:
Steer Smarts Yeti Extreme Steering Linkage Kit ( Part Number:SSS78067001)
Steer Smarts Yeti Extreme Steering Linkage Kit - JK
$759.98
View Product
See (3) package deals that contain this product
Specifications

Brand: Steer Smarts
Color: Black
Ends Included: Yes
Heat Treated: Yes
Made In: USA
Material: Steel
QTY: 1

Mfgr. Warranty: Limited Lifetime Warranty
Condition: New Product
Return Policy:
Standard
Description

This EXTREME Tie Rod Assembly is a complete bolt on Linkage. No modifications of the knuckles is required, Tie Rod Assembly bolts to the factory tapered holes.  Draglink fits all left hand drive JK Wrangler models including Rubicon and Unlimited with factory production 16 inch wheels.

Note: This linkage requires a 1.625 diameter damper bracket that is not included.



FEATURES

YETI XD TIE ROD ASSEMBLY:


·         Easy bolt-on installation.

·         Engineered for proper clearance to other chassis components to eliminate interferences.

·         MADE IN THE USA

BALL JOINTS:


·         30mm 1 1/2 Ton ball joints designed specifically for the JK.

·         Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

·         Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.

·         Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

·         High quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

·         Fully greaseable.

TIE ROD ENDS:

·         Powder coat over E-coat for a long lasting appearance under harsh conditions.

·         External threads are e-coated for durability and long term serviceability.

·         Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength.

·         Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength.

·         Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

·         Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

ADJUSTER TUBE:

·         Tie Rod adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

·         Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

·         Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle.

·         Internal threads and tube are also e-coated for long term serviceability.

* Tie Rod fits all left hand drive JK Wrangler models 2007 to 2017 including Rubicon and requires a 1 5/8" diameter damper bracket that is not included. Check out the YETI XD Damper Bracket.

Note: A minimum of 17”wheels is recommended.

This product has no user uploaded media. You can upload your photo or video of your install by posting a review.

No questions have been asked about this product.
Jeep Wrangler JK
Rubicon 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017Unlimited Rubicon 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017Sahara 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017Unlimited Sahara 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017Unlimited X 2007, 2008, 2009, 2010, 2011X 2007, 2008, 2009, 2010, 2011X-S 2009Islander 2010Mountain 2010Sport 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017Unlimited Islander 2010Unlimited Mountain 2010, 2012Unlimited Sport 2010, 2011, 2012, 2013, 2014, 2015, 2016, 201770th Anniversary 2011Unlimited 70th Anniversary 2011Unlimited 2012Unlimited Altitude 2012Unlimited Willys Wheeler 2014Willys Wheeler 2014Unlimited Hard Rock 2015Sport S 2016, 2017Unlimited Sport S 2016, 2017
