Icon Vehicle Dynamics Stage 2 Adjustable Coilover Conversion System 1.75-3.00in

MODEL # IVDK25002
Manufacturer Part # K25002

$4,636.60

MSRP: $4,868.43

1-2
weeks
Ships within 1-2 weeks
Qualifies for free shipping!
Fits your 2010 Jeep Wrangler JK Rubicon



Share:

Specifications


Brand: Icon Vehicle Dynamics
Color: Black
Compression Adjustment: Yes
Hardware Included: Yes
Height Adjustable: Yes
Install Method: Bolt On
Lift: 1.75-3.00in
Location: Front and Rear
QTY: 2
Shocks Included: Yes

Mfgr. Warranty: 1 Year
Condition: New Product
Return Policy:
Standard

Description

Overview:

Available as an industry first is the ICON Jeep JK 1.75 – 3” bolt-on and returnable to stock stage 2 coilover conversion system. This system not only offers superior ride quality and performance, but gives you the option to adjust ride height based on how your vehicle is equipped. Included in this system is fabricated front coilover upper & lower mounts, rear upper subframe & lower axle mounts, reservoir mount, 2.0 V.S. Series remote reservoir coilovers, front & rear adjustable track bars, and necessary hardware for proper installation. The ICON system was designed from the ground up for improved suspension handling off road, increased wheel travel over stock, and the best ride quality on the market. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the axles under the Jeep. ICON 2.0 V.S. Series shocks include FK bearings, billet top cap & rod ends, 7/8" shafts, all while increasing the duration of consistent damping over stock regardless of situation. User adjustable ride height, optional compression damping control valve, and secondary spring rate engagement adjustability by the end user makes this kit highly tunable to your personal liking by all skill levels. The ICON JK hydraulic bumpstop kit (22019) is also an option that can be installed with the coilover conversion kit adding wheel control for high speed traversing.

Key Features:

• 100% Returnable to stock

• Adjustable ride height

• Option to adjust secondary spring rate engagement

• Adjustable track bars with PTFE lined FK bearings

• Increased wheel travel over stock

• Vehicle specific tuned shocks for superior performance

• Shock Geometry improves stability

• Sheet metal front shock mount for maximum clearance & clean look

• 100% Made in the USA

• Lifetime Guarantee that Coil Springs Won’t Sag

Tech Info:

• Adjusting kit over 3” will require aftermarket link arms

• High clearance steering ok with proper bumpstop installed (not included)

• Requires aftermarket exhaust that dumps before the rear axle.

• 2012+ models require exhaust extension kit (Part # 22011) for proper front driveline clearance

• No driveline modifications necessary if kit is installed as intended (with or without track bars)

• Compatible with ICON front hydraulic bump stop system

• Front End Alignment Recommended

Wheel & Tire Fitment Info:

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    4.5" Backspace

(wheel spacers required to run factory wheels with an oversized tire)

Aftermarket Tires:     33 – 35” Tall tires.

(Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)

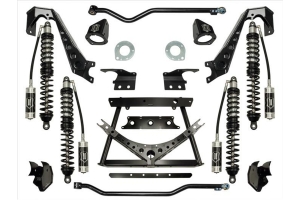

System Components Included:

22003    Front coilover upper & lower mounts

22004    Rear coilover upper & lower mounts, reservoir mount

28006    ICON 2.0 V.S. Series front dual rate coilover shocks with reservoir

28007    ICON 2.0 V.S. Series rear dual rate coilover shocks with reservoir

21020    (QTY - 1)   Jeep JK Front Adjustable Pan Rod Bar Kit

21025    (QTY - 1)   Jeep JK Rear Adjustable Pan Rod Bar Kit

Necessary Hardware

Options:

22018      Jeep JK High-Clearance Steering Stabilizer Kit

22019      Jeep JK Front Hydraulic Bumpstop System

21031      Jeep JK Front Lower Link Kit

21036      Jeep JK Front Upper Adjustable Link Kit

21041      Jeep JK Rear Lower Adjustable Link Kit

21046      Jeep JK Rear Upper Link Kit

22011      Jeep JK Exhaust Extension Kit

22012      Jeep JK Alignment Cam and Knock out Tool Kit

22013      Jeep JK Alignment Cam Kit (Fits in Front Lower or Rear Upper Link Position)

22014      Jeep JK Replacement Front Drive Shaft (2012+)

22016      Jeep JK Replacement Front Drive Shaft (07-11)

22017      Jeep JK Caster Punch Tool Only
