- 3-3.5in Lifts >EVO Manufacturing 4in High Clearance Long Arm Lift Kit - JK

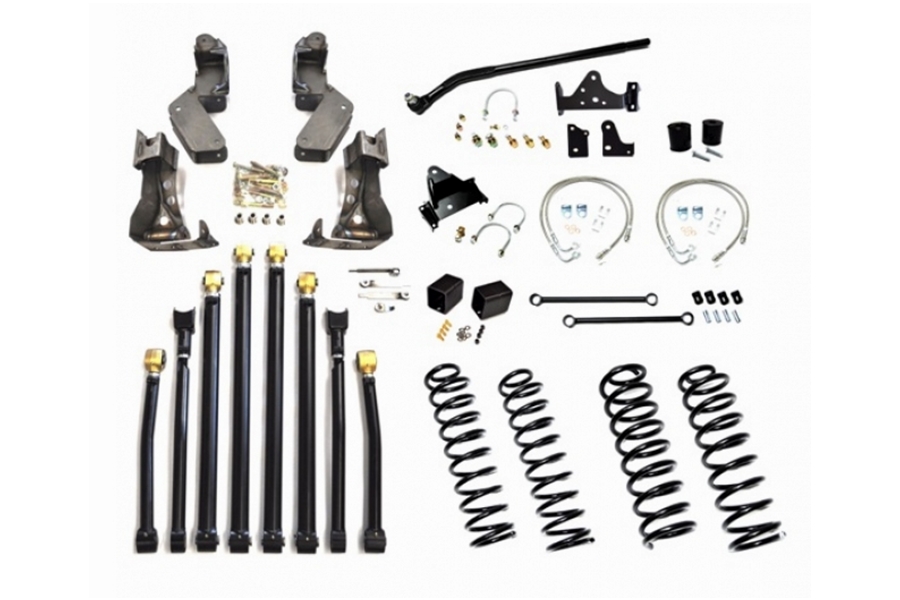

EVO Manufacturing 4in High Clearance Long Arm Lift Kit
JK
Features & Product Details
EVO MFG has proven to be a leader and innovator in suspension performance, creation, and engineering. The EVO MFG HIGH CLEARANCE Long Arm Kit for the JK will certainly prove to land at the top. This system was specifically designed to enhance and surpass the overall handling on and off road of the JK. EVO MFG has considered many of the factors that compile an ultra-high quality and performing system.
On and off Road achievements include High Ground Clearance achieved though sleek bracketry. Greater articulation is achieved through smooth plush ride coil rates, long travel shocks and optional bumpstop heights. Increased stability is achieved through specifically tuned coil rate/shock rates, rigid and adjustable swaybar linkages and optimized roll center corrections both front and rear. The result of the EVO MFG HC Long Arm kit is a vehicle with unsurpassed handling under all circumstances, whether you’re traveling on the highway or combing the Rubicon Trail, rest assured you will be satisfied with this dominant suspension system.
Features:
• EVO1 Adjustors, Full on car adjustability of control arm length, no need to remove control arm to adjust
• No need to remove the gas tank to install
• Proven Johnny Joints
• Ability to retains factory high clearance transmission crossmember
• Optimum Roll Center Correction both front and rear
• Engineered to handle up to a true 14” of Vertical Wheel Travel
• EVO Plush Ride Coil Springs
• Complete with EVO MFG Drag Link Flip Kit, Steering Upgrade
Notes:
2010+ models require exhaust modification which requires some welding
Cutting and Drilling Required for Complete installation
Available with 2 Different bump stop options to specifically tune travel to your vehicle
Aftermarket wheels with 4.5” or less (smaller number) backspacing required.
