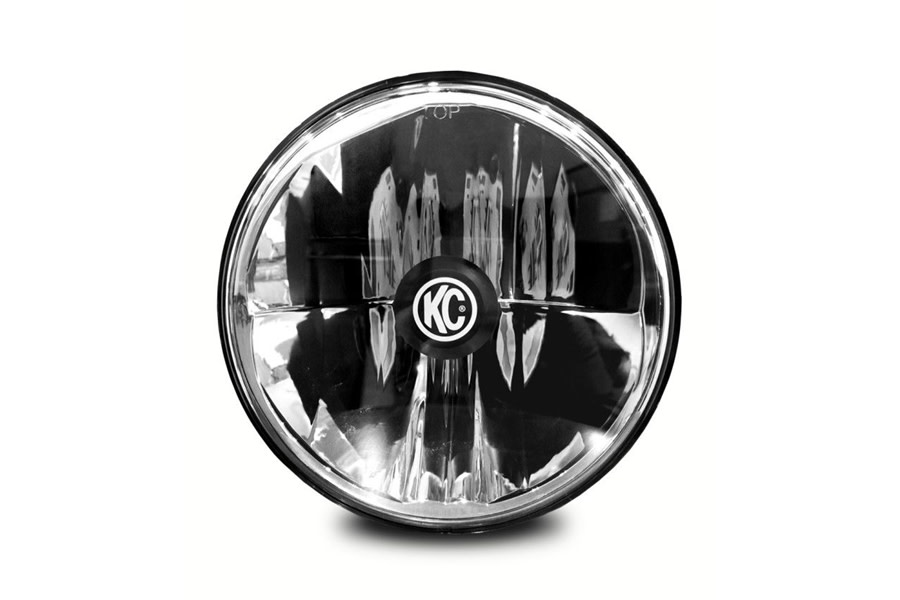

KC HiLiTES 7in Gravity LED DOT Headlight (Driving)

KC HiLiTES Gravity LED 7" Jeep JK Headlight features bright CREE LEDs for DOT compliant Low/High beam for 07-18 Jeep JKs. Die-cast aluminum housing using KC Gravity Reflective Diode with polycarbonate lens for optical clarity and output.

FEATURES
-40W Gravity LED 7" Headlight
-Hard Coated Polycarbonate Lens
-Full Plug-n-Play for 07-18 Jeep JK Wrangler
-Precision Die-Cast Aluminum Housing
-KC Engineered Polished Reflector Optics
-DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)

LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-Compliance: SAE J851 & ECE-R112
-Lux @ 10 Meters: Low- 415 lx, High- 775 lx
-Candela: Low- 41,500 cd, High- 77,500 cd
-Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 18W, High- 22W
-LED Bulb: CREE XHP35 HI and Nichia
-Color Temperature: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 3.72"

PARTS INCLUDED
-Plug and Play H13 Connector for Jeep JK

GRAVITY EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.

DESIGNED FOR DURABILITY
Surrounding our Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
