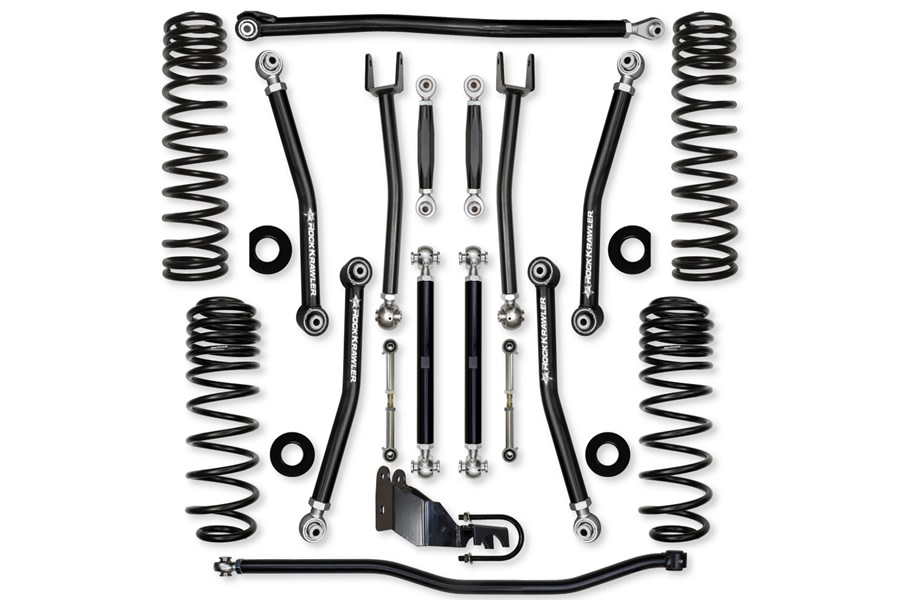

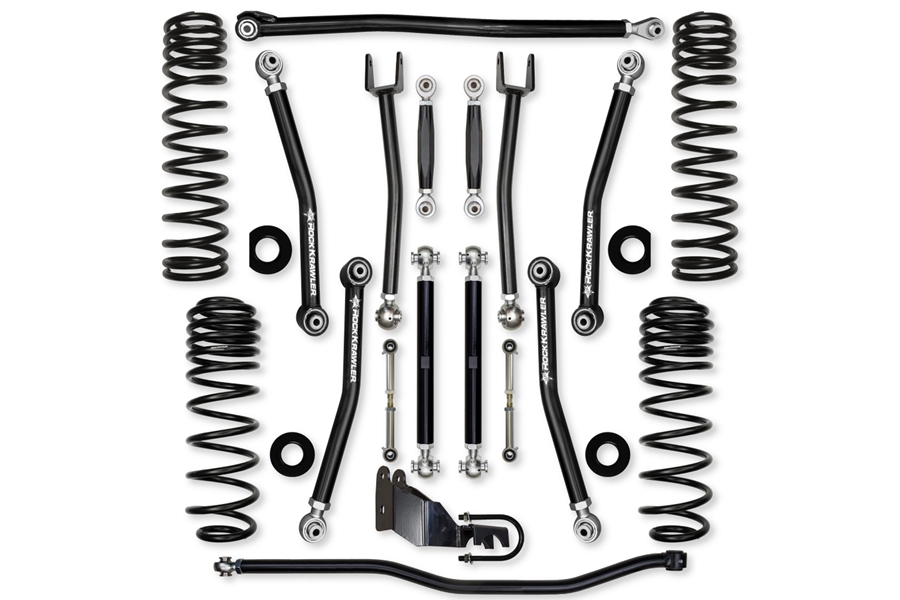

Rock Krawler 2.5in X Factor 'No Limits' Mid Arm Lift Kit

The Rock Krawler JL 2.5 X Factor No Limits Mid Arm System was specifically designed for Rubicon owners who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The No Limits front sway bar links allow Rubicon owners to use the factory sway bar disconnect function and still achieve maximum articulation. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment that drastically reduces the bind inherent in JL factory lowers, while high misalignment adjustable upper control arms let you precision tune your JL’s caster both front and rear.

Rock Krawler’s industry leading triple rate coils give you 2.5 inches of lift to clear up to 38 inch tires, depending on model, and improve the on-road ride over the factory linear rate springs. All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

System Benefits:

All lift heights are based on stock Sport models

Tire Fitment:
Sport and Sahara with Full OEM Fenders
35 inch Tall Tires (2 inch Bump Stop Height Recommended)
Sport and Sahara with Trimmed or High Lined OEM Fenders
37 inch Tall Tires (3 inch Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37 inch Tall Tires (2 inch Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
38 inch Tall Tires (Up to 40 inch Tall Tires for Ultra Low COG Stance)
(3 inch Bump Stop Height Recommended)

Wheel Fitment:
Sport and Sahara Models
35 inch Tall Tires – Recommend 4.5 inch of Back Spacing
37 inch Tall Tires – Recommend 3.5 inch of Back Spacing
Rubicon Fitment Models
35 inch Tall Tires – Recommend 4.5 inch of Back Spacing
37 inch Tall Tires – Recommend 4.5 inch of Back Spacing
38 inch/40 inch Tall Tires – Recommend 3.5 inch of Back Spacing

Shock Notes:
Generic Front Shock Length – 16 inch Collapsed/ 27.5 inch Maximum Extended
Generic Rear Shock Length – 17 inch Collapsed/ 29.5 inch Maximum Extended

General Notes:

*All lift heights based on Sport models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).

*If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.

*If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
