Steer Smarts Yeti XD Adjustable Track Bar Package

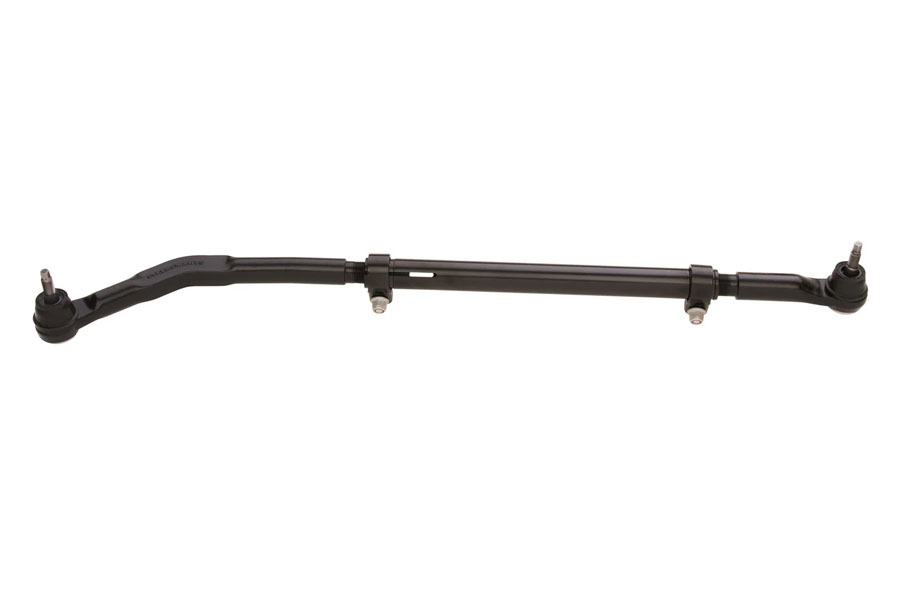

Jeep Jk Steer Smarts Yeti No Drill Top Mount Draglink Features:

Top-Mount Draglink for high-steer applications

Patented "No Drill" reverse taper mount

Reverse pin technology

30mm ball joints

High-quality joint seals minimize leakage

Large rolled threads at tie rod adjuster and draglink ends

1/4" thick wall 4130 DOM steel tubing

Epoxy-coated assembly resists corrosion

Simple bolt-on installation

Made in the USA



High-Quality Off-Road Ready Tie Rods

If you need more control over your everyday driving and off-road applications, the Steer Smarts Yeti No Drill Top Mount Draglink can help you gain more stability for your overland warrior. This Yeti No Drill Top Mount Draglink was engineered to accommodate enough clearance for all other chassis components, so there will be no issues with rubbing. Moreover, the included 30mm, 1 1/2 ton ball joints are the biggest and strongest available for the JK, so you won't have to worry about holding back on your favorite trails. Steer Smarts Reverse Pin technology prevents the linkage from flopping or rocking when you're testing the limits in your off-road warrior. This reverse pin was built right inside the socket, making for a superior design compared to weaker add-on supports seen on competitor's draglinks.



Heavy-Duty Construction & Installation Info

The Steer Smarts Yeti Top Mount Draglink features impressive construction for superior strength and long-lasting functionality. The ball joints are crafted from cold-headed medium carbon alloy to provide incredible impact toughness for extreme duty usage. Steel on steel bearings provide ultimate fatigue strength, so they'll be able to handle the constant abuse of your Jeep's aggressive build. For even more strength, the rod ends at both the adjuster and draglink feature large 1-1/4" rolled threads which are much more durable than the OE threads. Additionally, the adjuster is made from 1/4" thick wall 4130 DOM steel tubing to ensure the assembly won't loosen. When it comes to installation, this entire assembly is completely bolt-on and features a "No Drill" Reverse Taper Mount, and should only take about a few minutes to complete.



Vehicle Fitment: Draglink fits all left hand drive JK Wrangler models 2007 to 2018 including Rubicon and Unlimited.



Note: A minimum of 17”wheels is recommended. 16" wheels with a maximum 4.5 back spacing might fit but not guaranteed.





***NOTE*** A MINIMUM LIFT HEIGHT OF 3-3.5" (AND CORRECT BUMP STOP) IS REQUIRED FOR A TOP-MOUNT DRAG LINK. MINIMUM HEIGHT REQUIREMENTS WILL VARY BY LIFT MANUFACTURER - PLEASE CONTACT US IF YOU ARE UNSURE.  PART #79017001 (TRACK BAR RELOCATION BRACKET) IS NECESSARY WHEN FLIPPING YOUR DRAG LINK TO MAINTAIN PROPER PARALLEL GEOMETRY TRACK BAR AND DRAG LINK.



Frequently Asked Questions (FAQs)



Q: What is the Steer Smarts YETI XD No-Drill Top Mount Draglink?

A: It’s a heavy-duty drag link upgrade for the Jeep JK that mounts to the top of the passenger-side knuckle without requiring you to drill out the steering arm. It improves steering geometry, reduces bump steer, and increases durability—all without permanent modification to factory components.

Q: What lift height is this drag link designed for?

A: This drag link is intended for use on JKs with 3.5 to 6+ inches of lift. A raised front track bar bracket is required to maintain correct steering geometry and prevent bump steer.

Q: Is this a direct bolt-on upgrade?

A: Yes. The included tapered insert fits into the factory drag link mount on the knuckle, making this a true bolt-on solution for high-steer upgrades—no permanent modification needed.

Q: Will this work with the factory track bar?

A: No. A raised front track bar bracket is required to match the geometry of the top-mount drag link. Without it, your drag link and track bar won’t be in the same plane, which can lead to severe bump steer.

Q: Is this drag link adjustable while on the vehicle?

A: Yes. It features an adjustable sleeve with opposing threads, allowing you to fine-tune toe alignment and steering wheel position without removing the bar.

Steer Smarts Yeti Extreme Top Mount Draglink Features:

Easy bolt-on installation

Engineered for proper clearance to other chassis components to eliminate interferences

Ball Joints are fully greasable

Cold headed medium carbon alloy steel ball studs built for heavy use

Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength

Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing

MADE IN THE USA



The Steer Smarts Yeti Extreme Top Mount Draglink is the Strongest Steering Linkage Built for Wrangler JK

STEER SMARTS™ is proud to present our most EXTREME steering linkage “The YETI XD™ Series” linkage for your Jeep JK Wrangler. They applied their 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler. The YETI XD Top Mount Draglink is a complete bolt-on draglink. The YETI XD top mount installs in just minutes and bolts to the factory tapered knuckle hole and the factory pitman arm hole. One of the hallmark features of these draglinks is the adjuster tube that uses adjuster clamps to assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts. They are designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle. The internal threads and tube are also e-coated for long term serviceability.

Premium Ball Joints and Draglink Ends

The ball joints on the Steer Smarts Yeti Extreme Top Mount Draglink are 30mm 1-1/2 ton and are designed specifically for the Jeep Wrangler JK. Each Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability. Steel on steel bearings provide exceptional ball joint wear resistance and robustness. The High quality seals ensure long ball joint life. Steer Smart's superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves their ball joint reliability over our competition. The draglink ends featured and their external threads are even e-coated for durability and long term serviceability. They are forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength. Each draglink end uses a Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.



Fitment: Jeep Wrangler JK



Important Note:

A minimum of 17” wheels is recommended. 16" wheels with a maximum 4.5 back spacing might fit but not guaranteed.

Draglink fits all left hand drive JK Wrangler models 2007 to 2017 including Rubicon and Unlimited.

**NOTE** A MINIMUM LIFT HEIGHT OF 3-3.5" (AND CORRECT BUMP STOP) IS REQUIRED FOR A TOP-MOUNT DRAG LINK. MINIMUM HEIGHT REQUIREMENTS WILL VARY BY LIFT MANUFACTURER - PLEASE CONTACT US IF YOU ARE UNSURE.  PART #79017001 (TRACK BAR RELOCATION BRACKET) IS NECESSARY WHEN FLIPPING YOUR DRAG LINK TO MAINTAIN PROPER PARALLEL GEOMETRY TRACK BAR AND DRAG LINK.  ***THERE IS NO TAPER INSERT PROVIDED WITH THE HIGH-STEER DRAG LINK - WHILE THIS KIT WORKS WITH DRILLED KNUCKLES THAT HAVE JK TAPER INSTERS, IT WAS DESIGNED FOR USE WITH HIGH STEER KNUCKLES FROM COMPANIES LIKE REID, RANCHO, TERAFLEX, SKYJAKER, ETC -- WE DO RECOMMEND REPLACING THE TAPERED INSERT WITH A NEW ONE BEFORE INSTALLING THIS PART TO ENSURE PROPER FITMENT BUT WE DO NOT OFFER ONE AND ONE IS NOT INCLUDED WITH THE PRODUCT***



Frequently Asked Questions



Q: What’s the benefit of running a top mount drag link?

A: Mounting the drag link on top of the knuckle flattens the steering angles, helping to reduce bump steer and improve handling on lifted setups. It also offers improved tie rod and steering stabilizer clearance for off-road use.

Q: Is this a complete drag link assembly?

A: Yes. It includes the full drag link bar with forged ends, premium greasable joints, and adjustment sleeve for easy toe alignment and centering the steering wheel.

Q: Is this drag link adjustable while installed?

A: Yes. It features adjustable ends with opposing threads and a central adjustment sleeve, allowing for on-vehicle fine-tuning of steering wheel alignment.

Q: Can I install this drag link with a factory track bar?

A: It’s not recommended. A raised track bar bracket is required to keep the drag link and track bar in the same plane, which is critical to avoiding bump steer.

The YETI XD "No Drill" Top Mount Draglink is a complete bolt-on for high steer applications and features our Patent Pending REVERSE TAPER MOUNT design.  The YETI XD "No Drill" is the quickest and easiest draglink flip on the market. Installation takes just minutes and there is no need to modify or alter your stock knuckle. This draglink bolts to the factory tapered knuckle hole and the factory pitman arm hole.



FEATURES

YETI XD DRAGLINK WITH GRIFFIN XD ASSEMBLY:


·         Easy bolt-on installation.

·         Griffin XD Attenuator for the highest level of on-road and off-road stability and performance.

·         Engineered for proper clearance to other chassis components to eliminate interferences.

·         Patent Pending "No Drill" Reverse Taper Mount makes for a quick and easy installation without the need of drilling or altering your knuckle.

·         MADE IN THE USA

BALL JOINTS:


·         30mm 1 1/2 Ton ball joints designed specifically for the JK.

·         Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

·         Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.

·         Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

·         High quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

·         Fully greaseable.

DRAGLINK ENDS:

·         Powder coat over E-coat for a long lasting appearance under harsh conditions.

·         External threads are e-coated for durability and long term serviceability.

·         Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength.

·         Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength.

·         Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

·         Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

GRIFFIN XD ATTENUATOR:


·         Reduces harsh and negative feedback to your steering wheel.

·         Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

·         Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

·         Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle.

·         E-coated for a long lasting appearance under harsh conditions.

·         Internal threads and tube are also e-coated for long term serviceability

·         Designed for the proper clearance to other chassis components to eliminate interferences.

·         Patented Design.

*Draglink fits all left hand drive JK Wrangler models 2007 to 2017 including Rubicon and Unlimited.

Note: A minimum of 17”wheels is recommended. 16" wheels with a maximum 4.5 back spacing might fit but not guaranteed.

**Jeeps equipped with Anniversary Edition Factory Skid plates will need to slightly modify skid plate for clearance with GriffinXD



Frequently Asked Questions (FAQs)



Q: What is the Griffin Steering Attenuator and why is it beneficial?

A: The Griffin Attenuator reduces bump steer, vibration, and harsh steering feedback. It improves on-road ride quality, steering stability, and driver comfort—especially important for lifted Jeeps running larger tires.

Q: Does this draglink require drilling?

A: No. This version uses a no-drill tapered insert that installs into the factory passenger knuckle, allowing for top-mount installation without modifying or enlarging the hole.

Q: What lift height is this draglink designed for?

A: Designed for 3.5 to 6+ inches of lift. It must be used with a raised front track bar bracket to keep the draglink and track bar in the same plane and prevent bump steer.

Q: Will this help reduce bump steer?

A: Yes. The top-mount design flattens draglink geometry on lifted Jeeps, which, paired with a raised track bar bracket, helps eliminate bump steer and improve handling.

***NOTE*** A MINIMUM LIFT HEIGHT OF 3-3.5 (AND CORRECT BUMP STOP) IS REQUIRED FOR A TOP-MOUNT DRAG LINK. MINIMUM HEIGHT REQUIREMENTS WILL VARY BY LIFT MANUFACTURER - PLEASE CONTACT US IF YOU ARE UNSURE.  TRACK BAR RELOCATION BRACKET IS NECESSARY WHEN FLIPPING YOUR DRAG LINK TO MAINTAIN PROPER PARALLEL GEOMETRY TRACK BAR AND DRAG LINK.

The YETI XD "No Drill" Top Mount Draglink is a complete bolt-on for high steer applications and features our Patent Pending REVERSE TAPER MOUNT design.  The YETI XD "No Drill" is the quickest and easiest draglink flip on the market. Installation takes just minutes and there is no need to modify or alter your stock knuckle. This draglink bolts to the factory tapered knuckle hole and the factory pitman arm hole.

FEATURES:

YETI XD DRAGLINK WITH GRIFFIN XD ASSEMBLY:


·         Easy bolt-on installation.

·         Griffin XD Attenuator for the highest level of on-road and off-road stability and performance.

·         Engineered for proper clearance to other chassis components to eliminate interferences.

·         Patent Pending "No Drill" Reverse Taper Mount makes for a quick and easy installation without the need of drilling or altering your knuckle.

·         MADE IN THE USA

BALL JOINTS:


·         30mm 1 1/2 Ton ball joints designed specifically for the JK.

·         Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

·         Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.

·         Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

·         High quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

·         Fully greaseable.

DRAGLINK ENDS:

·         Powder coat over E-coat for a long lasting appearance under harsh conditions.

·         External threads are e-coated for durability and long term serviceability.

·         Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength.

·         Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength.

·         Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

·         Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

GRIFFIN XD ATTENUATOR:


·         Reduces harsh and negative feedback to your steering wheel.

·         Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

·         Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

·         Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle.

·         E-coated for a long lasting appearance under harsh conditions.

·         Internal threads and tube are also e-coated for long term serviceability

·         Designed for the proper clearance to other chassis components to eliminate interferences.

·         Patented Design.

*Draglink fits all left hand drive JK Wrangler models 2007 to 2017 including Rubicon and Unlimited.

Note: A minimum of 17”wheels is recommended. 16" wheels with a maximum 4.5 back spacing might fit but not guaranteed.

**Jeeps equipped with Anniversary Edition Factory Skid plates will need to slightly modify skid plate for clearance with GriffinXD



Frequently Asked Questions (FAQs)



Q: What is the Griffin Steering Attenuator, and what does it do?

A: The Griffin Attenuator is a patented energy-absorbing unit built into the drag link to reduce harsh steering feedback, vibration, and road shock. It greatly improves on-road comfort and steering stability, especially on Jeeps with large tires or heavier wheels.

Q: Does this kit require drilling the knuckle?

A: No. The included tapered insert allows you to mount the drag link on top of the factory passenger-side knuckle without drilling or permanent modifications.

Q: What lift height is this drag link compatible with?

A: Designed for JKs with 3" to 6+ inches of lift. A raised front track bar bracket is required to keep the drag link and track bar parallel and prevent bump steer.

Q: Is this drag link adjustable?

A: Yes. The YETI XD drag link features an opposing-thread adjustment sleeve, allowing for on-vehicle steering wheel centering and toe correction after installation.

The YETI XD Top Mount Draglink for a high steer or drilled-out stock knuckle was designed to be a complete bolt-on for JK's that have already been modified for a flipped draglink.  The YETI XD Top Mount installs in just minutes and bolts to a sleeved factory knuckle or High Steer knuckle hole and the factory pitman arm hole.



FEATURES

YETI XD DRAGLINK WITH GRIFFIN XD ASSEMBLY:


·         Easy bolt-on installation.

·         Griffin XD Attenuator for the highest level of on-road and off-road stability and performance.

·         Engineered for proper clearance to other chassis components to eliminate interferences.

·         MADE IN THE USA

BALL JOINTS:


·         30mm 1 1/2 Ton ball joints designed specifically for the JK.

·         Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

·         Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.

·         Stock JK tapered stud that bolts to either a drilled and sleeved factory knuckle or a High Steer Knuckle

·         Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

·         High quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

·         Fully greaseable.

DRAGLINK ENDS:

·         Powder coat over E-coat for a long lasting appearance under harsh conditions.

·         External threads are e-coated for durability and long term serviceability.

·         Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength.

·         Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength.

·         Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

·         Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

GRIFFIN XD ATTENUATOR:


·         Reduces harsh and negative feedback to your steering wheel.

·         Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

·         Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

·         Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle.

·         E-coated for a long lasting appearance under harsh conditions.

·         Internal threads and tube are also e-coated for long term serviceability.

·         Designed for the proper clearance to other chassis components to eliminate interferences.

·         Patented Design.

*Draglink fits all left hand drive JK Wrangler models 2007 to 2017 including Rubicon and Unlimited.

Note: A minimum of 17”wheels is recommended. 16" wheels with a maximum 4.5 back spacing might fit but not guaranteed.

**Jeeps equipped with Anniversary Edition Factory Skid plates will need to slightly modify skid plate for clearance with GriffinXD

**THIS PART DOES NOT COME WITH A TAPER SLEEVE - THIS DRAGLINK HAS A TAPERED STUD INTENDED FOR AFTERMARKET KNUCKLES WITH A MACHINED TAPER OR A FACTORY KNUCKLE PREVIOUSLY DRILLED WITH A 7/8ths INSERT**



Frequently Asked Questions (FAQs)



Q: What is the Griffin Steering Attenuator?

A: The Griffin Attenuator is a patented inline dampening unit that reduces harsh steering feedback, vibrations, and bump steer. It improves on-road comfort and steering control, especially when running larger tires or long-travel suspension systems.

Q: What lift height is this draglink designed for?

A: It’s optimized for Jeep JKs with 3.5 to 6+ inches of lift. A raised front track bar bracket is required to maintain proper steering geometry and prevent bump steer.

Q: Is the draglink adjustable on the vehicle?

A: Yes. It features an opposing-thread adjustment sleeve, allowing for easy steering wheel centering without full removal.

The YETI XD Top Mount Draglink for a high steer or drilled-out stock knuckle was designed to be a complete bolt-on for JK's that have already been modified for a flipped draglink.  The YETI XD Top Mount installs in just minutes and bolts to a sleeved factory knuckle or High Steer knuckle hole and the factory pitman arm hole.



FEATURES

YETI XD DRAGLINK WITH GRIFFIN XD ASSEMBLY:


·         Easy bolt-on installation.

·         Griffin XD Attenuator for the highest level of on-road and off-road stability and performance.

·         Engineered for proper clearance to other chassis components to eliminate interferences.

·         MADE IN THE USA

BALL JOINTS:


·         30mm 1 1/2 Ton ball joints designed specifically for the JK.

·         Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

·         Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.

·         Stock JK tapered stud that bolts to either a drilled and sleeved factory knuckle or a High Steer Knuckle

·         Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

·         High quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

·         Fully greaseable.

DRAGLINK ENDS:

·         Powder coat over E-coat for a long lasting appearance under harsh conditions.

·         External threads are e-coated for durability and long term serviceability.

·         Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength.

·         Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength.

·         Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

·         Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

GRIFFIN XD ATTENUATOR:


·         Reduces harsh and negative feedback to your steering wheel.

·         Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

·         Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

·         Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle.

·         E-coated for a long lasting appearance under harsh conditions.

·         Internal threads and tube are also e-coated for long term serviceability.

·         Designed for the proper clearance to other chassis components to eliminate interferences.

·         Patented Design.

*Draglink fits all left hand drive JK Wrangler models 2007 to 2017 including Rubicon and Unlimited.

Note: A minimum of 17”wheels is recommended. 16" wheels with a maximum 4.5 back spacing might fit but not guaranteed.

**Jeeps equipped with Anniversary Edition Factory Skid plates will need to slightly modify skid plate for clearance with GriffinXD

**THIS PART DOES NOT COME WITH A TAPER SLEEVE - THIS DRAGLINK HAS A TAPERED STUD INTENDED FOR AFTERMARKET KNUCKLES WITH A MACHINED TAPER OR A FACTORY KNUCKLE PREVIOUSLY DRILLED WITH A 7/8ths INSERT**



Frequently Asked Questions (FAQs)



Q: What is the Griffin Steering Attenuator and what does it do?

A: The Griffin Attenuator is a patented inline dampener that reduces steering vibration, road harshness, and bump steer. It improves on-road handling, especially on lifted Jeeps running larger tires.

Q: What’s the benefit of a top mount draglink?

A: A top mount draglink improves steering geometry by flattening the draglink angle. This helps reduce bump steer on lifted vehicles and improves steering control over rough terrain.

Q: What lift height is this draglink intended for?

A: This top mount draglink is best suited for 3.5”–6+” lift kits. It must be paired with a raised track bar bracket to maintain proper geometry and eliminate bump steer.

Q: Is this draglink adjustable?

A: Yes. It includes an adjustment sleeve with opposing threads, allowing for easy, on-vehicle steering wheel centering without removing the draglink.
