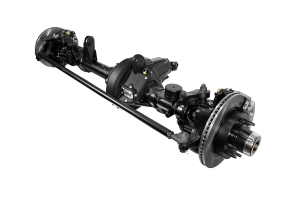

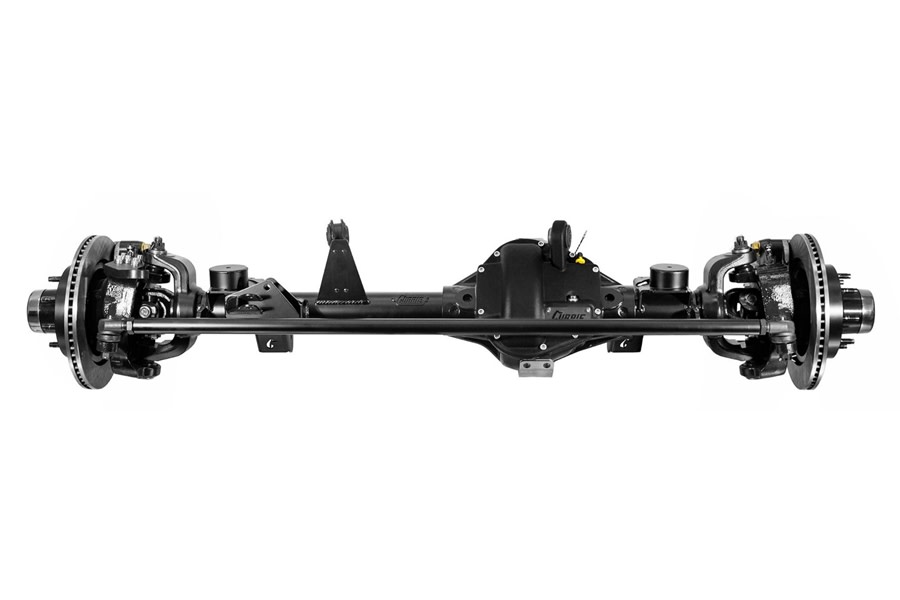

Currie Enterprises Extreme 60 - High-Pinion Front Axle w/ 5.13 Gears and ARB Locker

The Currie Extreme 60 1-ton front and rear axle assemblies for the Jeep Wrangler JK and JKU are designed for severe off-road use with up to 42-inch tall tires and V8 horsepower. The reinforced Extreme 60 center castings feature thick walls and heavy webbing, providing ultimate gear strength and durability. The front axle incorporates complete 1-ton inner and outer steering assemblies, and the rear implements 40-spline axles and billet full-floating hubs to deliver ultimate reliability. If you seek out the most challenging routes and most formidable obstacles to conquer, the Extreme 60 axles are a natural choice.

Details:

Exclusive Extreme 60 Features:

Specifications:

Housing - Extreme 60 Nodular Iron High-Clearance Center Section with Rotated Cover, Ring Gear Load Bolt, and Integrated Skid Plate

Pinion Bearing - Large diameter front pinion bearing matched to rear bearing

Pinion Oiling - High volume flow-thru recirculating oil system

Gear Set - Dana 60™ reverse rotation thick gear sets

Differential Carrier - Only high speed differential carriers (designed for low numerical gears) are used, enabling the use of stronger thick ring gears for all gear ratios. Carrier outside diameter is turned down to 8.30 inches for load bolt clearance

Ring Gear Load Bolt - Eliminates ring gear deflection under heavy load (3/4"-16 right hand thread with Jam nut)

Pinion Yoke - 1350 u-joint

Skid Plate - AR400 hardened steel skid plate

Differential Cover - Currie nodular-iron cover, Red

Axle Tubes - 3 1/2 inch diameter, .375 wall DOM tube

Axles - Currie Performance 35-spline (1.5” diameter) 4340 Chromoly inner and outer axle shafts with 1480 u-joints

End Forgings - Currie 1-ton heavy-duty forged steel inner C’s

Steering Knuckles - Currie 1-ton nodular iron steering knuckles machined and keyed for high-steer arms

Unit Bearings - 1-ton unit bearings with tone rings installed for ABS and ESP retention

Hubs -  Warn Premium locking 35-spline hubs

Brake Rotors - 14.250 in. 8-lug vented rotors

Brake Calipers - Jeep Gladiator JT OE Dual-Piston Calipers

Tie Rod -  1-ton 1.357 in. OD x .375 wall heat treated chromoly tube with forged tie rod ends

Suspension Brackets  - Heavy gauge 3/16” steel mounting brackets

Geometry - Optimized for lifted vehicles with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering

Trac Bar Mount - Ram mounting brackets welded to housing, setup for PSC 8” travel steering ram

Width - 70” wide (between wheel mounting surfaces)

Wheel Bolt Pattern - 8-lug (8 on 6 ½") with 9/16 studs

Finish - Black satin powder coat

Notes

ABS Sensors: Does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie housing

Computer Programming: 2012 and newer vehicles require a computer programmer to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control system

Driveshaft: A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10113216 is recomended (verify manufacturer vehicle fitment)

Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. Wheels must have a 4.9-inch (125 mm) hub bore with a recommended 4.5-inch backspace. The maximum recommended tire size is 42 inches

Overall Width: Axle width is 70-inches (+4.6 inches over stock) between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires

Steering Stabilizer: The Extreme 60 Ram assist bracket requires an aftermarket stud style trac bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01

Differential Carriers: Carriers provided by Currie for the Extreme 60, are turned down to 8.300" O.D. for load bolt clearance. If a standard O.D. carrier is installed the load bolt will need to be backed out to prevent damage
