- Control Arms >Teraflex Alpine IR Long Control Arm Kit, 3-6in Lift - Arms Only - JK
Teraflex Alpine IR Long Control Arm Kit, 3-6in Lift - Arms Only
JK
Features & Product Details
TeraFlex JK: Alpine IR Long Control Arms and Alpine Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability for maximum performance on JK Wrangler/Unlimited models with 3-6” lifts. Can be added to an existing suspension lift.
Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance.
On higher lifts, Alpine Long Arm Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.
Must be used with Alpine Long Arm Bracket Kit (# 1957000) – NOT INCLUDED. Our CAD-designed TeraFlex JK: Alpine Long Arm Brackets are engineered for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

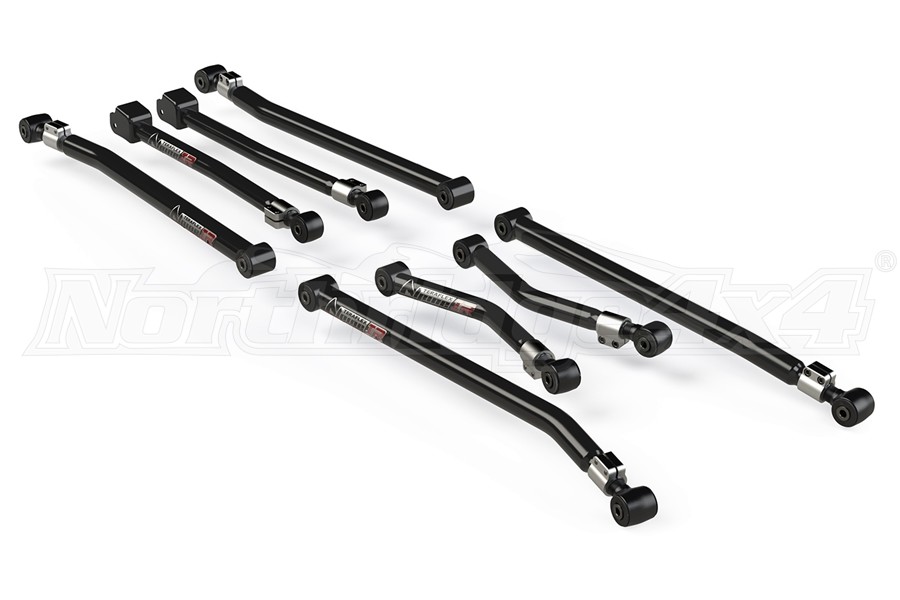

Includes:
Alpine IR Long Control Arms:
• Front Upper – pair
• Front Lower – pair
• Rear Upper – pair
• Rear Lower – pair
Features & Benefits:
JK Alpine IR Long Control Arms:
• Adjustable Alpine IR Long Control Arms & Brackets (NOT INCLUDED) balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6” lift kits
• Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength
JK Alpine IR [Long] Control Arms:
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects
Control Arm Specs:
JK: Alpine IR Long Control Arm Kit – Front Upper:
• Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)
• Factory Length = 18-3/4”
• Min. Length = 27-3/8”
• Max. Length = 28-7/8”
• Axle End = 7/16” (12mm) Bolt
• Frame End = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
JK: Alpine IR Long Control Arm Kit – Front Lower:
• Tube Diameter & Wall = 2” X 0.197” (50mm X 5mm)
• Factory Length = 22-5/8”
• Min. Length = 33-3/4”
• Max. Length = 35-1/4”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
JK: Alpine IR Long Control Arm Kit – Rear Upper:
• Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)
• Factory Length = 17-7/16”
• Min. Length = 20”
• Max. Length = 21-1/2”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
JK: Alpine IR Long Control Arm Kit – Rear Lower:
• Tube Diameter & Wall = 2” X 0.197” (50mm X 5mm)
• Factory Length = 19-3/4”
• Min. Length = 35-3/4”
• Max. Length = 37-1/4”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
Note(s):
• Requires cutting and welding.
• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• Alpine IR Long Control Arms and Alpine Long Control Arms must be used w/ Alpine Long Arm Bracket Kit (# 1957000) – NOT INCLUDED.
