JKS Draglink and Bump Stop Combo Kit

This kit is built with the same quality components that are provided in the popular JSPEC Advanced Geometry Upgrade kit. The JSPEC112K is designed for those looking to upgrade their steering without changing their existing suspension geometry.

The drag link flip & bump stop combo kit is comprised of 3 critical components.

First, the new drag link directly replaces the factory link and uses the factory adjusting collar and tie rod end at the pitman arm. This installation requires drilling out the steering arm tapered hole in the passenger’s side knuckle and installing a precision machined tapered insert. We even included a 7/8” step bit to make this process easy and not require the purchase of an expensive drill bit to complete the install. The new insert has a knurled outer surface and has a slight interference fit making it extremely strong and eliminates any possibility of play or loosening. The insert can also be reused in the opposite position if the Jeep ever needed to be returned to the original steering setup. The drag link flip flattens out the steering angles when combined with the lift heights of 2” and above providing better performing, more solid steering feel over the factory setup. To properly compliment the new steering angles provided by the drag link flip, a front track bar bracket is supplied. The new bracket mounts to the factory track bar axle mount. It not only adapts the factory mount for proper track bar angles, it also strengthens the factory setup by tying into the axle via a u-bolt setup integrated into the design. The new track bar location mimics the drag link angle perfectly and eliminates bump steer.

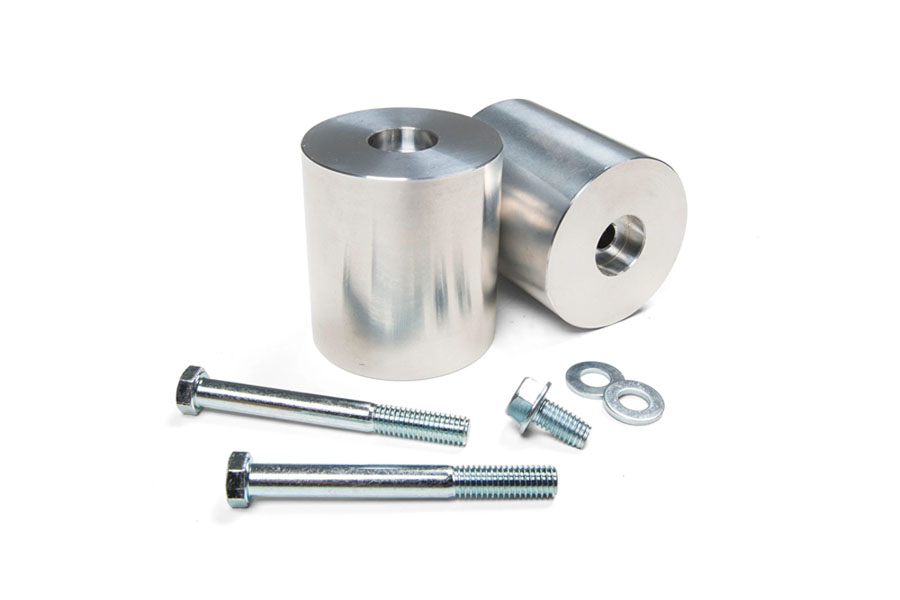

To accommodate the drag link flip kit, 3” tall front aluminum bump stop extensions are included to provide the proper clearance at full bump. The 1 piece, fully machine aluminum extensions bolt directly to the lower front coil seats with the provided hardware.

Features
