Rock Krawler 4.5in X Factor Suspension System - JL 4Dr

Rock Krawler 4.5in X Factor Suspension System

JL 4Dr

Rock Krawler 4.5in X Factor Suspension System - JL 4Dr
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JL 4.5 X Factor Mid Arm System was designed for those who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment that eliminates the bind found in your JL’s factory lowers, while high misalignment adjustable upper control arms let you precision tune your JL’s caster both front and rear. Rock Krawler’s industry leading triple rate coils give you 4.5 inches of lift to clear up to 40-inch tires, depending on model, and improve the on-road ride over the factory linear rate springs. All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

System Benefits:

  • Complete Bolt in System
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Triple Rate Coil Springs
  • Front & Rear Spring Leveling Pads
  • Jeep remains level on all 4 corners

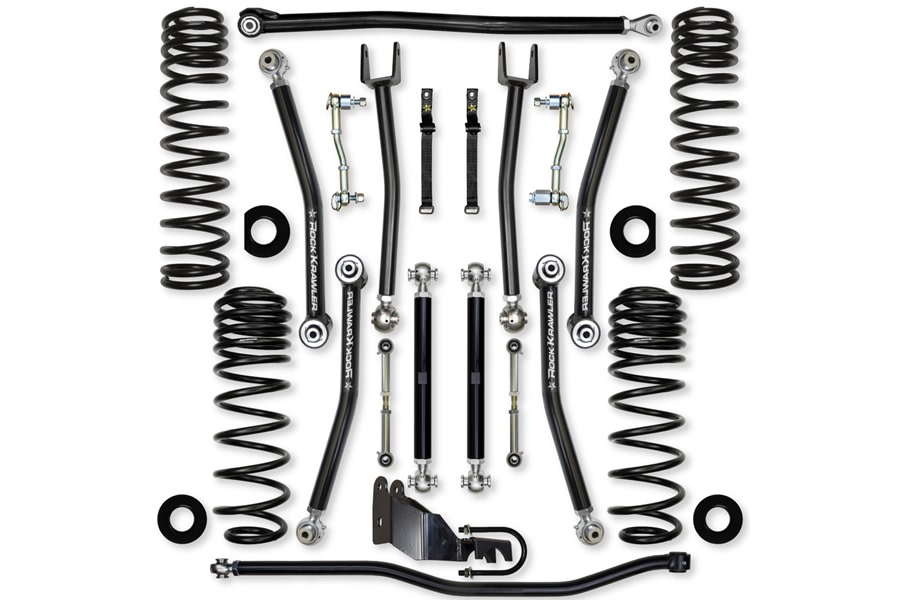

  • System Includes:

  • (4) Triple rate coil springs
  • (2) Front adjustable lower control arms
  • (2) Front adjustable upper control arms
  • (2) Front spring pads
  • Adjustable front track bar
  • Sway bar disconnects
  • Sway bar link relocation brackets
  • (2) Sway bar disconnect straps
  • (2) Rear adjustable lower control arms
  • (2) Rear adjustable upper control arms
  • (2) Rear spring pads
  • (2) Extended rear sway bar links
  • Adjustable rear track bar
  • Bolt-on rear track bar relocation bracket
  • Lift Height:
    All lift heights are based on stock Rubicon models
    Sahara add .393" of lift over stock configuration
    Sport add .787" of lift over stock configuration

    Tire Fitment:
    Sport and Sahara with Full OEM Fenders
    37in Tall Tires (3in Bump Stop Height Recommended)
    Sport and Sahara with Trimmed or High Lined OEM Fenders
    38in Tall Tires (3in Bump Stop Height Recommended)
    Rubicon with Full OEM Fenders
    37in/38in Tall Tires (3in Bump Stop Height Recommended)
    Rubicon with Trimmed or High Lined OEM Fenders
    40in Tall Tires (3in Bump Stop Height Recommended)

    Wheel Fitment:
    Sport and Sahara Wheel Fitment Recommendations
    37in/38in Tall Tires - Recommend 3.5in of Backspacing
    Rubicon Fitment Recommendations
    37in Tall Tires – Recommend 4.5in of Backspacing
    40in Tall Tires – Recommend 3.5in of Backspacing

    Shock Notes:
    Generic Front Shock Length – 18-19" Collapsed/ 30" Maximum Extended
    Generic Rear Shock Length - 20-21" Collapsed/ 32” Maximum Extended

    General Notes:
    - All lift heights based on Rubicon Models
    - Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29in
    - Requires welding of the Front and Rear Long Arm Mounts
    - Requires removal of the OEM frame side lower front and rear control arm mounts
    - Requires removal of the OEM frame side front upper control arm mounts
    - Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.

    RRD Spec'd Prodigy Shocks:
    RRD Spec Front Shock
    Part Number RRD02283

    RRD Spec Rear Shock
    Part Number RRD02284

    *requires 3" bump stops both front and rear

    RRD Spec'd TT Shocks:
    RRD Spec Twin Tube Front Shock
    Part Number RRD04003

    RRD Spec Twin Tube Rear Shock
    Part Number RRD04004

    *requires 3" bump stops both front and rear

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Wrangler JL
    Unlimited Rubicon
    2018 Jeep Wrangler JL Unlimited Rubicon
    2019 Jeep Wrangler JL Unlimited Rubicon
    2020 Jeep Wrangler JL Unlimited Rubicon
    Unlimited Rubicon Diesel
    2020 Jeep Wrangler JL Unlimited Rubicon Diesel
    Unlimited Rubicon I4 Turbo
    2018 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2019 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2020 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    Unlimited Sahara
    2018 Jeep Wrangler JL Unlimited Sahara
    2019 Jeep Wrangler JL Unlimited Sahara
    2020 Jeep Wrangler JL Unlimited Sahara
    Unlimited Sahara Diesel
    2020 Jeep Wrangler JL Unlimited Sahara Diesel
    Unlimited Sahara I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    Unlimited Sport
    2018 Jeep Wrangler JL Unlimited Sport
    2019 Jeep Wrangler JL Unlimited Sport
    2020 Jeep Wrangler JL Unlimited Sport
    Unlimited Sport Diesel
    2020 Jeep Wrangler JL Unlimited Sport Diesel
    Unlimited Sport I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sport I4 Turbo
    Unlimited Sport S
    2018 Jeep Wrangler JL Unlimited Sport S
    2019 Jeep Wrangler JL Unlimited Sport S
    2020 Jeep Wrangler JL Unlimited Sport S
    Unlimited Sport S Diesel
    2020 Jeep Wrangler JL Unlimited Sport S Diesel
    Unlimited Sport S I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sport S I4 Turbo
