Steer Smarts Yeti XD Top Mount Drag Link for High-Steer Knuckles - JK

Suspension
Steering
Drag Links >Steer Smarts Yeti XD Top Mount Drag Link for High-Steer Knuckles - JK

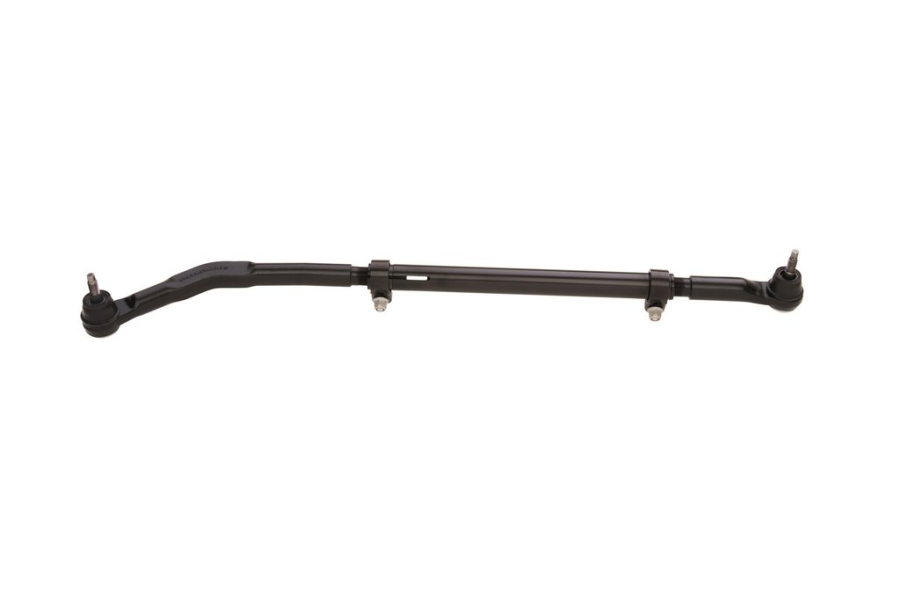

Steer Smarts Yeti XD Top Mount Drag Link for High-Steer Knuckles

Name: Steer Smarts Yeti XD Top Mount Drag Link for High-Steer Knuckles
Brand: Steer Smarts
SKU: 78066001
Price: 404.1 USD
Availability: InStock
Rating: 4 (1 reviews)

JK

Read 1 Reviews | Q&A

Part # 78066001

$404.10

msrp: $449.00

1212 entries808 entries - 2025 Northridge4x4 Jeep Giveaway

Quantity

Only 1 left!

Qualifies for
free shipping!

Set your vehicle to confirm fitment

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Customer Reviews (1)

Fitment Details

Features & Product Details

STEER SMARTS™ is proud to present their most EXTREME steering linkage “The YETI XD™ Series” linkage for your Jeep JK Wrangler. They applied their 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler.

The YETI XD Top Mount Draglink for a high steer or drilled-out stock knuckle was designed to be a complete bolt-on for JK's that have already been modified for a flipped draglink. The YETI XD Top Mount installs in just minutes and bolts to a High Steer knuckle hole and the factory pitman arm hole.

NOTES:

A minimum lift height of 3-3.5" (and correct bump stop) is required for a top mount drag link. Minimum height requirements will vary by lift manufacturer. Track Bar Relocation Bracket is necessary when flipping your drag link to maintain proper parallel geometry track bar and drag link.

THERE IS NO TAPER INSERT PROVIDED WITH THE HIGH-STEER DRAG LINK - while this kit works with drilled knuckles that have JK taper inserts, it was designed for use with High Steer Knuckles from companies like Reid, Rancho, Teraflex, Skyjaker, etc—it is recommended to replace the tapered insert with a new one before installing this part to ensure proper fitment but Steer Smarts do not offer one and one is not included with the product

Draglink fits all left-hand drive 2007-2018 JK Wrangler models including Rubicon and Unlimited.

A minimum of 17” wheels is recommended. 16" wheels with a maximum of 4.5 backspacing might fit but not guaranteed.

THIS PART DOES NOT COME WITH A TAPER SLEEVE - THIS DRAGLINK HAS A TAPERED STUD INTENDED FOR AFTERMARKET KNUCKLES WITH A MACHINED TAPER OR A FACTORY KNUCKLE PREVIOUSLY DRILLED WITH A 7/8ths INSERT

Features:

YETI XD DRAGLINK ASSEMBLY:

Easy bolt-on installation.

Engineered for proper clearance to other chassis components to eliminate interference.

MADE IN THE USA

BALL JOINTS:

30mm 2 1/2 Ton ball joints designed specifically for the JK.

Cold-headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

Induction heat-treated ball studs provide ultimate fatigue strength and superior off-road durability.

Stock JK tapered stud that bolts to either a drilled and sleeved factory knuckle or a High Steer Knuckle

Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

High-quality seals ensure long ball joint life. Steer Smarts superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves their ball joint reliability over competition.

Fully greaseable.

DRAGLINK ENDS:

Powder coat over E-coat for a long-lasting appearance under harsh conditions.

External threads are e-coated for durability and long-term serviceability.

Forged from medium carbon high hardenability steel and heat-treated for greater buckling, impact, and fatigue strength.

Forged from medium carbon high hardenability steel and heat-treated for even greater buckling, impact, and fatigue strength.

Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

Unique “Reverse Pin” technology prevents linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

ADJUSTER TUBE:

Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

Designed with right-hand and left-hand threads for quick and easy adjustment when installed on the vehicle.

Internal threads and tubes are also e-coated for long-term serviceability.

Frequently Asked Questions

Q: What’s the benefit of running a top mount drag link?

A: Mounting the drag link on top of the knuckle flattens the steering angles, helping to reduce bump steer and improve handling on lifted setups. It also offers improved tie rod and steering stabilizer clearance for off-road use.

Q: Is this a complete drag link assembly?

A: Yes. It includes the full drag link bar with forged ends, premium greasable joints, and adjustment sleeve for easy toe alignment and centering the steering wheel.

Q: Is this drag link adjustable while installed?

A: Yes. It features adjustable ends with opposing threads and a central adjustment sleeve, allowing for on-vehicle fine-tuning of steering wheel alignment.

Q: Can I install this drag link with a factory track bar?

A: It’s not recommended. A raised track bar bracket is required to keep the drag link and track bar in the same plane, which is critical to avoiding bump steer.

Product Video

Product Resources

Customer Reviews (1)

Fitment Details

Specifications

Brand: Steer Smarts

Adjustable: Yes

Bracket Thickness: No Bracket Included

Drilling Required: No

Ends Included: Yes

Finish: E-coat

Install Method: Bolt On

Made In: USA

Material: Steel

Required Lift: 3in+

Color: Black

Heat Treated: Yes

Mfgr. Warranty: Limited Lifetime Warranty

Condition: New Product

Return Policy:

Standard

REVIEWS & CUSTOMER MEDIA

1 Reviews

4 out of 5 Stars

5 Stars

(0)

4 Stars

(1)

3 Stars

(0)

2 Stars

(0)

1 Stars

(0)

Customer Photos and Videos

No user media. You can upload a photo or video of your install by posting a review.

3 of 3 people found the following review helpful

Description Says it All 8 years ago

4out of 5stars

MDK210
The description for this product is pretty spot on so there's not much to add. Beefy, greaseable, easy to install, and made in the USA. I don't understand why companies still make top mount draglinks you have to drill out the knuckle when the only trick is to have this tapered stud that Steer Smarts provides which costs them a few cents to make I'm sure. They do offer different styles if you've already drilled the knuckle on a previous setup which is nice of them but mine was OE. Do yourself a favor and get a pickle fork for ball joints at your local autoparts store for about $10. My Jeep only had 15K miles and has had an easy life but the ball joint attached to the pitman arm wasn't coming out regardless of how much vibration I tried to create with a small sledge hammer. The ball joint nut on the passenger side knuckle requires a minimum of 105 ft lbs so you'll need a torque wrench capable of that and in order to access both turn the steering wheel all the way to the passenger side. A deep socket 21mm 6-point is necessary for the passenger side ball joint as well. YouTube's TrailRecon has a good video but they don't talk about the deep socket. I believe you torque the pitman arm down to 70 ft lbs and you can manage to do this with a regular 21mm socket but it takes some patience and depending on the head size of your torque wrench maybe a tight fit. I have the Kobalt 1/2" torque wrench and managed it. Everything goes smooth if you have the right tools...
