ARB Dana 44 Air Locker Differential - JK/TJ/LJ

Drivetrain
Differentials
Lockers >ARB Dana 44 Air Locker Differential - JK/TJ/LJ

ARB Dana 44 Air Locker Differential

Name: ARB Dana 44 Air Locker Differential
Brand: ARB
SKU: RD117
Price: 1299.95 USD
Availability: InStock
Rating: 4.8 (4 reviews)

JK/TJ/LJ

Read 4 Reviews | 1 Q&As

Part # RD117

$1,299.95

3897 entries2598 entries - 2025 Northridge4x4 Jeep Giveaway

Quantity

In stock!

Qualifies for
free shipping!

Set your vehicle to confirm fitment

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Installation Instructions

Customer Reviews (4)

Questions (1) Answers (1)

Fitment Details

Features & Product Details

The world's premier traction aid, an ARB Air Locker keeps you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment, and its super strong design allows activation at any speed, allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.

Features

Provides 100 percent traction on demand without affecting on-road drivability or driveline wear

Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver's seat

Two-piece design is ultra-durable and extremely strong minimal moving parts ensure maximum reliability

Patented ?timed' locking mechanism offers high strength and ultra-fast unlocking

Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures on Earth

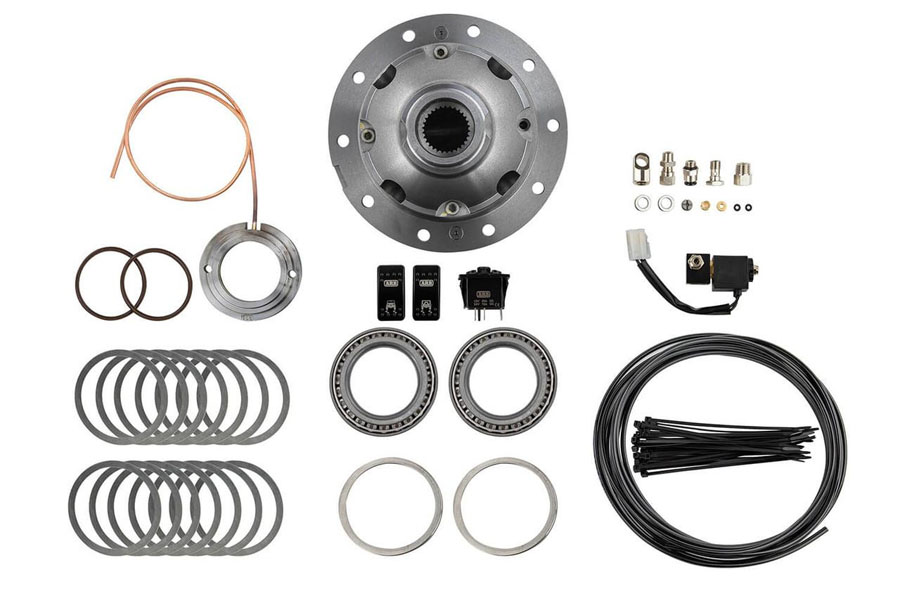

Kit includes: Air Locker differential, activation switch, solenoid valve, air line and bulkhead fitting

Air compressor required for operation (sold separately)

Aftermarket Dana 44 standard cut ring and pinion ratios of 4.56 & up will require RD116 instead. Thick cut ring and pinion sets (all ratios) will require the use of the RD117. (Except Jeep JK)

Fitment Info

Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 3.73 Dn

Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: All

Axle: IFS; Position: Front; Shaft: 1.12 in; Spline: 17; Ratio: All

Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 4.56 Up

Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 4.13 Up

Axle: Dana 44; Position: Front; Shaft: 1.31 in; Spline: 30; Ratio: 3.73 Up

Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 3.73 Up

Axle: Dana 44; Position: Front; Shaft: 1.31 in; Spline: 30; Ratio: 4.10

Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 4.10

Note:

Newer OEM Chrysler 8.25" and Dana 44 ring gear may have 3/8", 7/16" or 1/2" ring gear bolts.

Air locker flange holes must be drilled or reamed larger to suit 7/16" or 1/2" bolts.

For many applications, particularly if you are installing the RD117 into certain Jeep Wrangler JK/TJ Dana 44 axles, you may need to drill out or ream the 10 ring gear bolt holes on the locker flange itself

Aftermarket Dana 44 ring and pinion ratios of 4.56 & up will require RD116 instead. (Excludes Jeep JK)

Product Video

Product Resources

Installation Instructions

Customer Reviews (4)

Questions (1) Answers (1)

Fitment Details

Specifications

Brand: ARB

Axle Type: Dana 44

Gear Ratio: 3.73 and Down

Location: Front or Rear

Locker Type: Selectable Air

Material: Alloy Steel

Qty: 1 kit

Spline Count: 30

Type: Air Locker Kit

Mfgr. Warranty: 5 Year

Condition: New Product

Return Policy:

Standard

REVIEWS & CUSTOMER MEDIA

4 Reviews

4.8 out of 5 Stars

5 Stars

(3)

4 Stars

(1)

3 Stars

(0)

2 Stars

(0)

1 Stars

(0)

Customer Photos and Videos

No user media. You can upload a photo or video of your install by posting a review.

Had to drill out holes in locker 2 months ago

4out of 5stars

Jason V
That disclaimer about drilling out the axle is there now because of me...I purchased this locker to install on the rear of my 2016 JK non rubicon 44 rear axle. Had to drill out all 10 holes which is no joke! Felt very stressful drilling out 10 perfect holes in a very expensive brand new part. After that things went smoothly but be aware

Was this review helpful?
Sign In to vote!

ARBRD117 3 years ago

5out of 5stars

Repo LJ
The strongest locker that you can buy. I can wheel with confidence now knowing that my stock unit has been upgraded to the highest strength locker available for my LJ.

Was this review helpful?
Sign In to vote!

Dana 44 ARB 4 years ago

5out of 5stars

Repo LJ
My locker arrived in perfect condition and was packaged quite well. Install was not easy but no ARB install ever is. Works as it should so far although I haven't had it on the trails yet. I gave it 5 stars because I know that ARB makes quality parts.

Was this review helpful?
Sign In to vote!

2 of 2 people found the following review helpful

Absolutely love these lockers! 10 years ago

5out of 5stars

Jessica
We have ARB air lockers front and rear in our 1998 TJ Sport. We absolutely LOVE them! So worth the price. We have never had a problem with them, they definitely help us over some gnarly obstacles, and having the option to have them engaged or not is just the icing on the cake. We can choose to play without them for more of a challenge, or engage them in a sticky situation to help us get through it. If/when we build another rig, these will be our first choice hands down!

Was this review helpful?
Sign In to vote!

QUESTIONS & ANSWERS

Q: Gears Bellchr3 years ago
Will this locker work with either 4.88 or 5.13 gears?
- 0 of 0 people found the following answer helpful
  A: Yes, locker will work with either the 4.88 or 5.13
  Northridge Chris @ Northridge4x4 3 years ago

  Was this answer helpful?
  Sign In to vote!
