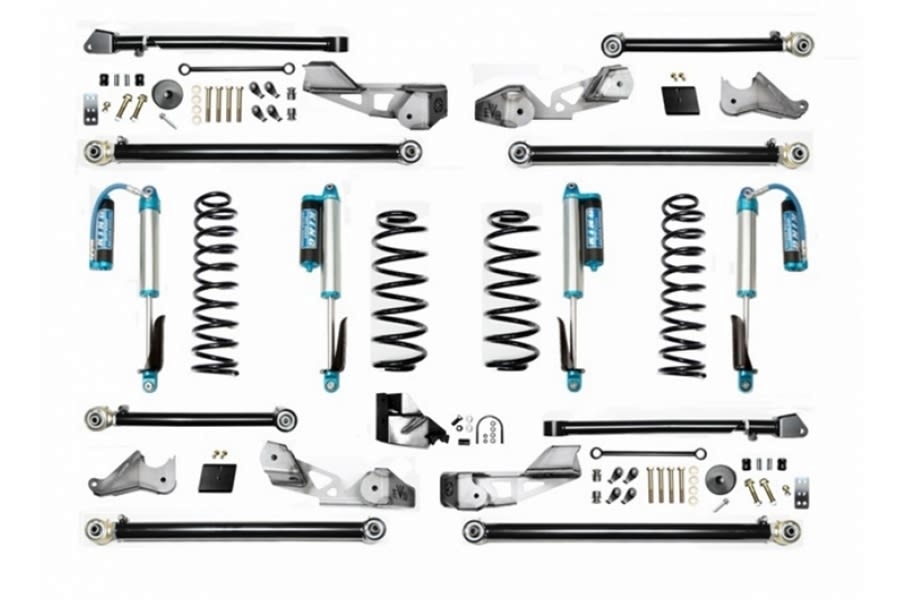

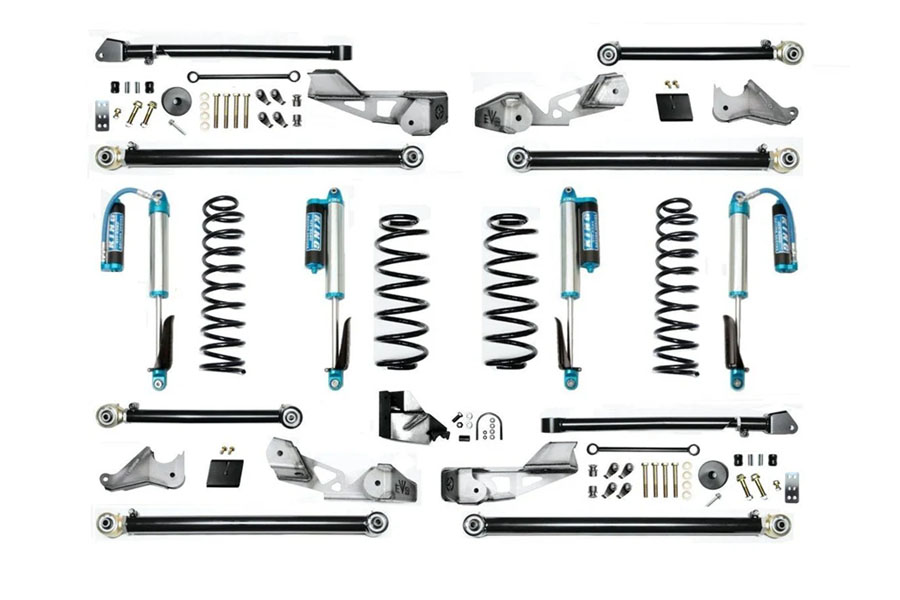

EVO Manufacturing 4.5in High Clearance Long Arm Lift Kit w/ Comp Adjuster Shocks - JL 4Dr

EVO Manufacturing 4.5in High Clearance Long Arm Lift Kit w/ Comp Adjuster Shocks

JL 4Dr

EVO Manufacturing 4.5in High Clearance Long Arm Lift Kit w/ Comp Adjuster Shocks - JL 4Dr
INCLUDED IN PRICE
You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # 3056KAWe price match! Call 866-601-5340!
ANY QUESTIONS?

Product Resources

Features & Product Details

The EVO MFG 4.5” JLU High Clearance Long Arm kit will like your JLU 4.5”s. Through specifically designed bracketry we accomplish the ultimate in suspension and chassis clearance, larger wheel travel ability, optimal suspension geometry with increased ride quality. Clearance, ride quality, performance and ease of installation was our focus in creating this long arm suspension system.  The front arms mount tucked up inside nearly flush with the bottom of the frame mounting inches above the stock front lower mounting bracket.  The rear mounting locations for the long arm are on the side of the frame, above the bottom giving inches of clearance over the factory locations as well.

Keeping optimal geometry while maintaining as much clearance was critical in the design of this system.  In doing so, not only did we raise the rear control above the frame but we raised its mounting at the rear axle by multiple inches as well.  This allows for an incredible ground clearance increase but just as importantly retaining flat and optimal control arm angles giving ideal ground clearance, smooth ride quality and long travel ability. The mounting brackets are specifically designed to require no exhaust cutting on 3.6L Jeep Wrangler JLU’s (minor grind/clearance to flange required) and have full length hard-face mounting surfaces that weld to your frame giving redundant and ample welding area and strength to their mounting.  The mounting brackets align to the frame simply using existing factory holes giving complete assurance of proper locating during install.

Simply bolt brackets up to frame with existing hardware and weld them in place. These kits come with a set of 4.5” Plush Ride Lift springs specific to each corner which will keep the Jeep Wrangler JLU more level side to side and will maintain a unique and compliant ride quality. EVO MFG Long Arm joints feature Johnny Joints on both ends of the control arms for restriction free articulation and motion with no wearable and limited bond rubber.  All long arms come complete with EVO1 on vehicle adjuster making alignment a snap allowing for the ability to adjust control arm lengths while completely installed on the vehicle at all times.

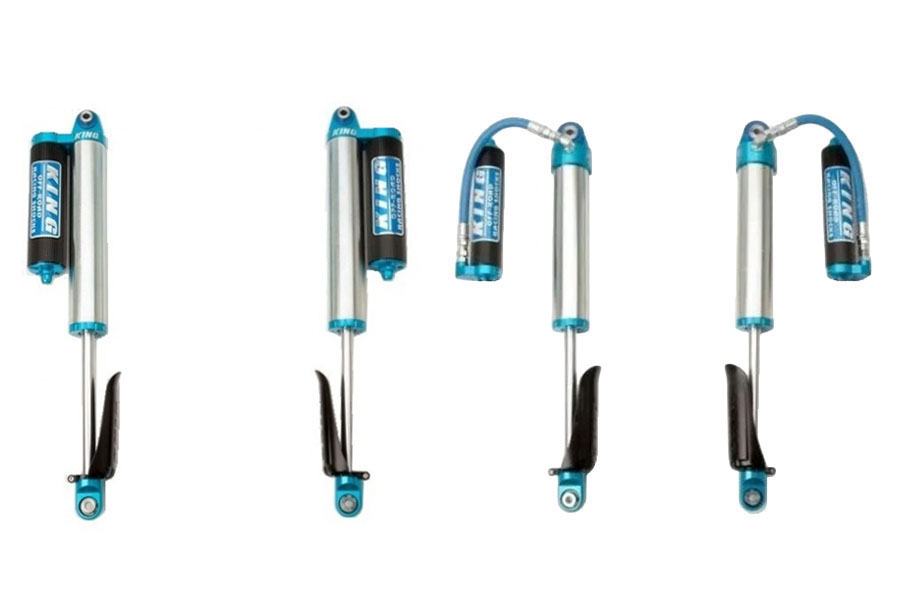

All EVO MFG lower long arms are built with strength in mind.  These arms are made from industry leading 2.0” x .281” wall Steel DOM Tubing. Include in these kits is front brakeline extension brackets, Rear swaybar endlinks and front and bumpstop extensions. Cutting, grinding and welding of frame brackets required. The EVO MFG 3.5” High Clearance Long Arm kits require no driveshaft or exhaust modifications (your shock choice may require this, contact manufacturer to be sure). Option of retaining factory shocks, maintaining wheel travel with use of shock extensions (part number EXT kits) or without shock extensions to allow for use of your choice of aftermarket 3/5” lift shocks. EVO3015K kits come with EVO SPEC King 2.5” Remote Reservoir shocks all 4 corners. 3.5” lift is based on increase of our 4 Door Rubicon.  4 Door Sport and Sahara Models will see slightly higher increases over stock and will match overall lift height of a Rubicon Model.  2 Door Models (all) will see slightly higher increases in lift.  Increases will vary.

Note:  Depending on actual tire variances and sizes, Some minor factory inner liner plastic may need to trimmed/removed to fully clear some tires under compression.  These kits require wheel spacers or aftermarket wheels with smaller backspacing. Front and rear adjustable trackbars are included with PLUS “P” kits.

Specifications

Brand: Evo Manufacturing
Kit Package: Yes
Mfgr. Warranty: See Individual Parts
Condition: New Product
Return Policy:
Standard

PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

REVIEWS & CUSTOMER MEDIA

Be the first to write a review

QUESTIONS & ANSWERS

No questions have been asked about this product.

This Part Fits

Jeep Wrangler JL
Unlimited Freedom
2023 Jeep Wrangler JL Unlimited Freedom
Unlimited Freedom I4 Turbo
2023 Jeep Wrangler JL Unlimited Freedom I4 Turbo
Unlimited High Altitude
2022 Jeep Wrangler JL Unlimited High Altitude
2023 Jeep Wrangler JL Unlimited High Altitude
Unlimited High Altitude I4 Turbo
2022 Jeep Wrangler JL Unlimited High Altitude I4 Turbo
2023 Jeep Wrangler JL Unlimited High Altitude I4 Turbo
Unlimited Rubicon
2018 Jeep Wrangler JL Unlimited Rubicon
2019 Jeep Wrangler JL Unlimited Rubicon
2020 Jeep Wrangler JL Unlimited Rubicon
2021 Jeep Wrangler JL Unlimited Rubicon
2022 Jeep Wrangler JL Unlimited Rubicon
2023 Jeep Wrangler JL Unlimited Rubicon
2024 Jeep Wrangler JL Unlimited Rubicon
Unlimited Rubicon I4 Turbo
2018 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
2019 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
2020 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
2021 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
2022 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
2023 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
2024 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
Unlimited Rubicon X
2024 Jeep Wrangler JL Unlimited Rubicon X
Unlimited Rubicon X I4 Turbo
2024 Jeep Wrangler JL Unlimited Rubicon X I4 Turbo
Unlimited Sahara
2018 Jeep Wrangler JL Unlimited Sahara
2019 Jeep Wrangler JL Unlimited Sahara
2020 Jeep Wrangler JL Unlimited Sahara
2021 Jeep Wrangler JL Unlimited Sahara
2022 Jeep Wrangler JL Unlimited Sahara
2023 Jeep Wrangler JL Unlimited Sahara
2024 Jeep Wrangler JL Unlimited Sahara
Unlimited Sahara Altitude
2022 Jeep Wrangler JL Unlimited Sahara Altitude
2023 Jeep Wrangler JL Unlimited Sahara Altitude
Unlimited Sahara Altitude I4 Turbo
2022 Jeep Wrangler JL Unlimited Sahara Altitude I4 Turbo
2023 Jeep Wrangler JL Unlimited Sahara Altitude I4 Turbo
Unlimited Sahara I4 Turbo
2018 Jeep Wrangler JL Unlimited Sahara I4 Turbo
2019 Jeep Wrangler JL Unlimited Sahara I4 Turbo
2020 Jeep Wrangler JL Unlimited Sahara I4 Turbo
2021 Jeep Wrangler JL Unlimited Sahara I4 Turbo
2022 Jeep Wrangler JL Unlimited Sahara I4 Turbo
2023 Jeep Wrangler JL Unlimited Sahara I4 Turbo
2024 Jeep Wrangler JL Unlimited Sahara I4 Turbo
Unlimited Sport
2018 Jeep Wrangler JL Unlimited Sport
2019 Jeep Wrangler JL Unlimited Sport
2020 Jeep Wrangler JL Unlimited Sport
2021 Jeep Wrangler JL Unlimited Sport
2022 Jeep Wrangler JL Unlimited Sport
2023 Jeep Wrangler JL Unlimited Sport
2024 Jeep Wrangler JL Unlimited Sport
Unlimited Sport Altitude
2022 Jeep Wrangler JL Unlimited Sport Altitude
2023 Jeep Wrangler JL Unlimited Sport Altitude
Unlimited Sport Altitude I4 Turbo
2022 Jeep Wrangler JL Unlimited Sport Altitude I4 Turbo
2023 Jeep Wrangler JL Unlimited Sport Altitude I4 Turbo
Unlimited Sport I4 Turbo
2018 Jeep Wrangler JL Unlimited Sport I4 Turbo
2019 Jeep Wrangler JL Unlimited Sport I4 Turbo
2020 Jeep Wrangler JL Unlimited Sport I4 Turbo
2021 Jeep Wrangler JL Unlimited Sport I4 Turbo
2022 Jeep Wrangler JL Unlimited Sport I4 Turbo
2023 Jeep Wrangler JL Unlimited Sport I4 Turbo
2024 Jeep Wrangler JL Unlimited Sport I4 Turbo
Unlimited Sport S
2018 Jeep Wrangler JL Unlimited Sport S
2019 Jeep Wrangler JL Unlimited Sport S
2020 Jeep Wrangler JL Unlimited Sport S
2021 Jeep Wrangler JL Unlimited Sport S
2022 Jeep Wrangler JL Unlimited Sport S
2023 Jeep Wrangler JL Unlimited Sport S
2024 Jeep Wrangler JL Unlimited Sport S
Unlimited Sport S I4 Turbo
2018 Jeep Wrangler JL Unlimited Sport S I4 Turbo
2019 Jeep Wrangler JL Unlimited Sport S I4 Turbo
2020 Jeep Wrangler JL Unlimited Sport S I4 Turbo
2021 Jeep Wrangler JL Unlimited Sport S I4 Turbo
2022 Jeep Wrangler JL Unlimited Sport S I4 Turbo
2023 Jeep Wrangler JL Unlimited Sport S I4 Turbo
2024 Jeep Wrangler JL Unlimited Sport S I4 Turbo
Unlimited Willys
2022 Jeep Wrangler JL Unlimited Willys
2023 Jeep Wrangler JL Unlimited Willys
2024 Jeep Wrangler JL Unlimited Willys
Unlimited Willys I4 Turbo
2022 Jeep Wrangler JL Unlimited Willys I4 Turbo
2023 Jeep Wrangler JL Unlimited Willys I4 Turbo
2024 Jeep Wrangler JL Unlimited Willys I4 Turbo
Unlimited Willys Sport
2022 Jeep Wrangler JL Unlimited Willys Sport
2023 Jeep Wrangler JL Unlimited Willys Sport
Unlimited Willys Sport I4 Turbo
2022 Jeep Wrangler JL Unlimited Willys Sport I4 Turbo
2023 Jeep Wrangler JL Unlimited Willys Sport I4 Turbo
