Tie Rods >RockJock Currectlync Tie Rod - JK

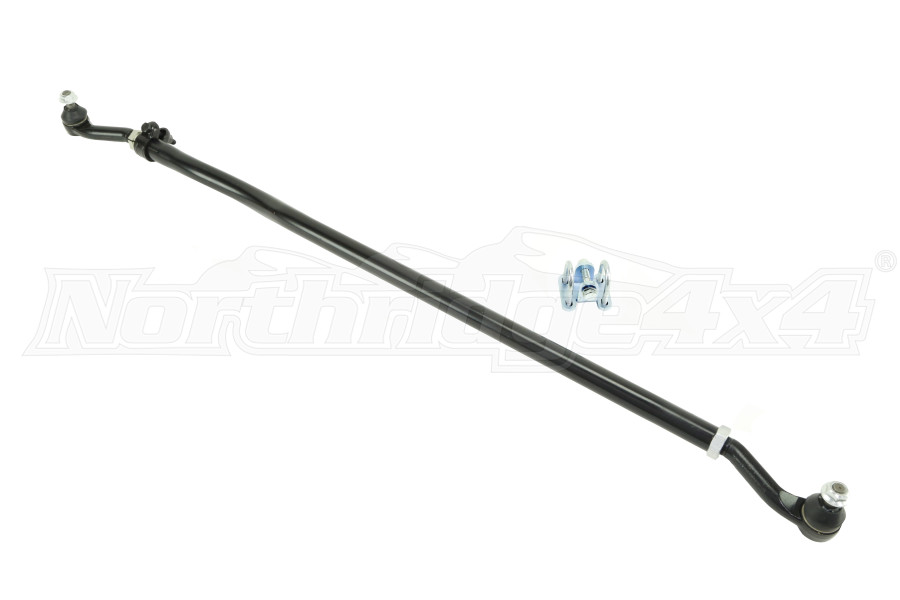

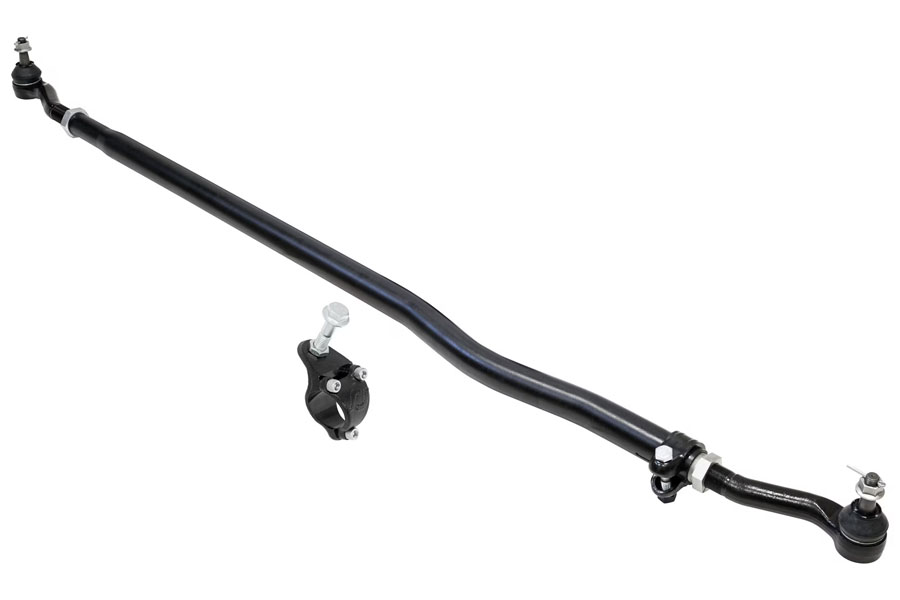

RockJock Currectlync Tie Rod

Name: RockJock Currectlync Tie Rod
Brand: RockJock
SKU: JK-9704TR
Price: 400.5 USD
Availability: InStock

JK

Write a Review | Q&A

Part # JK-9704TR

$400.50

You save:

10%

($44.50)

msrp: $445.00

Quantity

Only 2 left!

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

Have you seen the size of your JK’s stock tie rod? Being pro-active, so you don't get stranded in the wilderness with bent or broken factory steering components, is the smart thing to do for your family's safety. RockJock's Currectlync Tie Rod for your JK Wrangler or Unlimited is must-have for those who get their rigs out in the dirt!

RockJock's completely bolt-on Tie Rod features an alloy steel 42mm (1.654 in.) diameter tie rod, larger forged, greasable rod ends, premium jam nuts and adjuster and it's painted black, so it's ready for install right out of the box!

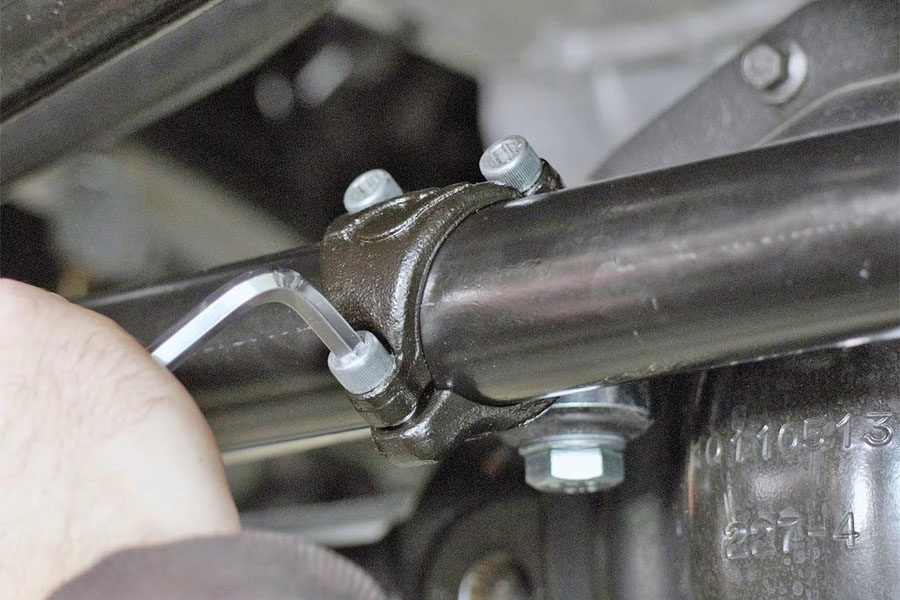

Their heavy duty forged chromoly steering stabilizer shock mounting bracket kit is included to allow you to easily reinstall your factory stabilizer shock or an upgraded CE-9170SD1 Rancho RS5000 stabilizer shock. For those running big tires, these components are also compatible with ram assist steering.

This easy to install kit requires no modifications or machining to any part of the vehicle!

Kit Includes:

42mm (1.654 in.) Alloy Steel Tie Rod Assembly (w/ Ends)

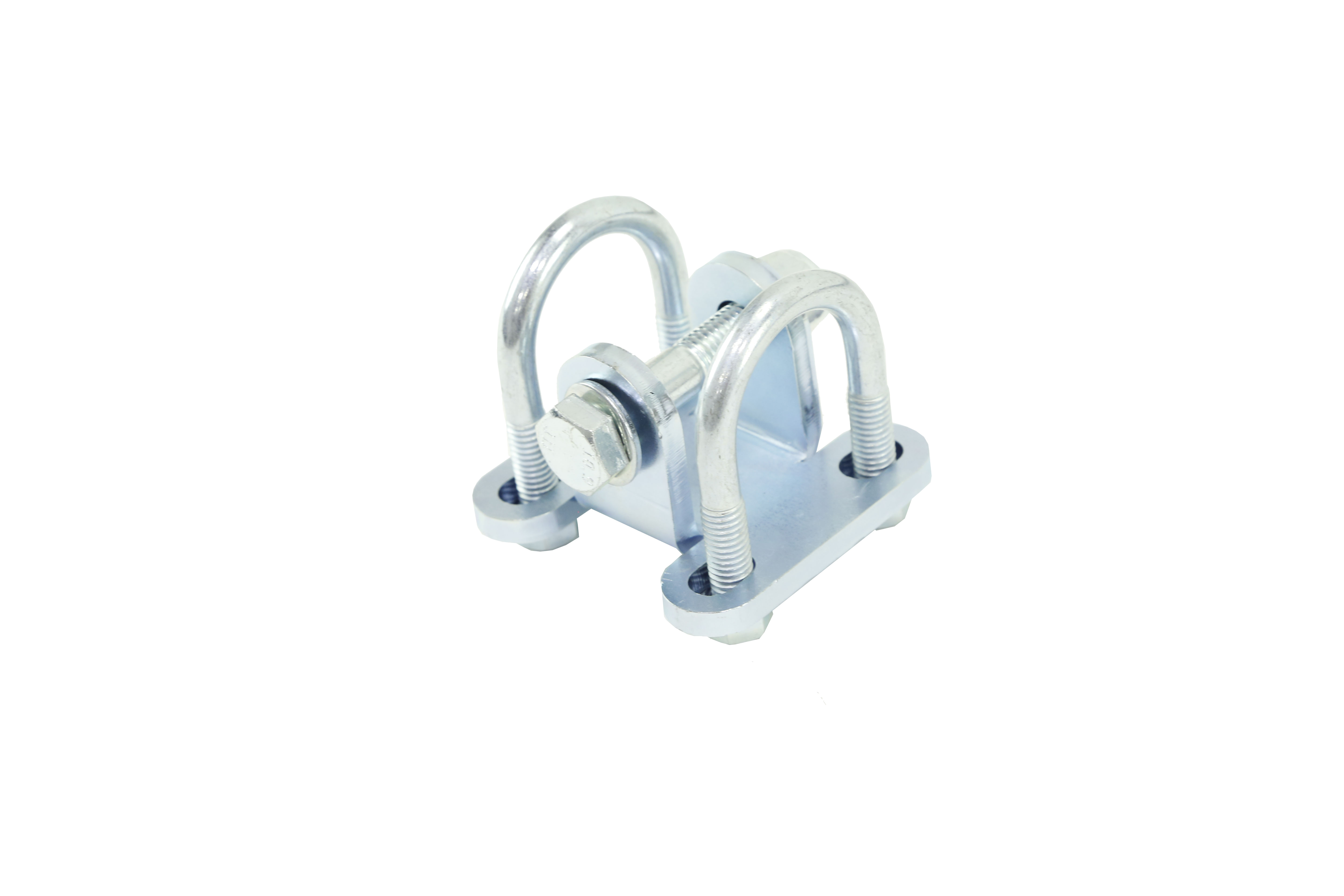

Forged Steering Stabilizer Shock Bracket Kit

All required hardware

Kit Features:

42mm (1.654 in.) Alloy Steel Tie Rod Tube with indexed ends for superior strength

Heavy Duty Greasable Rod Ends for increased strength and long service life

Double Toe Adjuster simplifies alignment (eliminates the need to remove stabilizer or ram to adjust)

Compatible with ram assist steering

Fitment Specs.:

For use with any amount of lift

Compatible with any OEM JK wheel

Works with any size tire

For use on any factory JK Dana 30 or Dana 44 differential

Can be used on aftermarket Dana 44 differentials that retain the factory outer steering knuckles, or aftermarket knuckles that retain the stock JK taper in the rod end mounting holes

Both rod end tapers are designed to fit the vehicles stock, original taper for ease of installation. If your tapers have been enlarged or drilled out – this will no longer be a bolt-on kit

Component Specs.:

Tie Rod = 42mm (1.654 in.) dia. alloy steel tube with indexed ends for maximum strength

Tie Rod Adjuster = 1 1/8 in.-18 RH inner threads, 1 3/8 in.-18 outer threads

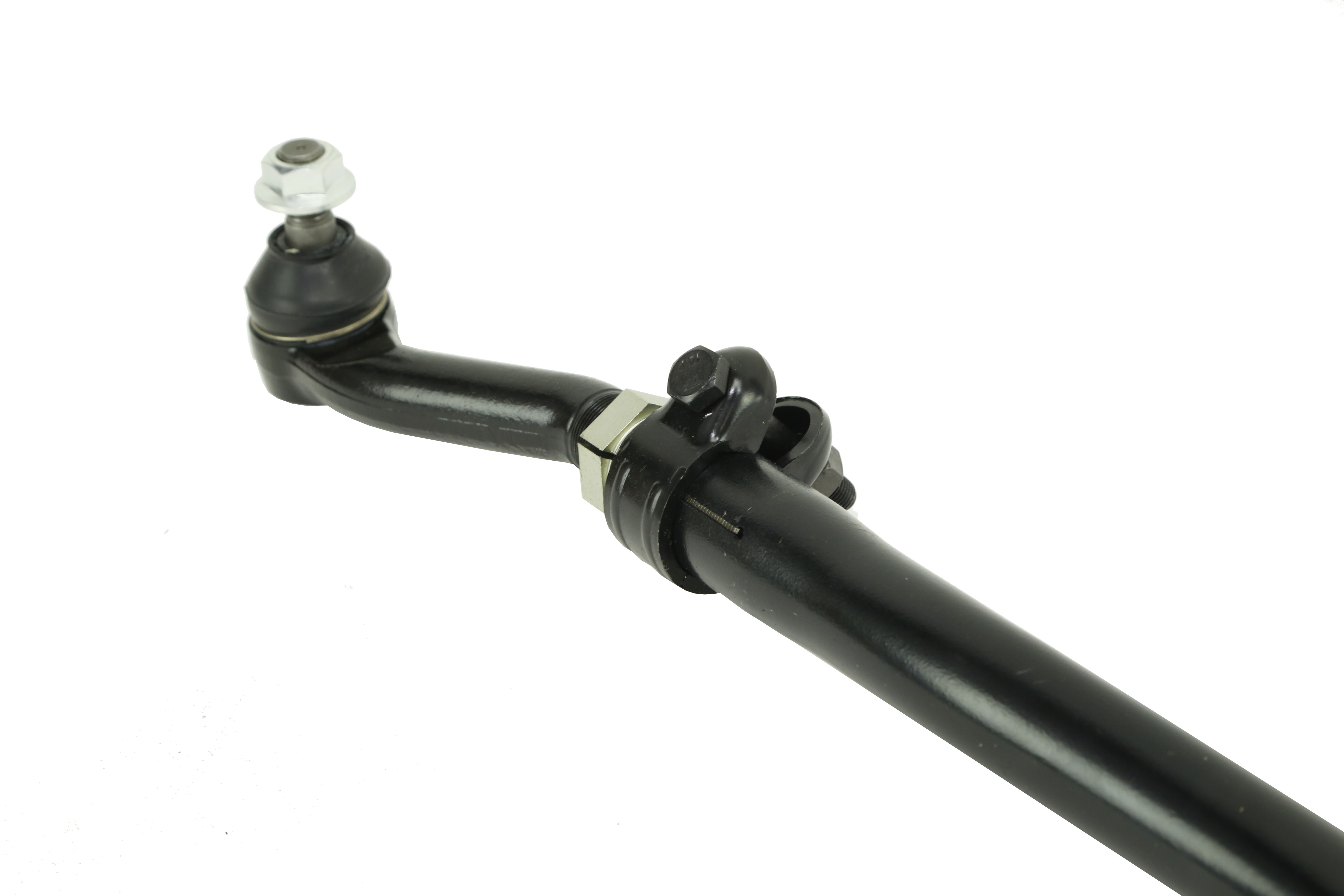

Tie Rod Ends = 1 1/8 in.-18 RH threads (on both), forged steel

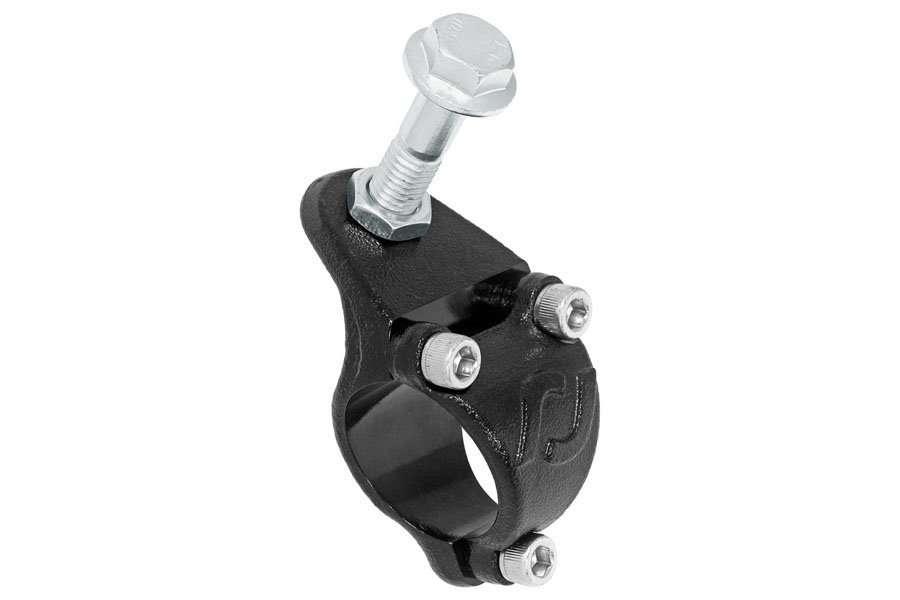

Steering Stabilizer Shock Tie Rod Bracket = forged 4130 chromoly steel

Adjustment Specs.:

Fully Collapsed = 57.63 in. C-C

Fully Extended = 62.13 in. C-C (max.)

Stock JK Axle w/ Stock Knuckles Adjustment = 58.37 in. C-C

Notes:

For complete kits that include this Tie Rod and a Drag Link, see JK-9704 for a standard Drag Link kit and JK-9704P for a flipped Drag Link kit.

The Steering Stabilizer Bracket Kit that is included may be used with the stock stabilizer shock, an upgraded CE-9170SD1 Rancho RS5000 stabilizer shock and most other aftermarket shocks.

When using ram assist, be mindful of tube size when purchasing ram brackets (see our ram assist mounting solutions here: RJ-401000-101 and RJ-441001-101

You must grease all rod ends via their zerk fittings before use. Grease unit with non-synthetic, hi-moly lube grease, such as the CE-9013G
