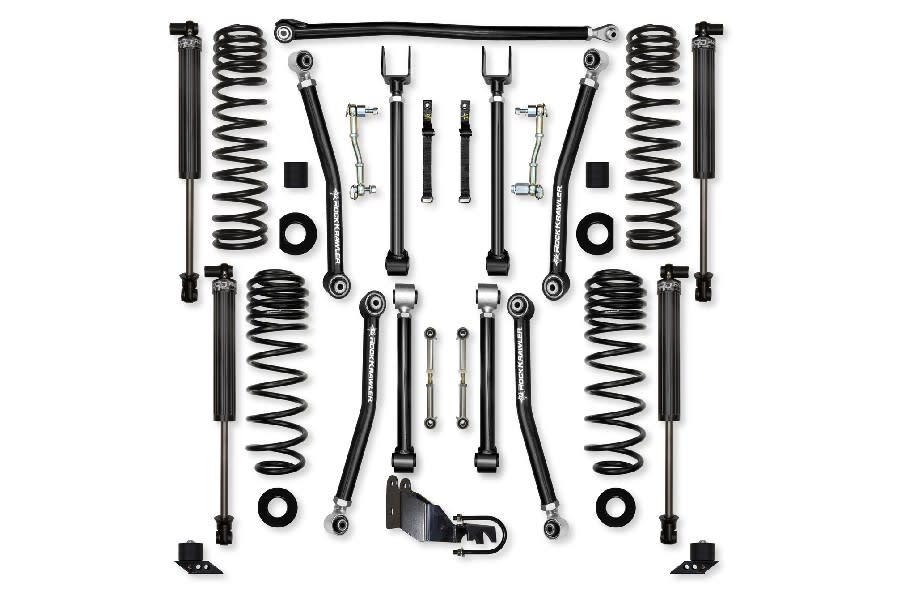

Rock Krawler 2.5in Adventure X Mid Arm Lift Kit - Stage 1

The Rock Krawler Suspension JL Wrangler 2.5 inch Adventure - X Mid-Arm System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. Our system proves its durability and off-road performance every time you hits the streets or trail! The Term, Adventure - X comes from the inclusion of 8 adjustable control arms with our 100% Service Free Adventure Series joints installed. Our industry leading, Adventure - X mid-Arms feature adjustable upper and lower control arms and offer a total of 70 degrees of misalignment when paired with our Adventure series Joints at the frame connection and at the axle. The inherent bind in a factory JL control arm is greatly reduced. With so much adjustability, it allows you to precision tune the JL's caster and pinion angle front and rear. Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road hand

System Benefits:

Shock Information:

Generic Front Shock Length – 16.8in Collapsed/ 27.3in Maximum Extended

Generic Rear Shock Length – 17.8in Collapsed/ 29.31in Maximum Extended

TT Shocks: Steel bodied, can be installed with shaft up or down, excellent for daily drivers and weekend warriors

RRD Spec Twin Tube Front Shock

Part Number RRD04003

RRD Spec Twin Tube Rear Shock

Part Number RRD04004

FULL PACKAGE = RRD04013

requires 3in bump stops both front and rear

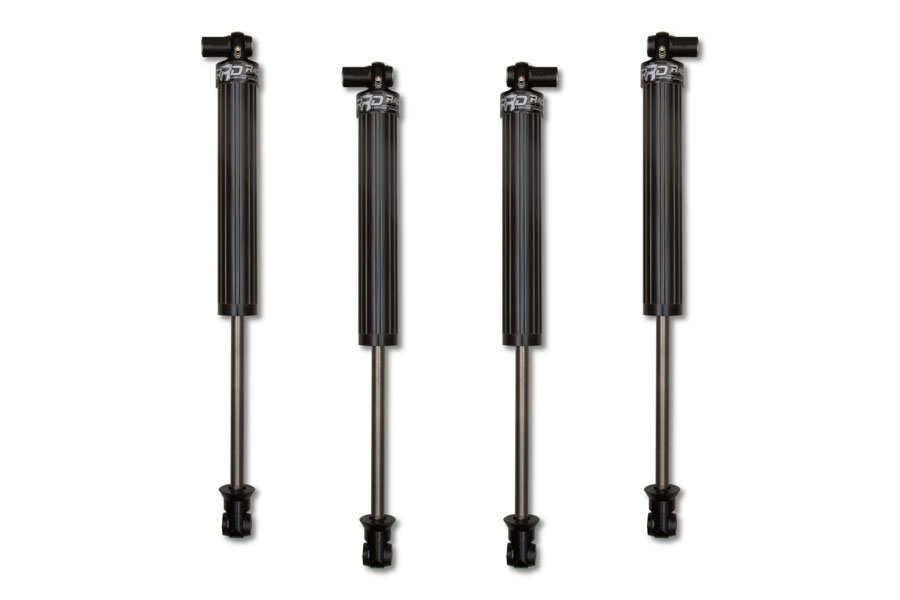

RRD Spec'd 2.25in Shocks: IN-HOUSE Designed and built - 2.25in Fluted aluminum construction, hard coat military grade black anodizing, 7/8in shaft, IFP (Internal floating piston), better bushings to achieve better misalignment, fully serviceable and rebuildable

RRDSpec Front Shock

Part Number RRD02283

RRD Spec Rear Shock

Part Number RRD02284

FULL PACKAGE = RRD02307

requires 3in bump stops both front and rear

Wheel Fitment:

Sport and Sahara Wheel Fitment Recommendations

35in Tall Tires - Recommend 4.5in of Back Spacing

37in Tall Tires - Recommend 3.5in of Back Spacing

Rubicon Fitment Recommendations

35in Tall Tires – Recommend 4.5in of Back Spacing

37in Tall Tires – Recommend 4.5in of Back Spacing

38in/40in Tall Tires – Recommend 3.5in of Back Spacing

Tire Fitment:

Sport and Sahara with Full OEM Fenders

35in Tall Tires (2in Bump Stop Height Recommended)

Sport and Sahara with Trimmed or High Lined OEM Fenders

37in Tall Tires (3in Bump Stop Height Recommended)

Rubicon with Full OEM Fenders

37in Tall Tires (2in Bump Stop Height Recommended)

Rubicon with Trimmed or High Lined OEM Fenders

38in Tall Tires (3in Bump Stop Height Recommended)

 General Notes:

All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).

XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.

If building with a spare delete we recommend dropping 1in in coil lift height for the rear.

If building an overland or heavily up-fitted build in the back, we recommend upsizing 1in in coil lift height for the rear.

We recommend a new front driveshaft if you plan to off-road routinely.(Adam's Drivesahft,Tom Woods,J.E. Reel)
