Motobilt DIY Dana 44 Rear Diff Cover

If you can weld and want to build your own diff cover, purchase the Rubicon Rear DIY DIFF Cover M220 for Jeep JL & JT. Motobilt DIY Diff Covers are the same as the fully welded diff covers, but sold as a kit including the pre-formed pieces and hardware you will need to complete the DIY project yourself. Aassembly instructions are included as well.

Why change out your diff cover? We do get asked this question on occasion. The factory diff covers are too thin for abuse on the trail. One of the common factory diff cover failures occurs when the edge gets peeled up from a rock sliding across the diff. Peeling can cause the differential fluid to leak out unknowingly and the result could be damaging the gears when you hit the road to drive home.

Another failure of factory diff covers are from bending the cover into the ring gear which rubs a hole through. The result here is the same with differential fluid leaking out. One other failure is actually puncturing the factory diff cover with a sharp rock. Again, resulting in differential fluid leaking out. Hopefully this explains the need for a heavy-duty diff cover. The Motobilt Heavy Duty Fabricated Diff Covers address the failures I have mentioned to ensure your ring and pinion gear sets are well protected.

All Motobilt Diff Covers include a LIFETIME WARRANTY from trail damage and manufacture defect. We cannot warranty DIY Diff Covers being welded incorrectly.

As with all Motobilt DIY builder parts, an experienced welder is recommended.

Installation Note: We strongly recommend tacking the pieces together and test fitting it onto the axle before finish welding. We also recommend using pipe thread tape for the fill plug.

Specifications

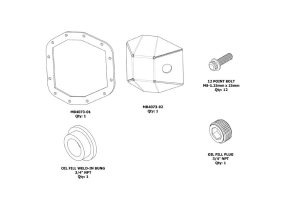

DIY Diff Cover Kit includes:
