Control Arms >Teraflex Alpine IR Long Arm & Bracket Kit - 3in-6in - JL 4dr

Teraflex Alpine IR Long Arm & Bracket Kit - 3in-6in

JL 4dr

INCLUDED IN PRICE

Front Upper Control Arms $484.99

1 x Teraflex Alpine IR Long Control Arms - Front Upper, Adjustable, 3in-6in Lift - JL
TER1310520

Only 2 left!
Front Lower Control Arms $657.99

1 x Teraflex Alpine IR Long Control Arms - Front Lower, Adjustable, 3in-6in Lift - JL
TER1310500

Only 2 left!
Rear Upper Control Arms $657.99

1 x Teraflex Alpine IR Long Control Arms - Rear Upper, Adjustable, 3in-6in Lift - JL
TER1310560

Out of Stock. Average time to ship: 1-2 business days
Rear Lower Control Arms $657.99

1 x Teraflex Alpine IR Long Arms - Rear Lower, Adjustable, 3in-6in Lift - JL
TER1310540

Only 1 left!
Long Arm Bracket Kit $1,111.99

1 x Teraflex Alpine Long Arm Brackets - 3in-6in - JL 4dr
TER1958000

Only 1 left!

$3,570.95

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 1310510

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

Teraflex Alpine IR Long Arm & Bracket Kit- JL Features:

Fits: JL Wrangler Unlimited (4-door), 3-6” Lift

Durable 42mm x 4mm wall DOM (Drawn Over Mandrel) tube provides maximum strength for upper Alpine IR Long Control Arms, 50mm x 5mm wall DOM tube for lower Alpine IR Long Control Arms

Adjustable Alpine IR Long Control Arms for correct suspension alignment

Re-centers axles in the wheel well for proper suspension movement

Full range of movement will not restrict articulation or flex off-road

IR (Independent Rotation) Bushings

Zero maintenance forged threaded joints for smooth quiet flex

Premium black e-dipped coating on tube and forged rod end housing

Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

TeraFlex Lifetime Warranty against defects

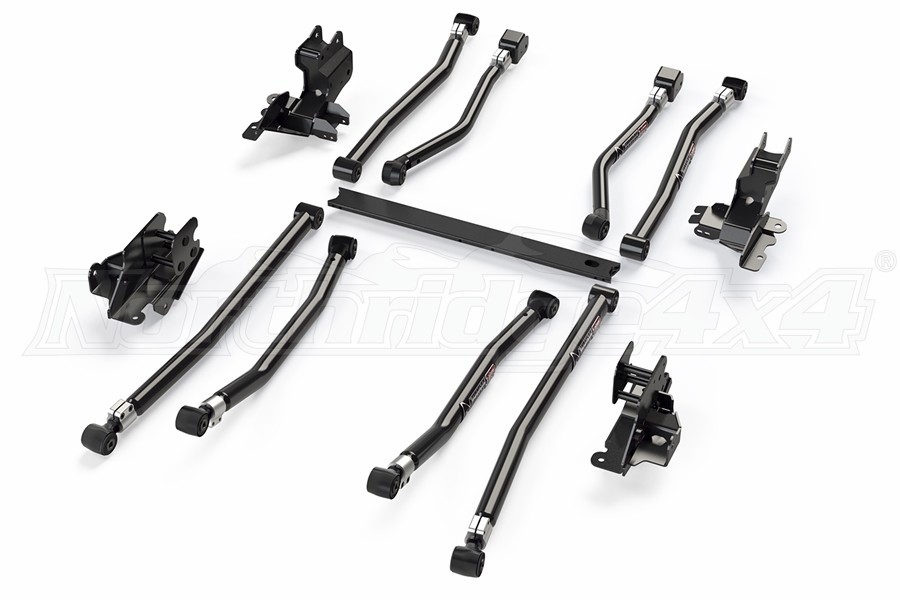

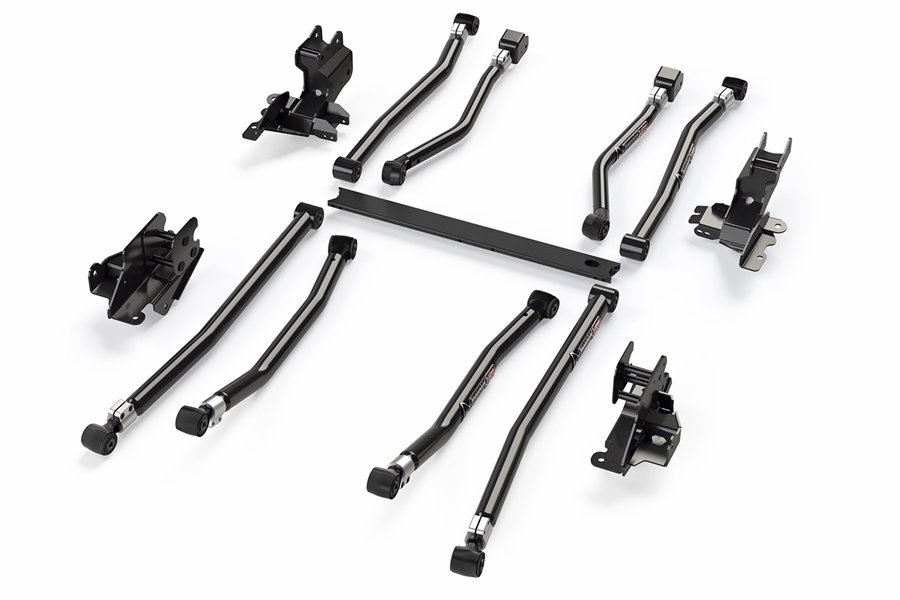

Kit Includes:

Alpine IR Long Control Arm Kit – 8-Arm Adjustable (# 1310505):

Front Upper (# 1310520) – pair

Front Lower (# 1310500) – pair

Rear Upper (# 1310560) – pair

Rear Lower (# 1310540) – pair

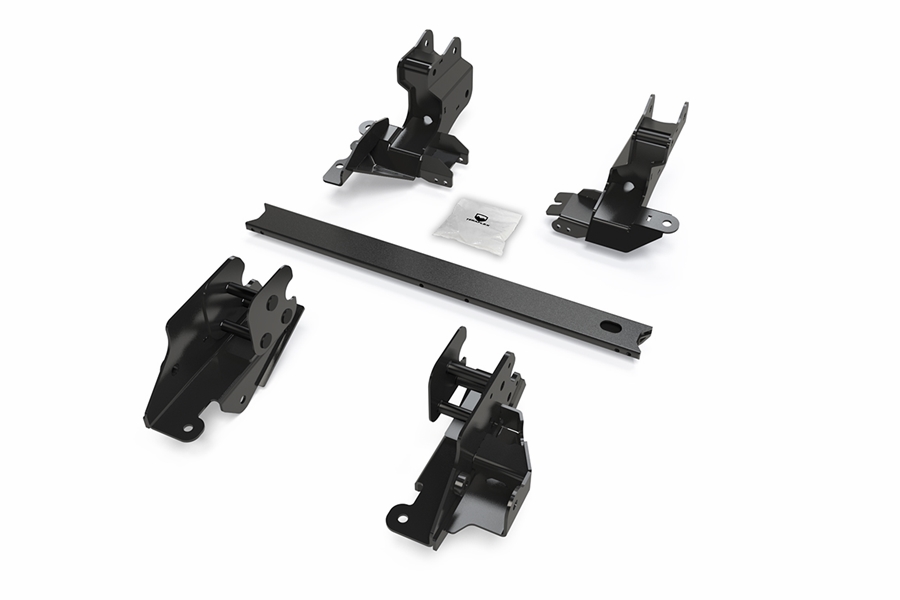

Alpine Long Arm Bracket Kit (# 1958002):

Front Brackets – pair

Rear Brackets – pair

Cross Member

All necessary hardware

Daily drivers and die-hard Jeepers can reap the rewards from the JL Alpine IR Long Arm and Bracket Kit TeraFlex JL 4dr: Alpine IR Long Control Arms & Alpine Long Arm Brackets provide complete alignment adjustability for maximum performance on JL Wrangler/Unlimited models with 3-6” lifts. Suspension drooping, flexing, axel torque, and just daily road use can put major stress on your bushings. TeraFlex has curated IR (Independent Rotation) bushings essentially eliminate common bushings and joint failure. The IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping and ride quality. A 2-piece, hard steel bearing surface rotates inside the bushing as the suspension droops and compresses. 2 O-rings protect the inside from any debris and keep the bushings truly maintenance-free. On higher lifts, Alpine IR Long Control Arms and Brackets reposition the frame-end control arm mounting points to restore near factory orientation. TeraFlex has streamlined frame-end mounting points provide both upper and lower mounts in each bracket, keeping installation simpler and maintaining a factory look. Innovative Independent Rotation bushings are built to last for extreme off-road use Alpine Long Arm Brackets reposition the frame-end control arm mounting point. This aims to restore near factory orientation, reducing bushing stress during droop and shock load transferred through the control arms. Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing. This package can re-center axles in the wheel well for proper suspension movement and can also be used to increase wheelbase. Adjustable Alpine IR Long Control Arms optimize caster angle and tune anti-squat geometry for proper suspension alignment. Can be added to an existing suspension lift. Alignment and removal of factory control arm bracketry is required. See the installation guide for more details.

Alpine IR Long Control Arm and Bracket Kit; JL (4dr, 3-6” lift) Specifications:

JL: Alpine IR Long Control Arm Kit – Front Upper Adjustable – (# 1310520):

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 20.185”

Min. Length = 27-3/8”

Max. Length = 28-7/8”

Axle End = 7/16” (12mm) Bolt

Frame End = 9/16” (14mm) Bolt

JL: Alpine IR Long Control Arm Kit – Front Lower Adjustable – (# 1310500):

Tube Diameter & Wall = 50mm x 5mm

Factory Length = 24”

Min. Length = 33-3/4”

Max. Length = 35-1/4”

Both Ends = 9/16” (14mm) Bolt

JL: Alpine IR Long Control Arm Kit – Rear Upper Adjustable – (# 1310560):

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 17.425”

Min. Length = 20”

Max. Length = 21-1/2”

Both Ends = 9/16” (14mm) Bolt

JL: Alpine IR Long Control Arm Kit – Rear Lower Adjustable – (# 1310540):

Tube Diameter & Wall = 50mm x 5mm

Factory Length = 19-3/4”

Min. Length = 35-3/4”

Max. Length = 37-1/4”

Both Ends = 9/16” (14mm) Bolt

Note(s):

Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.

Alpine IR Long Control Arms and Alpine Long Control Arms MUST be used w/ Alpine Long Arm Bracket Kit (JL 2-Door: 1958002; JL 4-Door: # 1958000) – INCLUDED.

Install Time: 16 Hours
