Synergy Front Track Bar and Sector Shaft Brace

JT/JL

Read 5 Reviews | 2 Q&As
Part # 8869-01
$250.00
+$ Oversize Shipping Surcharge

In stock!
ANY QUESTIONS?

Features & Product Details

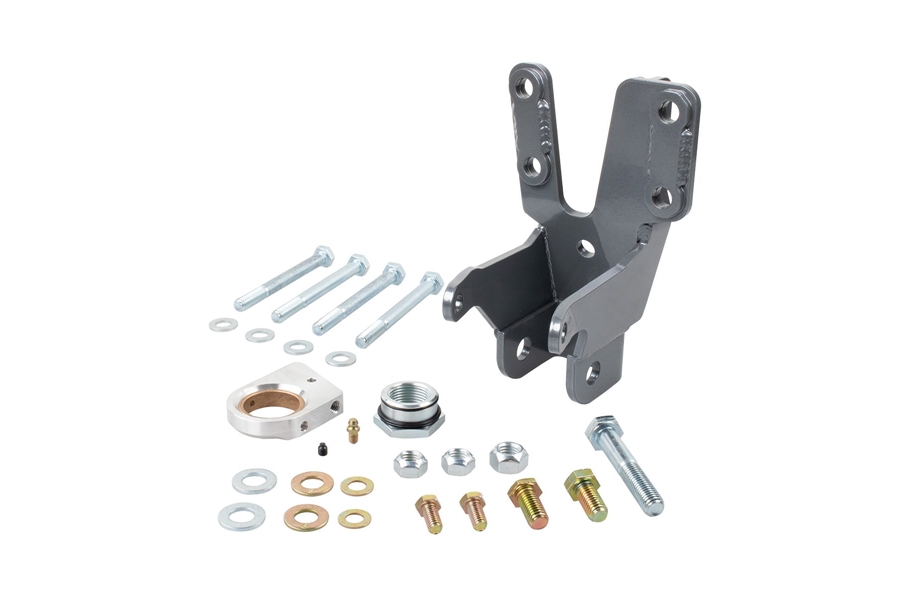

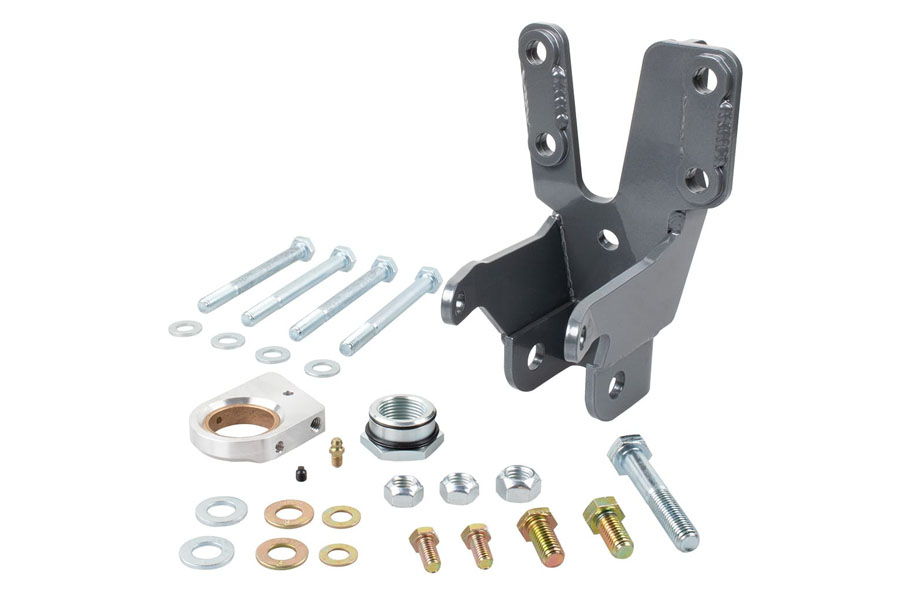

Synergy Front Track Bar and Sector Shaft Brace Features:
  • Brace for front track bar and sector shaft
  • Prevents damage to track bar & steering box
  • Ideal for lifted vehicles and running larger tires
  • Resilient Steel and aluminum construction
  • Grey powder-coat finish
  • Straightforward installation
  • Limited Lifetime Warranty
  • Sold as a kit
  • Reinforcement for the Off-Road Trails Lifting your Jeep and installing larger tires/wheels can significantly improve your off-road capabilities, but this process isn't without issues. A notable problem that can occur includes added load to the frame side track bar bracket and the steering box sector shaft. If the stress from the added load isn't addressed, this can result in failure of the track bar or steering box. The perfect solution to prevent this happening is by picking up the Synergy Front Track bar and Sector Shaft Brace. The bracing system is designed to support the frame side track bar bracket and steering box sector shaft to release any stress that comes with upgraded your Jeep's suspension components. Dependable Build Quality & Installation Info To ensure superior performance and quality, both the front track bar brace and sector shaft brace are crafted using advanced CNC-forming machines. Specifically, the front track bar brace is laser-cut and formed from 0.187-inch thick plate for superior strength and long-lasting functionality. Likewise, the sector shaft brace is constructed using 6061-T6 aluminum alloy and features a press-fit bronze bushing. Additionally, the braces are finished with a durable grey powder-coating to combat the damaging affects of rust and corrosion. Installation for these braces are made simple and straightforward as they only require a direct bolt-on process. Best of all, this kit is backed by a Limited Lifetime Warranty to help keep your investment protected.

    Notes:

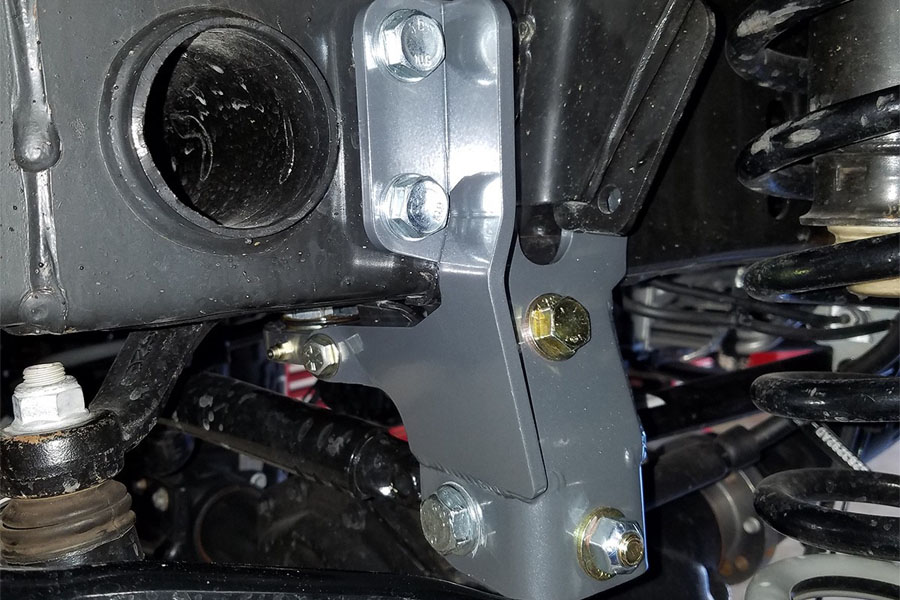

  • This is not a replacement track bar bracket. This is a brace to reinforce the stock frame-side front track bar bracket.
  • If your stock track bar bracket is damaged, complete required repairs before installing this product.
  • No bump stop spacing is required when used in conjunction with the 8875-01 Synergy MFG Front Track Bar.
  • If using the stock front track bar, a minimum 2” of bump stop spacing is required.
  • If using an aftermarket front track bar, the front springs should be removed and the suspension cycled to full bump to determine the bump stop spacing required to prevent the track bar from contacting the sector shaft nut, or any other interference.
  • NOT compatible with JT Gladiator Mojave or Sahara models with Diesel engine, Jeep added a gusset to the coil bucket which interferes with fitment. This gusset must be removed with a grinder in order to clear the 8869-01 brace.
  • Product Video

    Specifications

    Brand: Synergy Manufacturing
    Color: Black
    Location: Front
    Qty: 1
    Mfgr. Warranty: 1 Year Limited
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    5 Reviews
    4.8 out of 5 Stars
    5 Stars
    (4)
    4 Stars
    (1)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos
    Synergy Front Track Bar and Sector Shaft Brace ( Part Number: 8869-01)
    Synergy Front Track Bar and Sector Shaft Brace ( Part Number: 8869-01)
    Synergy Front Track Bar and Sector Shaft Brace ( Part Number: 8869-01)
    Does the job 2 months ago
    5out of 5stars
    Slow Your Roll
    Researched this part for some time. Finally decided it was a purchase I would make. Arrived fast. Had to wait on the 42 mm socket for the pitman arm to arrive before install. Took a couple of hours to install. Pretty straight forward. I lubber the brass before installing it to make sure it was 100% covered. Only delay on the install was I had to purchase a heavier torque wrench which I needed anyway. Definitely stopped the wondering and play in the wheel.

    Was this review helpful?
    Solid 2 months ago
    5out of 5stars
    Jon k
    Works great and the install is easy. The powder coating did chip as I tightened the bolts and the trackbar bolt hole is a little off. It does tighten up your steering as described.

    Was this review helpful?
    1 of 1 people found the following review helpful
    Solid 2 months ago
    5out of 5stars
    Jon k
    Well designed and fitment is snug but works well with my big bore gear box. The powder coating flaked a little when tightening some of the bolts but that’s not a deal breaker. Piece of mind is more important then flaking powder coating.

    Was this review helpful?
    1 of 1 people found the following review helpful
    Solid Product 3 months ago
    4out of 5stars
    Hudson_Neon
    This bracket is certainly solid. It's not exactly an easy install, but worth it. If you're not mechanically inclined, leave this one to a professional.

    Was this review helpful?
    2 of 2 people found the following review helpful
    Definitely Strengthens And Helps Steering 2 years ago
    5out of 5stars
    gcoop5508
    Installed this 3 months and 4k miles ago, at same time I installed a lift, Synergy tie rod and drag link, and 37in tires on a 2018 JLUR. The installation was easy, straightforward, and the instructions were good. Post install, my steering was excellent and I believe this brace played a big part in it. However, recently I began hearing a creaking sound coming from the pitman arm/steering box. I removed the machined sector shaft brace and found the bronze bushing had turned so the zerk fitting was no longer aligned with the lubrication hole in the bushing. I drilled and tapped a hole on the brace and installed a set screw after realigning the bronze bushing with the zerk fitting. Another option would have been to apply red loctite to the exterior of the bronze bushing and hope this kept the bushing from turning. Overall, I am confident in this brace and the peace of mind it provides in strengthening the steering box mount, track bar, and sector shaft. The photo shows the hole in the bushing not being aligned with the zerk fitting. 4 stars for performance due to the bronze bushing turning, but a solid 5 stars overall.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: compatible with Teraflex  Runner2 years ago

      Is this Synergy brace compatible with the Teraflex ST2 lift with Falcon 3.3 piggyback shocks and Teraflex Alpine adjustable front track bar?
      • 0 of 0 people found the following answer helpful

        A:  It should work, but per Synergy: "If using an aftermarket front track bar, the front springs should be removed and the suspension cycled to full bump to determine the bump stop spacing required to prevent the track bar from contacting the sector shaft nut, or any other interference."

        Northridge Kaleb @ Northridge4x4 2 years ago

        Was this answer helpful?
    • Q: PSC compatible?  Bongoray2 years ago

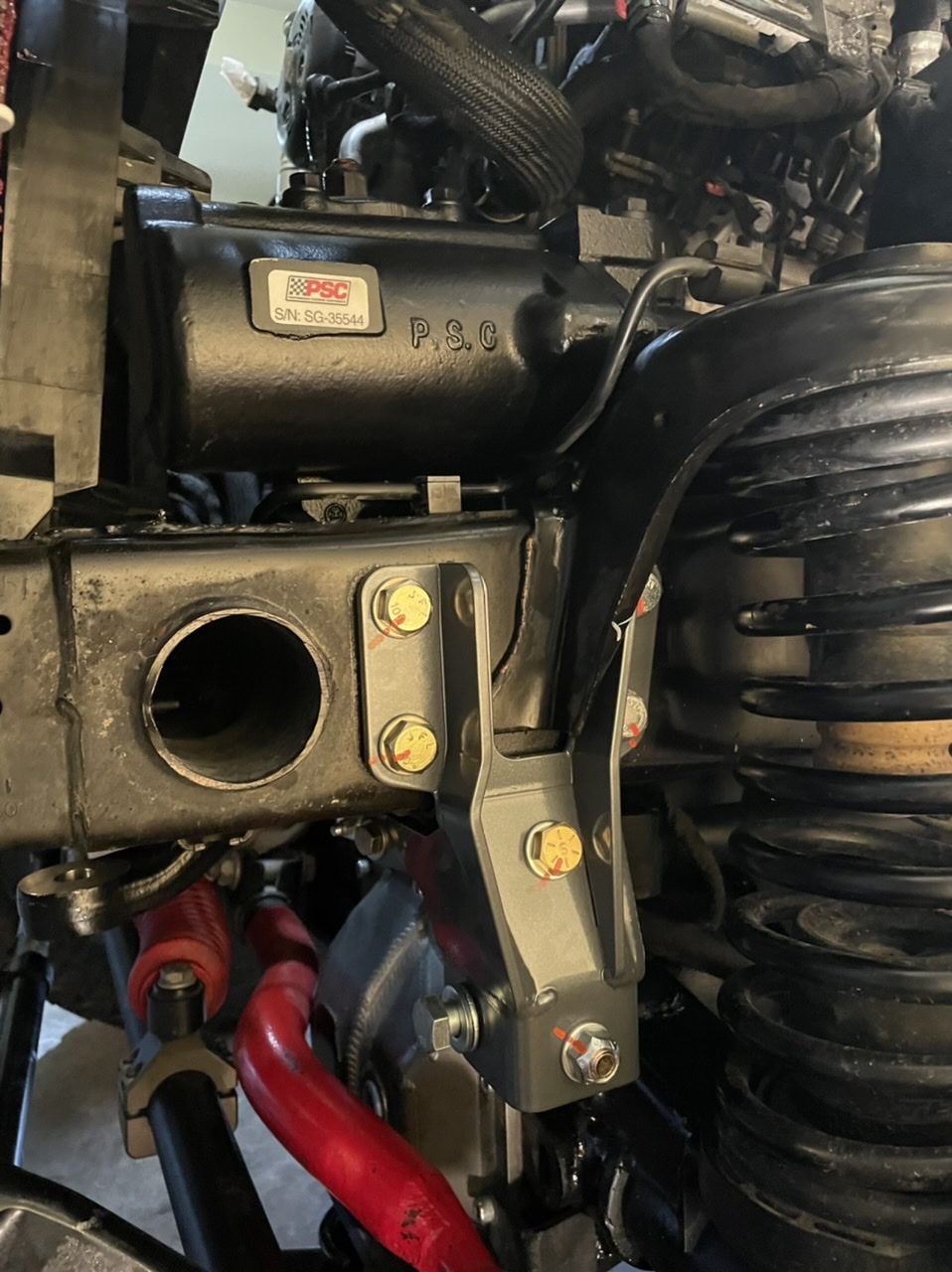

      Will this bracket be compatible with the PSC big bore steering box that comes with the hydro assist kit?
      • 1 of 1 people found the following answer helpful

        A:  Yes it is. From Synergy: "If using PSC Big Bore Steering Box Kit it is necessary to use the Synergy Mfg. Sector Shaft Nut (Part # 8869-10) and PSC Hardware kit (Part # HWK-689-PP)."

        Northridge Kaleb @ Northridge4x4 2 years ago

        Was this answer helpful?
