Clayton 2.5in Premium Lift Kit
JL / JL 4XE
Product Resources
Features & Product Details

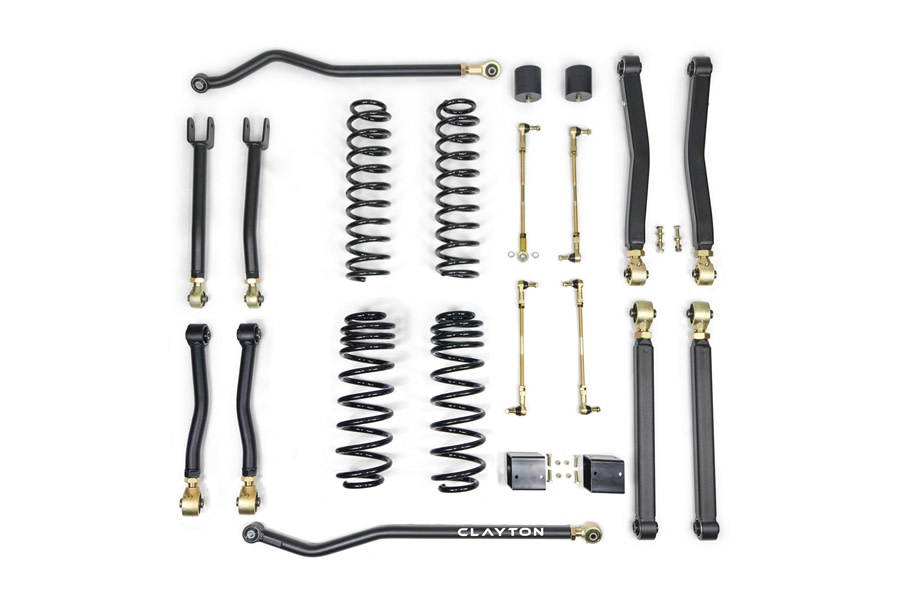

Our NEW 2018+ Jeep Wrangler JL suspension lift systems are designed to provide a smooth ride both on and off road while maintaining excellent handling characteristics. These are complete bolt on systems and can be installed using basic shop tools. The Premium mid-arm system has adjustable control arms front and rear, adjustable track bars front and rear, adjustable sway bar end links front and rear, bump stops front and rear, and all four coils. A system engineered with strength and reliability as a top priority.
The system includes eight adjustable control arms, which carry a lifetime warranty against bending or breaking. The lower front and rear upper arms are dog legged for tire clearance. They are bent properly so the joints are in line at both ends. Our premium arms feature either Johnny Joints or dual durometer self-centering, maintenance free Giiro joint bushings.
The GIIRO joint, with it structured anatomy and superior isolator technology, has bridged the void between rubber and flex joints for the ultimate bushing. GIIRO is a free pivoting, self-lubricating, self-centering, silent in operation and maintenance free bushing. Its structured anatomy matched with superior material formulation allows two distant worlds to meet as one, providing the desirable comfort for daily driving and easily transitioning to meet the extreme limits on rugged off-road terrain.
The Giiro is also used at one end of our adjustable track bars front and rear. The other end has a johnny joint for superior flex, and with a 5” long 1” shank, you have the maximum adjustment necessary, and of course come with our lifetime warranty.

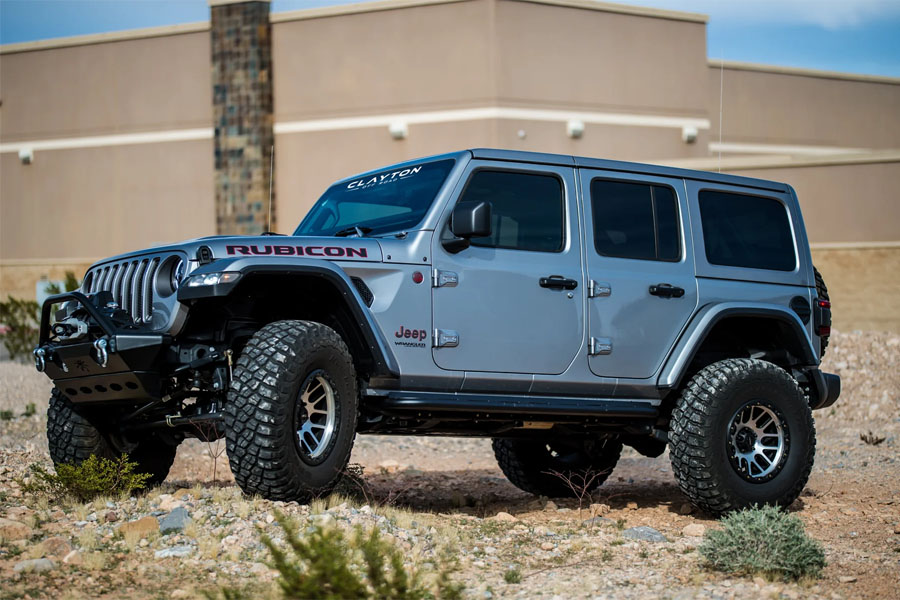

With our 2.5” coils, bumpstops, adjustable end links, your 2018+ JL Rubicon is ready for 37” tires. A Sport or Sahara will fit 35s, and both options require proper rim backspacing to clear.
Gas engine JL's can expect to gain about 1/2" more lift than advertised, 4xE model JL's will gain advertised height.
NOTE: 1. Shocks are optional, and we recommend Fox or Radflo. 2. We recommend 4.75 back spacing.
Product Features:
Product Video
Specifications
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
QUESTIONS & ANSWERS
-
Q: Is this lift kit for 2 doors ? Oscar Arce 5 days ago
I know I can install this lift kit in my JL rubicon 2 door but my question is about the springs, are the springs too rough for a 2 door? …when you select this kit there’s no options (2 doors, 4 doors) so I assume this kit is for 4 doors, if I want it for a 2 doors I have to call you guys and order this kit (premium 2.5) with springs for 2 doors or how does this work?
-
-
1 of
1 people found the
following answer helpful
A: This will work on either 2 or 4 door. On a 2 door, you'll net about an inch more height than on the 4 door.
Northridge Chris @ Northridge4x4 5 days agoWas this answer helpful?
-
