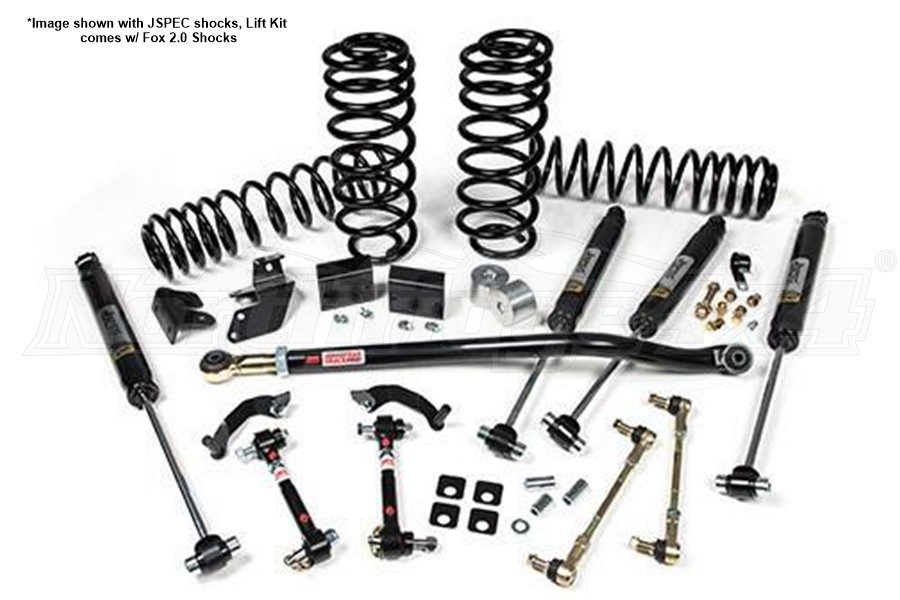

JKS J-Rated 2.5in Suspension System w Fox 2.0 Shocks

Building on the all new Jeep Wrangler JL platform the engineers at JKS Manufacturing have developed the JSPEC 2.5" J-Rated System to giving your JL the upper hand out on the trail with clearance for 35" tires. Engineered to maintaining on-road comfort and handling while improving offroad capability, these new 2.5" J-Rated Systems build on JKS's legacy of innovative solutions building a true dual-purpose platform ready for your next adventure.

At the heart of any true Jeep® suspension system are properly designed coil springs. By developing specially tuned sets of dual rate coils springs, JSPEC™ coils provide the best performance in any driving situation. Whether loaded down with gear for a weeklong expedition, running light for some rock-crawling fun or loaded with a few friends for a trip to the beach, JSPEC™ coils will provide the ride you want and the performance you need. Anticipating the desires of many in the JL community JKS has developed two versions of their dual rate coil spring, the first being the standard dual rate springs offering smooth, predictable performance as well as new heavy duty (HD) dual rate coil springs specially designed for JLs outfitted with winch bumpers, racks and loaded down with other gear. The HD springs net roughly 1/2” more lift than the standard springs and are designed for extra load capacity. Pairing to these coil springs you have the FOX 2.0 adventure series monotube shocks, designed to improved capability when you hit the trail. Next up on the parts list is the JKS adjustable track bar. Known for its strength and superior design, this track bar is formed from 1.5" x .375 wall DOM tubing to mimic the factory bends for front axle clearance and uses a threaded end with jam nut and durometer specific bushings at both ends to properly position the front axle. Also positioning the front axle is a set of lower control arm caster cam locks to correct caster for improved driveability.

When it’s time to hit the trail a supplied sway bar quicker disconnects can be easily removed by pulling the clips and swinging the links up out of the way for increased articulation. These sway bar disconnecting links maintain quiet on-road comfort and quiet operation using an adjustable design with spherical poly-flex ball bushings capable of high-misalignment. New for the JL quicker disconnects is a frame mounted retention bracket to secure your sway bar up out of the way when you’re on the trail. Along with sway bar disconnects to increase articulation a pair of billet aluminum bump stop extensions are also included to control suspension up travel. .

In the rear these 2.5" J-Rated Systems utilize a pair of standard or HD coil spring along with extended length rear sway bar links to correct sway bar operating angle. The rear axle is re-positioned using a heavy-duty rear track bar bracket designed to key off the factory bracket for more strength while centering the rear axle under your JL. Additionally rear bump stop extensions are supplied as well as a matching set of FOX 2.0 performance series shocks to round out this package. Improve not only your new Wrangler JL’s appearance, but its offroad capability and on-road comfort with this new JSPEC 2.5” J-Rated system from JKS Mfg.

Features

Note:

Rubicon

Non-Rubicon

Front bumper with winch should use HD front springs

Full size rear spare tire, or aftermarket tire carrier with full size spare should use HD rear springs

Stock wheels cannot be reinstalled without wheel spacers
