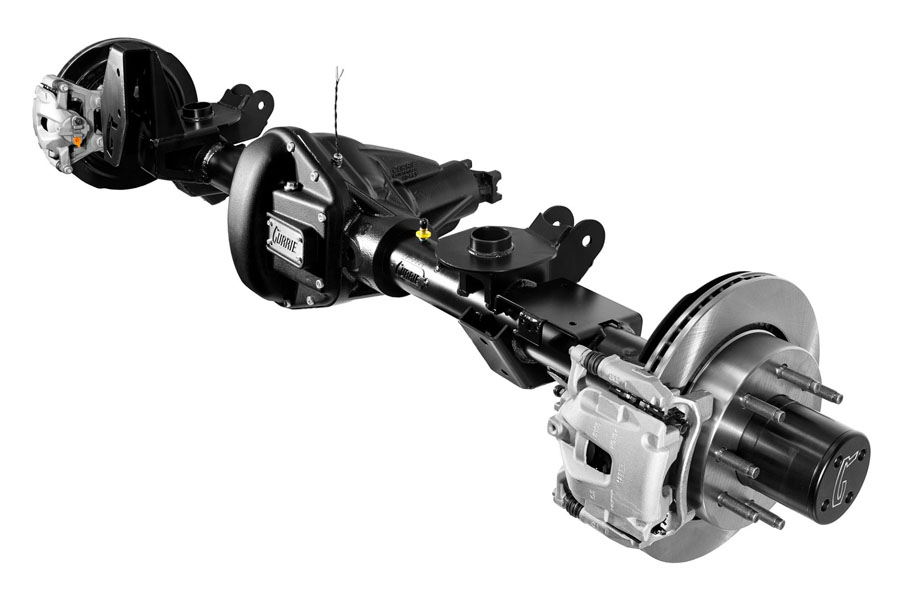

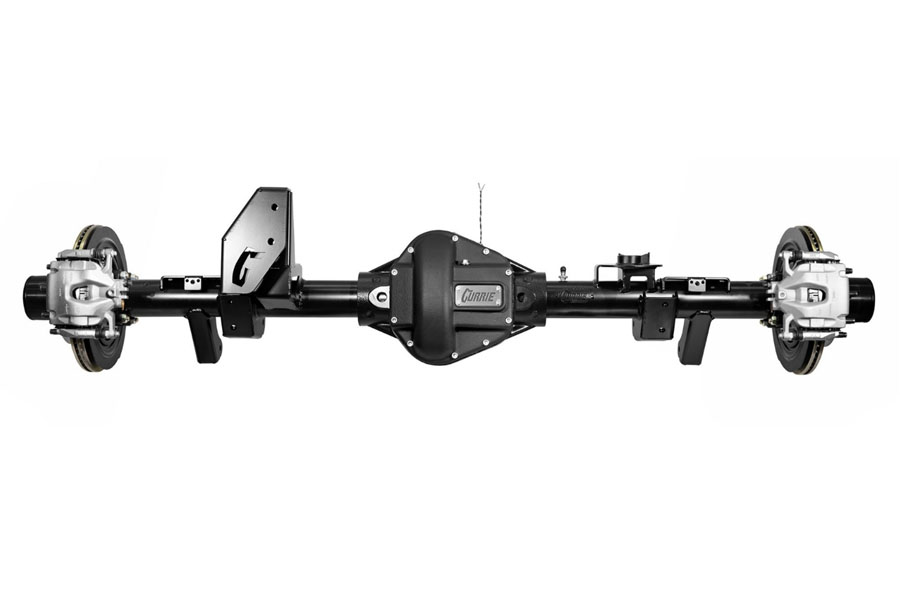

The Currie Extreme 60 1-ton front and rear axle assemblies for the 2018 and newer Jeep Wrangler JL are designed for severe off-road use with up to 42-inch tall tires and V8 horsepower. The reinforced Extreme 60 center castings feature thick walls and heavy webbing, providing ultimate gear strength and durability. The front axle incorporates complete 1-ton inner and outer steering assemblies, and the rear implements 40-spline axles and billet full-floating hubs to deliver ultimate reliability. If you seek out the most challenging routes and most formidable obstacles to conquer, the Extreme 60 axles are a natural choice.
Currie Extreme 60 Details:
Available in 70 or 72.5-Inch Axle Widths
Choice of Front or Rear only, or Full Axle Set
Choice of Low or High-Pinion Rear Axle
Choice of Selectable Locker and Gear Ratio
Exclusive Extreme 60 Features:
Front High-Clearance Center Section with Rotated Cover with Low-Friction Skid Plate Improves Obstacle Slide-Over
Front 1-Ton Inner C's and Outer Steering Knuckles with Currie F350 Unit Bearings are Baja Proven and Ultra4 Tested Tough
Front Heat-Treated Chromoly Tie Rod with 1-Ton Ends
Heat-Treated Chromoly Rear Full-Float Spindles, Billet Hubs, and 40-Spline Axles Deliver Maximum Strength and Durability
Massive 14.250 in. Front and 13.75 in. Rear Vented Rotors Deliver Abundant Stopping Power
8-Lug Wheel Bolt Pattern for Ultimate Reliability
UV Stable Satin Black Powder Coat Finish
Specifications:
Pinion Yoke: 1350 series u-joint
Differential Cover: Currie nodular-iron cover, Red
Axle Tubes: 3.5 inch diameter, .375 wall DOM tube
Suspension Brackets: Heavy gauge 3/16 steel mounting brackets
Width: 70 or 72.5 inches wide (between wheel mounting surfaces)
Wheel Bolt Pattern: 8-lug (8 x 6.5 in.) with 9/16-18 studs
Finish: UV stable satin black powder coat
Floater Spindle: Currie Full-float 2.5-inch heat-treated 4140 Chromoly spindles
Floater Hub: Currie billet steel full-floating hubs with 40-spline drive flanges, JK tone rings installed
Parking Brake: Modified for floater OEM backing plate and parking brake assembly
Note: Image is for illustrative purposes only. Actual product may vary.
