Complete Axle Sets >Currie Enterprises Extreme 60 - Low-Pinion Full-Float Rear Axle w/ 4.88 Gears and E-Locker - JL

Currie Enterprises Extreme 60 - Low-Pinion Full-Float Rear Axle w/ 4.88 Gears and E-Locker

JL

Product Resources

Fitment Details

Features & Product Details

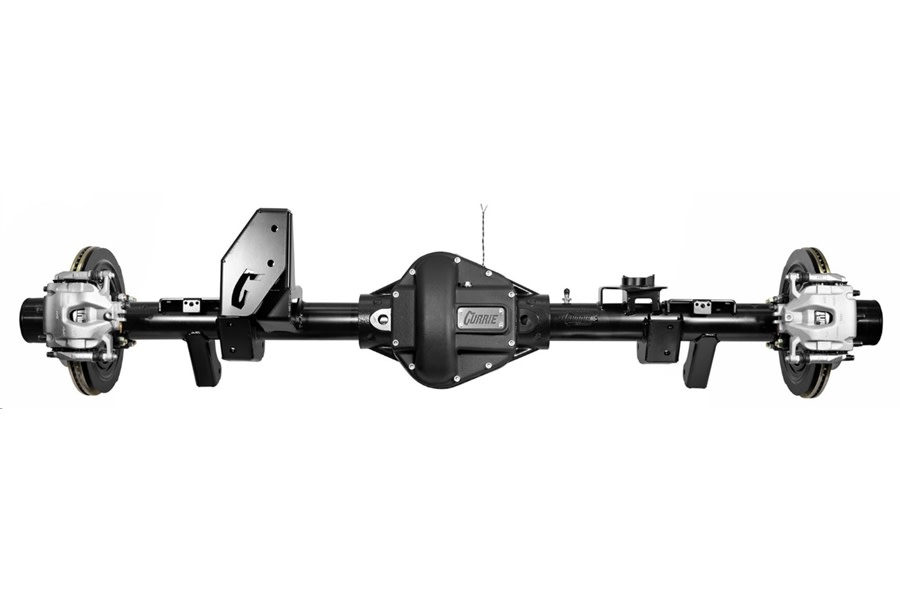

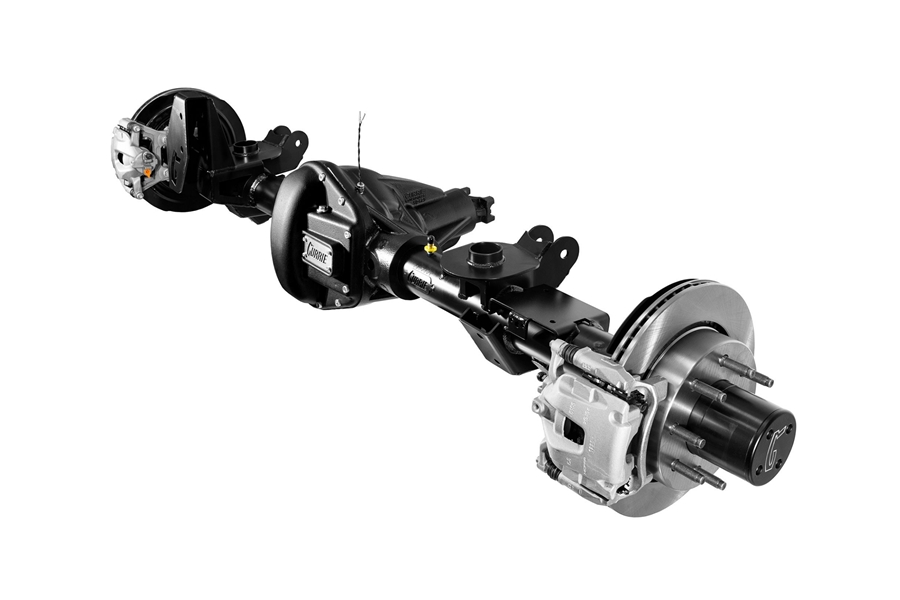

The Currie Extreme 60 low-pinion full-float rear axle for 2018 and newer Jeep Wrangler JL, is the perfect solution for daily drivers, or overland builds with tires up to 42-inches. The Extreme 60 low-pinion rear axle design combines unmatched on-road performance with the reliability of full-floating hubs and the strength of 40-spline axles.

Axle Details:

Fully Assembled Extreme 60 Low-Pinion Rear Axle Assembly

70-Inch Width Provides Improved Clearance for Large Tires

8-Lug Wheel Bolt Pattern for Ultimate Reliability

13.750 in. Brakes Provide Massive Stopping Power with Factory Pedal Feel

Satin Black Powder Coat Finish for Long Lasting Protection

Exclusive Extreme 60 Features:

Massively Reinforced Extreme 60 Center Section

Low-Pinion Standard Cut Gear is the Perfect Fit for Mixed On-Road/Off-Road Use

Desert Race Inspired Rear Billet Steel Full-Floating Hub Assemblies Reduce Weight and Improve Strength, and Reliability

Full-Floating Rear 40-Spline Chromoly Axles Deliver Unmatched Strength and Reliability

Specifications:

Center Section - Extreme 60 Nodular Iron Center Section with thick webbing and reinforcement in critical areas

Differential Carrier - Standard Dana 60 carrier, Typically 4.56 and higher numerical ratios

Pinion Yoke - 1350 u-joint

Differential Cover - Currie nodular-iron cover, Red

Axle Tubes -3.5-inch diameter, .375 wall DOM tube

Axles - Currie Performance double splined full-floating (40-spline 1.7-inch diameter) 4340 heat-treated chromoly

Floater Spindle - Currie Performance 2.5-inch heat-treated 4140 Chromoly spindles

Floater Hub - Currie Performance billet full-floating hubs with 40-spline drive flanges, tone rings installed for ABS and ESP retention

Brake Rotors - 13.750-inch 8-lug vented rotors

Suspension Brackets - Heavy gauge 3/16 steel mounting brackets

Geometry - Optimized for lifted vehicles

Width - 70-inches wide (between wheel mounting surfaces)

Wheel Bolt Pattern - 8-lug (8 x 6.5 in.) with 9/16 studs

Finish - Black satin powder coat

Notes:

ABS Sensors - Does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie Axle

Computer Programming: 2012 and newer vehicles require a computer programmer to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recomended (verify manufacturer vehicle fitment)

Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. Maximum recommended tire size is 42-inches

Overall Width: Axle width is 70-inches (+2 inches over stock) between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires
