Name: Teraflex Alpine Long Control Arms - Full Set, Adjustable, 3in-6in Lift
Brand: Teraflex
SKU: 1316005
Price: 1694.08 USD
Availability: OutOfStock

JL

INCLUDED IN PRICE

Front Lower Control Arms $499.01

1 x Teraflex Alpine Long Arms - Front Lower, Adjustable, 3in-6in Lift - JL/JT
TER1316500

Only 2 left!
Front Upper Control Arms $345.09

1 x Teraflex Alpine Long Control Arms - Front Upper, Adjustable, 3in-6in Lift - JL/JT
TER1316520

Only 2 left!
Rear Lower Control Arms $424.99

1 x Teraflex Alpine Long Control Arms - Rear Lower, Adjustable, 3in-6in Lift - JL
TER1316540

Only 3 left!
Rear Upper Control Arms $424.99

1 x Teraflex Alpine Long Arms - Rear Upper, Adjustable, 3in-6in Lift - JL
TER1316560

Only 2 left!

$1,694.08

Bundle Savings: $1,620.06

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

★★★★★

()
Write a Review | Q&A

Part # 1316005

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

TeraFlex JL: Alpine Long Control Arms and Alpine Long Arm Brackets (not included) provide complete alignment adjustability for maximum performance on JL Wrangler/Unlimited models with 3-6” lifts. Features dependable, maintenance-free, factory-style bushings.

On higher lifts, Alpine Long Control Arms and Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms. Can be added to an existing suspension lift.

Must be used with Alpine Long Arm Bracket Kit (JL 2-Door: 1958002; JL 4-Door: # 1958000) – NOT INCLUDED.

INCLUDES:

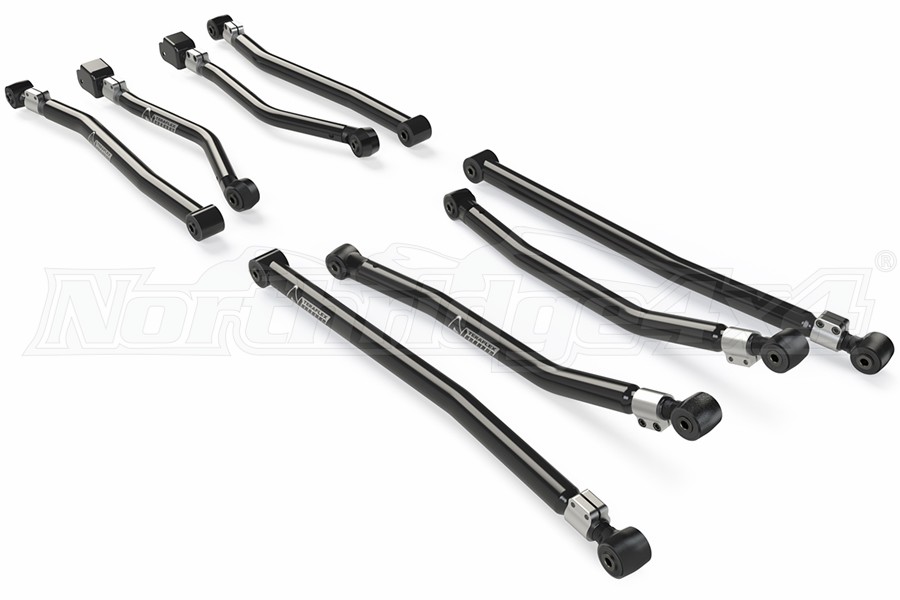

Alpine Long Control Arms – Adjustable:

Front Upper (# 1316520) – pair

Front Lower (# 1316500) – pair

Rear Upper (# 1316560) – pair

Rear Lower (# 1316540) – pair

FEATURES:

Durable 42mm x 4mm wall DOM (Drawn Over Mandrel) tube provides maximum strength for upper Alpine Long Control Arms

Durable 50mm x 5mm wall DOM tube provides maximum strength for lower Alpine Long Control Arms

Adjustable Alpine Long Control Arms optimize caster angle and tune anti-squat geometry for proper suspension alignment

Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

Full-range of movement will not restrict articulation or flex off-road

High-quality, dependable, maintenance-free, factory-style bushings provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics

Zero maintenance forged threaded joints for smooth quiet flex

Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing and Brackets

Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

SPECS:

JL: Alpine Long Control Arm Kit – Front Upper Adjustable – (# 1316520):

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 20.185”

Min. Length = 27-3/8”

Max. Length = 28-7/8”

Axle End = 7/16” (12mm) Bolt

Frame End = 9/16” (14mm) Bolt

JL: Alpine Long Control Arm Kit – Front Lower Adjustable – (# 1316500):

Tube Diameter & Wall = 50mm x 5mm

Factory Length = 24”

Min. Length = 33-3/4”

Max. Length = 35-1/4”

Both Ends = 9/16” (14mm) Bolt

JL: Alpine Long Control Arm Kit – Rear Upper Adjustable – (# 1316560):

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 17.425”

Min. Length = 20”

Max. Length = 21-1/2”

Both Ends = 9/16” (14mm) Bolt

JL: Alpine Long Control Arm Kit – Rear Lower Adjustable – (# 1316540):

Tube Diameter & Wall = 50mm x 5mm

Factory Length = 19-3/4”

Min. Length = 35-3/4”

Max. Length = 37-1/4”

Both Ends = 9/16” (14mm) Bolt

NOTE:

Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.

Alpine IR Long Control Arms and Alpine Long Control Arms MUST be used w/ Alpine Long Arm Bracket Kit (JL 2-Door: 1958002; JL 4-Door: # 1958000) – NOT INCLUDED.
