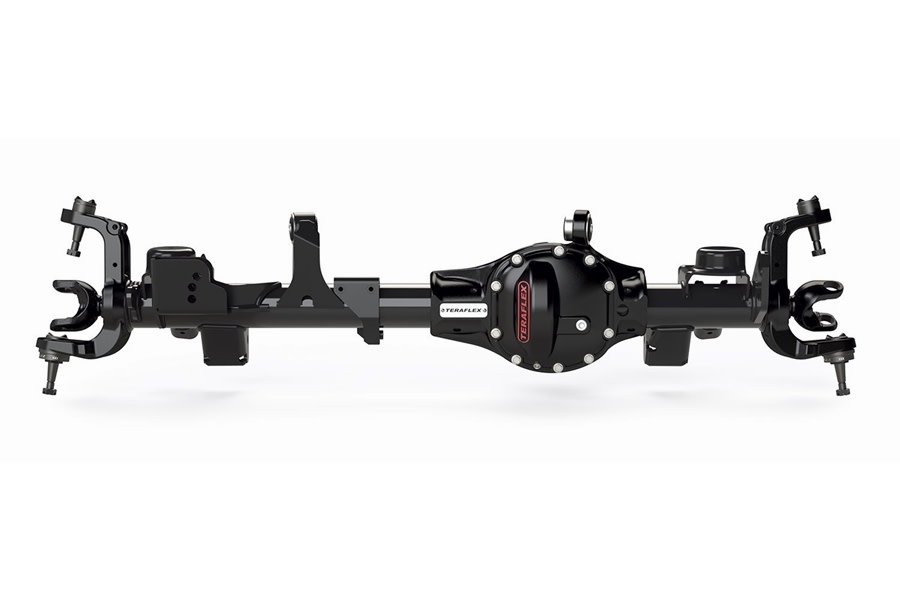

Teraflex Front Tera30 HD Axle Housing w/ 4.10 R&P and ARB Locker - 0-5in Lift - JL

Teraflex Front Tera30 HD Axle Housing w/ 4.10 R&P and ARB Locker - 0-5in Lift

JL

Teraflex Front Tera30 HD Axle Housing w/ 4.10 R&P and ARB Locker - 0-5in Lift - JL
Write a Review | Q&A
Part # 3630410We price match! Call 866-601-5340!
We Price Match
$4,999.99

Out of Stock. Average time to ship: 1-2 business days
Qualifies for
free shipping!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
TeraflexAuthorized
Dealer

Product Resources

Features & Product Details

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JL and JK Wrangler/Unlimited and JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle’s weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, front inner axle shafts (JL and JT), bracketry, and forged inner knuckles as well as pre-installed inner axle seals and upper control arm bushings.

Stepping up to our HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides an ARB air locker, a choice of pre-installed ring & pinion gears, front inner axle shafts (JL and JT), and TeraFlex HD Ball Joints. Transfer your existing outer components (stub shafts, unit bearings, knuckle assembly, brakes, sensors) to make a complete axle assembly! Compatible with Dana 30 AdvanTEK (M186) internal components.

Features & Benefits

  • WMS-WMS: 66.5”
  • Axle Tube: 3.25” x 0.5”
  • Locker: 27-Spline
  • Axle Shafts: 27-Spline
  • Wheel Bolt Pattern: 5x5”
  • Gear Ratio: 4.10
  • Eliminates center axle disconnect
  • Compatible with Dana 30 AdvanTEK (M186) internal components

    • Tera30 HD Front Axle:

  • 3.25” O.D. x 0.5” wall extreme duty axle tube increases torsional strength to resist bending (JL)
  • Asymmetric housing design for extra-long tube side strength
  • Pre-installed inner axle seals
  • HD forged inner knuckles w/ greater upper and lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover w/ increased cover mounting area
  • Smooth radius bottom design to glide over rocks and obstacles
  • Integrated lower control arm skid plates
  • High-flow oil passages and bottom oil drain hole for simple fluid changes
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4”-thick CNC laser cut axle brackets for extreme strength
  • Integrated factory location upper control arm mount
  • Pre-installed upper control arm bushings
  • Proper pinion angle and raised track bar bracket for lifted applications
  • Pre-drilled holes on spring perches for bump stop extension bolts
  • Retains all factory ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty

    • Notes:

  • Does NOT work w/ Front Axle Disconnect.
  • Factory Front Inner Right Axle Shaft – does NOT work w/ Tera30 HD Front Axle Housing.
  • Tera30 HD Front Inner Right Axle Shaft will work w/ factory Dana 30 AdvanTEK (M186) Front Axle.

    • Specifications

    Brand: Teraflex
    Axle Type: Dana 30
    Bolt Pattern: 5x5
    Ratio: 4.10
    Spline Count: 27
    Tubing Diameter: 3.25in
    Width: 66.5in
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
