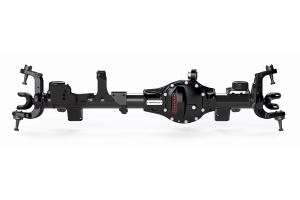

Teraflex Front Tera30 HD Axle Housing w/ 5.13 R&P and  ARB Locker - 0-5in Lift - JL

Teraflex Front Tera30 HD Axle Housing w/ 5.13 R&P and ARB Locker - 0-5in Lift

JL

Teraflex Front Tera30 HD Axle Housing w/ 5.13 R&P and  ARB Locker - 0-5in Lift - JL
Write a Review | Q&A
Part # 3630513We price match! Call 866-601-5340!
$4,999.99
+$ Oversize Shipping Surcharge

Out of Stock. Average time to ship: 7-10 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JL and JK Wrangler/Unlimited and JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle’s weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, front inner axle shafts (JL and JT), bracketry, and forged inner knuckles as well as pre-installed inner axle seals and upper control arm bushings.

Stepping up to our HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides an ARB air locker, a choice of pre-installed ring & pinion gears, front inner axle shafts (JL and JT), and TeraFlex HD Ball Joints. Transfer your existing outer components (stub shafts, unit bearings, knuckle assembly, brakes, sensors) to make a complete axle assembly! Compatible with Dana 30 AdvanTEK (M186) internal components.

Features & Benefits

  • WMS-WMS: 66.5”
  • Axle Tube: 3.25” x 0.5”
  • Locker: 27-Spline
  • Axle Shafts: 27-Spline
  • Wheel Bolt Pattern: 5x5”
  • Gear Ratio: 5.13
  • Eliminates center axle disconnect
  • Compatible with Dana 30 AdvanTEK (M186) internal components
  •

    Tera30 HD Front Axle:

  • 3.25” O.D. x 0.5” wall extreme duty axle tube increases torsional strength to resist bending (JL)
  • Asymmetric housing design for extra-long tube side strength
  • Pre-installed inner axle seals
  • HD forged inner knuckles w/ greater upper and lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover w/ increased cover mounting area
  • Smooth radius bottom design to glide over rocks and obstacles
  • Integrated lower control arm skid plates
  • High-flow oil passages and bottom oil drain hole for simple fluid changes
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4”-thick CNC laser cut axle brackets for extreme strength
  • Integrated factory location upper control arm mount
  • Pre-installed upper control arm bushings
  • Proper pinion angle and raised track bar bracket for lifted applications
  • Pre-drilled holes on spring perches for bump stop extension bolts
  • Retains all factory ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
  •

    Notes:

  • Does NOT work w/ Front Axle Disconnect.
  • Factory Front Inner Right Axle Shaft – does NOT work w/ Tera30 HD Front Axle Housing.
  • Tera30 HD Front Inner Right Axle Shaft will work w/ factory Dana 30 AdvanTEK (M186) Front Axle.
  • Specifications

    Brand: Teraflex
    Axle Type: Dana 30
    Bolt Pattern: 5x5
    Ratio: 5.13
    Spline Count: 27
    Tubing Diameter: 3.25in
    Width: 66.5in
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Wrangler JL
    Freedom
    2023 Jeep Wrangler JL Freedom
    Freedom I4 Turbo
    2023 Jeep Wrangler JL Freedom I4 Turbo
    Rubicon
    2018 Jeep Wrangler JL Rubicon
    2019 Jeep Wrangler JL Rubicon
    2020 Jeep Wrangler JL Rubicon
    2021 Jeep Wrangler JL Rubicon
    2022 Jeep Wrangler JL Rubicon
    2023 Jeep Wrangler JL Rubicon
    Rubicon I4 Turbo
    2018 Jeep Wrangler JL Rubicon I4 Turbo
    2019 Jeep Wrangler JL Rubicon I4 Turbo
    2020 Jeep Wrangler JL Rubicon I4 Turbo
    2021 Jeep Wrangler JL Rubicon I4 Turbo
    2022 Jeep Wrangler JL Rubicon I4 Turbo
    2023 Jeep Wrangler JL Rubicon I4 Turbo
    Sport
    2018 Jeep Wrangler JL Sport
    2019 Jeep Wrangler JL Sport
    2020 Jeep Wrangler JL Sport
    2021 Jeep Wrangler JL Sport
    2022 Jeep Wrangler JL Sport
    2023 Jeep Wrangler JL Sport
    Sport I4 Turbo
    2018 Jeep Wrangler JL Sport I4 Turbo
    2019 Jeep Wrangler JL Sport I4 Turbo
    2020 Jeep Wrangler JL Sport I4 Turbo
    2021 Jeep Wrangler JL Sport I4 Turbo
    2022 Jeep Wrangler JL Sport I4 Turbo
    2023 Jeep Wrangler JL Sport I4 Turbo
    Sport S
    2018 Jeep Wrangler JL Sport S
    2019 Jeep Wrangler JL Sport S
    2020 Jeep Wrangler JL Sport S
    2021 Jeep Wrangler JL Sport S
    2022 Jeep Wrangler JL Sport S
    2023 Jeep Wrangler JL Sport S
    Sport S I4 Turbo
    2018 Jeep Wrangler JL Sport S I4 Turbo
    2019 Jeep Wrangler JL Sport S I4 Turbo
    2020 Jeep Wrangler JL Sport S I4 Turbo
    2021 Jeep Wrangler JL Sport S I4 Turbo
    2022 Jeep Wrangler JL Sport S I4 Turbo
    2023 Jeep Wrangler JL Sport S I4 Turbo
    Unlimited Freedom
    2023 Jeep Wrangler JL Unlimited Freedom
    Unlimited Freedom Diesel
    2023 Jeep Wrangler JL Unlimited Freedom Diesel
    Unlimited Freedom I4 Turbo
    2023 Jeep Wrangler JL Unlimited Freedom I4 Turbo
    Unlimited High Altitude
    2022 Jeep Wrangler JL Unlimited High Altitude
    2023 Jeep Wrangler JL Unlimited High Altitude
    Unlimited High Altitude 4xe
    2021 Jeep Wrangler JL Unlimited High Altitude 4xe
    2022 Jeep Wrangler JL Unlimited High Altitude 4xe
    2023 Jeep Wrangler JL Unlimited High Altitude 4xe
    Unlimited High Altitude Diesel
    2022 Jeep Wrangler JL Unlimited High Altitude Diesel
    2023 Jeep Wrangler JL Unlimited High Altitude Diesel
    Unlimited High Altitude I4 Turbo
    2022 Jeep Wrangler JL Unlimited High Altitude I4 Turbo
    2023 Jeep Wrangler JL Unlimited High Altitude I4 Turbo
    Unlimited Rubicon
    2018 Jeep Wrangler JL Unlimited Rubicon
    2019 Jeep Wrangler JL Unlimited Rubicon
    2020 Jeep Wrangler JL Unlimited Rubicon
    2021 Jeep Wrangler JL Unlimited Rubicon
    2022 Jeep Wrangler JL Unlimited Rubicon
    2023 Jeep Wrangler JL Unlimited Rubicon
    Unlimited Rubicon 392
    2021 Jeep Wrangler JL Unlimited Rubicon 392
    2022 Jeep Wrangler JL Unlimited Rubicon 392
    2023 Jeep Wrangler JL Unlimited Rubicon 392
    Unlimited Rubicon 4xe
    2021 Jeep Wrangler JL Unlimited Rubicon 4xe
    2022 Jeep Wrangler JL Unlimited Rubicon 4xe
    2023 Jeep Wrangler JL Unlimited Rubicon 4xe
    Unlimited Rubicon Diesel
    2020 Jeep Wrangler JL Unlimited Rubicon Diesel
    2021 Jeep Wrangler JL Unlimited Rubicon Diesel
    2022 Jeep Wrangler JL Unlimited Rubicon Diesel
    2023 Jeep Wrangler JL Unlimited Rubicon Diesel
    Unlimited Rubicon I4 Turbo
    2018 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2019 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2020 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2021 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2022 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    Unlimited Sahara
    2018 Jeep Wrangler JL Unlimited Sahara
    2019 Jeep Wrangler JL Unlimited Sahara
    2020 Jeep Wrangler JL Unlimited Sahara
    2021 Jeep Wrangler JL Unlimited Sahara
    2022 Jeep Wrangler JL Unlimited Sahara
    2023 Jeep Wrangler JL Unlimited Sahara
    Unlimited Sahara 4xe
    2021 Jeep Wrangler JL Unlimited Sahara 4xe
    2022 Jeep Wrangler JL Unlimited Sahara 4xe
    2023 Jeep Wrangler JL Unlimited Sahara 4xe
    Unlimited Sahara Altitude
    2022 Jeep Wrangler JL Unlimited Sahara Altitude
    2023 Jeep Wrangler JL Unlimited Sahara Altitude
    Unlimited Sahara Altitude Diesel
    2022 Jeep Wrangler JL Unlimited Sahara Altitude Diesel
    2023 Jeep Wrangler JL Unlimited Sahara Altitude Diesel
    Unlimited Sahara Altitude I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sahara Altitude I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sahara Altitude I4 Turbo
    Unlimited Sahara Diesel
    2020 Jeep Wrangler JL Unlimited Sahara Diesel
    2021 Jeep Wrangler JL Unlimited Sahara Diesel
    2022 Jeep Wrangler JL Unlimited Sahara Diesel
    2023 Jeep Wrangler JL Unlimited Sahara Diesel
    Unlimited Sahara I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2021 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    Unlimited Sport
    2018 Jeep Wrangler JL Unlimited Sport
    2019 Jeep Wrangler JL Unlimited Sport
    2020 Jeep Wrangler JL Unlimited Sport
    2021 Jeep Wrangler JL Unlimited Sport
    2022 Jeep Wrangler JL Unlimited Sport
    2023 Jeep Wrangler JL Unlimited Sport
    Unlimited Sport Altitude
    2022 Jeep Wrangler JL Unlimited Sport Altitude
    2023 Jeep Wrangler JL Unlimited Sport Altitude
    Unlimited Sport Altitude Diesel
    2022 Jeep Wrangler JL Unlimited Sport Altitude Diesel
    2023 Jeep Wrangler JL Unlimited Sport Altitude Diesel
    Unlimited Sport Altitude I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sport Altitude I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sport Altitude I4 Turbo
    Unlimited Sport Diesel
    2020 Jeep Wrangler JL Unlimited Sport Diesel
    2021 Jeep Wrangler JL Unlimited Sport Diesel
    2022 Jeep Wrangler JL Unlimited Sport Diesel
    2023 Jeep Wrangler JL Unlimited Sport Diesel
    Unlimited Sport I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2021 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sport I4 Turbo
    Unlimited Sport S
    2018 Jeep Wrangler JL Unlimited Sport S
    2019 Jeep Wrangler JL Unlimited Sport S
    2020 Jeep Wrangler JL Unlimited Sport S
    2021 Jeep Wrangler JL Unlimited Sport S
    2022 Jeep Wrangler JL Unlimited Sport S
    2023 Jeep Wrangler JL Unlimited Sport S
    Unlimited Sport S Diesel
    2020 Jeep Wrangler JL Unlimited Sport S Diesel
    2021 Jeep Wrangler JL Unlimited Sport S Diesel
    2022 Jeep Wrangler JL Unlimited Sport S Diesel
    2023 Jeep Wrangler JL Unlimited Sport S Diesel
    Unlimited Sport S I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2021 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    Unlimited Willys
    2022 Jeep Wrangler JL Unlimited Willys
    2023 Jeep Wrangler JL Unlimited Willys
    Unlimited Willys 4xe
    2023 Jeep Wrangler JL Unlimited Willys 4xe
    Unlimited Willys Diesel
    2022 Jeep Wrangler JL Unlimited Willys Diesel
    2023 Jeep Wrangler JL Unlimited Willys Diesel
    Unlimited Willys I4 Turbo
    2022 Jeep Wrangler JL Unlimited Willys I4 Turbo
    2023 Jeep Wrangler JL Unlimited Willys I4 Turbo
    Unlimited Willys Sport
    2022 Jeep Wrangler JL Unlimited Willys Sport
    2023 Jeep Wrangler JL Unlimited Willys Sport
    Unlimited Willys Sport Diesel
    2022 Jeep Wrangler JL Unlimited Willys Sport Diesel
    2023 Jeep Wrangler JL Unlimited Willys Sport Diesel
    Unlimited Willys Sport I4 Turbo
    2022 Jeep Wrangler JL Unlimited Willys Sport I4 Turbo
    2023 Jeep Wrangler JL Unlimited Willys Sport I4 Turbo
    Willys
    2022 Jeep Wrangler JL Willys
    2023 Jeep Wrangler JL Willys
    Willys I4 Turbo
    2022 Jeep Wrangler JL Willys I4 Turbo
    2023 Jeep Wrangler JL Willys I4 Turbo
    Willys Sport
    2022 Jeep Wrangler JL Willys Sport
    2023 Jeep Wrangler JL Willys Sport
    Willys Sport I4 Turbo
    2022 Jeep Wrangler JL Willys Sport I4 Turbo
    2023 Jeep Wrangler JL Willys Sport I4 Turbo
