Motobilt Spare Tire Carrier – Bare

Name: Motobilt Spare Tire Carrier – Bare
Brand: Motobilt
SKU: MB1089
Price: 669 USD
Availability: InStock
Rating: 5 (2 reviews)

JL

Read 2 Reviews | 1 Q&As

Part # MB1089

$669.00

2007 entries1338 entries - 2025 Northridge4x4 Jeep Giveaway

Quantity

Only 1 left!

Qualifies for
free shipping!

Set your vehicle to confirm fitment

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Installation Instructions

Customer Reviews (2)

Questions (1) Answers (1)

Customer Photos and Videos

Fitment Details

Features & Product Details

Once larger tires are installed on a Jeep JL or JLU, the factory tire carrier quickly becomes a weak point. The added weight of a 35 inch or larger tire puts stress on the factory hinges and mounting points, which were not designed for that kind of load. Over time this leads to sagging, rattling, and difficulty opening and closing the tailgate.

Many aftermarket solutions try to fix this by adding bumper-mounted carriers or complicated linkage systems. These often introduce new problems, including alignment issues, additional moving parts, and constant adjustment to keep everything working correctly.

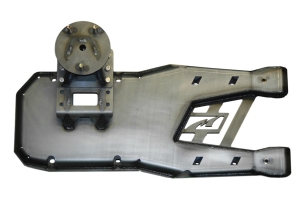

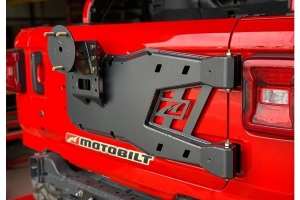

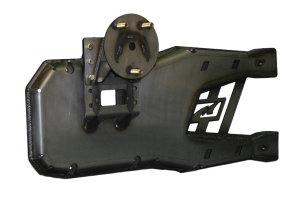

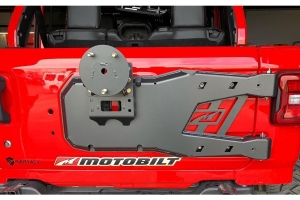

The Motobilt JL Tire Carrier is designed to address those issues by reinforcing the factory tailgate mounting structure with a fully integrated, single-piece design. Instead of spreading the load across multiple separate components, this carrier mounts using 12 points compared to the factory 4, distributing the weight more evenly and improving long-term durability.

Built from 3/16-inch laser cut and formed steel, the carrier is designed to support larger tire and wheel combinations while maintaining smooth operation using the factory tailgate handle. Adjustable mounting points allow the tire to be positioned both vertically and front to back, helping dial in proper clearance for different tire sizes and wheel setups.

This tire carrier is available in multiple lug patterns to match your wheel and axle setup. In addition to the standard Jeep bolt pattern, Motobilt offers versions for 8 lug applications including 8 on 6.5 and 8 on 170 (Ford Super Duty). These options are intended for builders running one-ton axles or heavy-duty wheel and tire combinations where matching lug pattern is required.

The system uses high-density hinge bushings with steel inner liners along with greaseable pivot points to maintain smooth operation over time. It is designed to work with both factory and aftermarket bumpers and integrates with Motobilt accessories and license plate relocation systems.

This is a bolt-on solution for builders who need to support larger tires without adding unnecessary complexity to the rear of the Jeep.

Important Information

Designed for 2018 and newer Jeep JL and JLU

Bolt-on installation using factory mounting locations

Ships bare steel and must be painted or coated before installation

Designed for tire sizes 35 inch and larger (can accommodate smaller sizes)

Supports up to a 42-inch tire

Requires license plate and camera relocation kit (MB2115)

Factory tailgate catch must be removed

Aftermarket tail light covers may interfere when fully opened

High lift jacks may interfere with tail lights when mounted to carrier

Designed for wheel backspacing between 4.25 inch and 5.5 inch

Wheel spacers may be required for larger backspacing setups

Available in multiple lug patterns including standard Jeep and 8 lug options (8x6.5 and 8x170)

Product Specifications

Material: 3/16-inch Steel

Mounting Points: 12 mounting points compared to factory 4

Tire Capacity: Up to 42-inch tire

Adjustment: Vertical and front-to-back tire positioning

Hinge Design: High density bushings with steel inner liners

Greasable pivot points

Thread Size: 3/8-16 weld nuts for accessories (qty 2)

Wheel Stud Size: 14mm x 1.5

Weight: Approximately 58 lbs

Manufactured: Made in the USA

Notes

Direct bolt-on installation using factory mounting points

Factory tailgate catch must be removed

Shims are used on the bottom hinge during installation

Test fit before final coating

Requires use of license plate and camera relocation kit MB2115

Verify clearance with tail lights and accessories when fully opened

Product Resources

Installation Instructions

Customer Reviews (2)

Questions (1) Answers (1)

Customer Photos and Videos

Fitment Details

Specifications

Brand: Motobilt

Adjustable: Yes

Color: Bare

Material: Steel

Material Thickness: 3/16in

Type: Tire Carrier Hinged

Capacity: 40in Tire

Install Method: Bolt On

Mfgr. Warranty: No Warranty

Condition: New Product

Return Policy:

Standard

REVIEWS & CUSTOMER MEDIA

2 Reviews

5 out of 5 Stars

5 Stars

(2)

4 Stars

(0)

3 Stars

(0)

2 Stars

(0)

1 Stars

(0)

Customer Photos and Videos

Motobilt Spare Tire Carrier – Bare ( Part Number: MB1089)

Motobuilt tire carrier 1 year ago

5out of 5stars

DJS
Heavy duty , easy install, fits well.

Was this review helpful?
Sign In to vote!

What wheel offset/back spacing do you have? 2 years ago

5out of 5stars

Crybaby
A stock 2021 JLU jeep rim with a 35" MT will not bolt up due to the backspace. I installed this carrier after powder coat then couldn't mount the spare that came off the factory mount. I got the cheeepest 17" -12 rim I could find from China then dismounted and mounted the tire to this new spare. After the weight of the new wheel assembly was placed on the door it needed all the shims. If you are buying this mount because you actually need it start off with all 4 shims. If I had to do it again with what I know now 1 hour install tops with glass cleaner polished plastic. That was my gripe sorry for venting. This carrier is super smooth, doesn't sag at all. with perfect body lines after some love. Very well built.

Was this review helpful?
Sign In to vote!

QUESTIONS & ANSWERS

Q: Back up camera Gossamer JL4 years ago
Will the factory back up camera fit this carrier? 2020 Rubicon JL
- 1 of 1 people found the following answer helpful
  A: Designed to work with License plate/camera mount relocation kit MB2115
  Northridge Chris @ Northridge4x4 4 years ago

  Was this answer helpful?
  Sign In to vote!
