Teraflex CRD60 HD Rear Axle w/ 4.88 R&P and ARB Locker - 0-6in Lift - JL

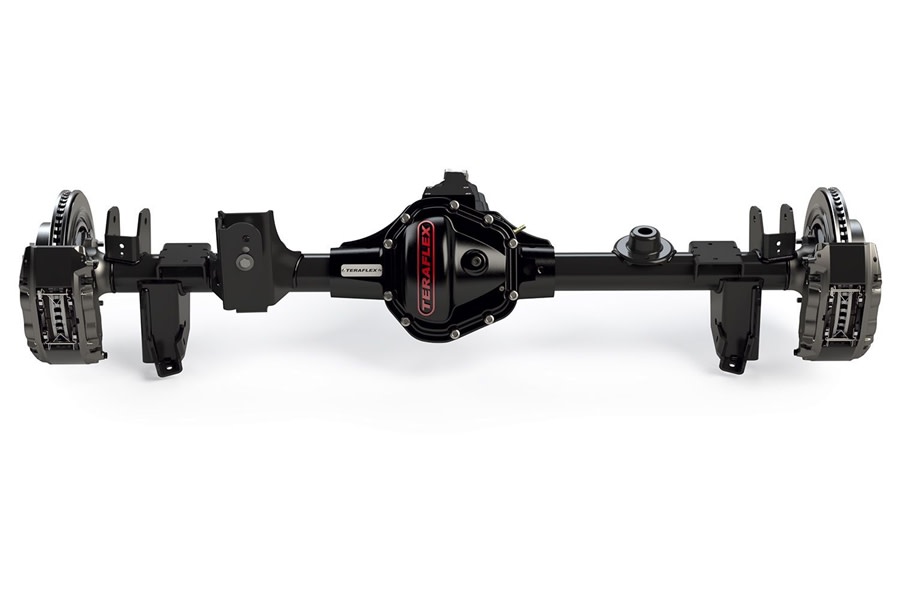

Teraflex CRD60 HD Rear Axle w/ 4.88 R&P and ARB Locker - 0-6in Lift

JL

Teraflex CRD60 HD Rear Axle w/ 4.88 R&P and ARB Locker - 0-6in Lift - JL
Write a Review | Q&A
Part # 3208488We price match! Call 866-601-5340!
We Price Match
$5,184.99
msrp: $6,099.99

Out of Stock. Average time to ship: 1-2 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

The complete Tera CRD60 HD Rear Axle Assembly w/ Semi-Float includes an ARB air locker, a choice of pre-installed Spicer Super 60 ring & pinion gears as well as Spicer Super 60 bearings, semi-float rear axle shafts, and sensors. TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JL Wrangler/Unlimited vehicles including Rubicon models.

Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle’s weak areas. The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength. Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!

Features and Benefits

JL: 68” Tera CRD60 HD Rear Axle w/ Semi-Float:

  • Lift Height: 0-6in
  • Factory-style semi-float axle design
  • 68” wheel mounting surface to wheel mounting surface
  • 3.25” O.D. x 0.375” wall DOM axle tube for superior strength vs. weight
  • 40-spline semi-float axle shafts and bearings
  • Dual 5x5” and 5x5.5” wheel bolt pattern
  • Gear Ratio: 4.88
  • JL: Tera CRD60 Rear Axle Assembly:

  • Fixed spindle mount hub assembly
  • Tera CRD60 specific high-pinion rear axle housing design
  • Includes Spicer Super 60 bearings and install kits
  • Includes Spicer 1350 series pinion yoke
  • HD bearing caps increase rigidity and reduce ring & pinion distortion
  • Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
  • Built-in “skimmer” cuts ring gear oil halo and forces it into the pinion bearings
  • Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
  • Oversized outer pinion bearing handles increased torque and high-load conditions
  • High-capacity housing holds maximum amount of oil
  • Pre-installed inner axle seals
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover w/ increased cover mounting area
  • Integrated lower control arm skid plates
  • High-flow oil passages
  • Reinforced rear track bar mount w/ multiple mounting locations
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4”-thick CNC laser cut axle brackets for extreme strength
  • Pre-installed upper control arm bushings
  • Proper pinion angle and raised track bar bracket for lifted JL applications
  • Pre-tapped hole on spring perch for bump stop extensions
  • Retains all JL ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
  •

    Note:

    REQUIRES adjustable control arms for caster angle adjustments.

    • Short Control Arm Kit – 8-Arm (0–4.5” Lift) (Alpine: # 1416610) (Alpine IR: # 1416510).

    • Long Control Arm & Bracket Kit – 8-Arm (3–6” Lift) (JL2: Alpine: # 1316012) (JL4: Alpine: # 1316010) (JL2: Alpine IR: # 1310512) (JL4: Alpine IR: # 1310510).

    Specifications

    Brand: Teraflex
    Axle Style: Semi-Float
    Axle Type: Dana 60
    Bolt Pattern: 5x5 / 5x5.5
    Ratio: 4.88
    Spline Count: 40
    Tubing Diameter: 3.25in
    Width: 68in
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Wrangler JL
    Freedom
    2023 Jeep Wrangler JL Freedom
    Freedom I4 Turbo
    2023 Jeep Wrangler JL Freedom I4 Turbo
    Rubicon
    2018 Jeep Wrangler JL Rubicon
    2019 Jeep Wrangler JL Rubicon
    2020 Jeep Wrangler JL Rubicon
    2021 Jeep Wrangler JL Rubicon
    2022 Jeep Wrangler JL Rubicon
    2023 Jeep Wrangler JL Rubicon
    2024 Jeep Wrangler JL Rubicon
    Rubicon I4 Turbo
    2018 Jeep Wrangler JL Rubicon I4 Turbo
    2019 Jeep Wrangler JL Rubicon I4 Turbo
    2020 Jeep Wrangler JL Rubicon I4 Turbo
    2021 Jeep Wrangler JL Rubicon I4 Turbo
    2022 Jeep Wrangler JL Rubicon I4 Turbo
    2023 Jeep Wrangler JL Rubicon I4 Turbo
    2024 Jeep Wrangler JL Rubicon I4 Turbo
    Rubicon X
    2024 Jeep Wrangler JL Rubicon X
    Rubicon X I4 Turbo
    2024 Jeep Wrangler JL Rubicon X I4 Turbo
    Sport
    2018 Jeep Wrangler JL Sport
    2019 Jeep Wrangler JL Sport
    2020 Jeep Wrangler JL Sport
    2021 Jeep Wrangler JL Sport
    2022 Jeep Wrangler JL Sport
    2023 Jeep Wrangler JL Sport
    2024 Jeep Wrangler JL Sport
    Sport I4 Turbo
    2018 Jeep Wrangler JL Sport I4 Turbo
    2019 Jeep Wrangler JL Sport I4 Turbo
    2020 Jeep Wrangler JL Sport I4 Turbo
    2021 Jeep Wrangler JL Sport I4 Turbo
    2022 Jeep Wrangler JL Sport I4 Turbo
    2023 Jeep Wrangler JL Sport I4 Turbo
    2024 Jeep Wrangler JL Sport I4 Turbo
    Sport S
    2018 Jeep Wrangler JL Sport S
    2019 Jeep Wrangler JL Sport S
    2020 Jeep Wrangler JL Sport S
    2021 Jeep Wrangler JL Sport S
    2022 Jeep Wrangler JL Sport S
    2023 Jeep Wrangler JL Sport S
    2024 Jeep Wrangler JL Sport S
    Sport S I4 Turbo
    2018 Jeep Wrangler JL Sport S I4 Turbo
    2019 Jeep Wrangler JL Sport S I4 Turbo
    2020 Jeep Wrangler JL Sport S I4 Turbo
    2021 Jeep Wrangler JL Sport S I4 Turbo
    2022 Jeep Wrangler JL Sport S I4 Turbo
    2023 Jeep Wrangler JL Sport S I4 Turbo
    2024 Jeep Wrangler JL Sport S I4 Turbo
    Unlimited Freedom
    2023 Jeep Wrangler JL Unlimited Freedom
    Unlimited Freedom Diesel
    2023 Jeep Wrangler JL Unlimited Freedom Diesel
    Unlimited Freedom I4 Turbo
    2023 Jeep Wrangler JL Unlimited Freedom I4 Turbo
    Unlimited High Altitude
    2022 Jeep Wrangler JL Unlimited High Altitude
    2023 Jeep Wrangler JL Unlimited High Altitude
    Unlimited High Altitude 4xe
    2021 Jeep Wrangler JL Unlimited High Altitude 4xe
    2022 Jeep Wrangler JL Unlimited High Altitude 4xe
    2023 Jeep Wrangler JL Unlimited High Altitude 4xe
    2024 Jeep Wrangler JL Unlimited High Altitude 4xe
    Unlimited High Altitude Diesel
    2022 Jeep Wrangler JL Unlimited High Altitude Diesel
    2023 Jeep Wrangler JL Unlimited High Altitude Diesel
    Unlimited High Altitude I4 Turbo
    2022 Jeep Wrangler JL Unlimited High Altitude I4 Turbo
    2023 Jeep Wrangler JL Unlimited High Altitude I4 Turbo
    Unlimited Rubicon
    2018 Jeep Wrangler JL Unlimited Rubicon
    2019 Jeep Wrangler JL Unlimited Rubicon
    2020 Jeep Wrangler JL Unlimited Rubicon
    2021 Jeep Wrangler JL Unlimited Rubicon
    2022 Jeep Wrangler JL Unlimited Rubicon
    2023 Jeep Wrangler JL Unlimited Rubicon
    2024 Jeep Wrangler JL Unlimited Rubicon
    Unlimited Rubicon 392
    2021 Jeep Wrangler JL Unlimited Rubicon 392
    2022 Jeep Wrangler JL Unlimited Rubicon 392
    2023 Jeep Wrangler JL Unlimited Rubicon 392
    2024 Jeep Wrangler JL Unlimited Rubicon 392
    Unlimited Rubicon 4xe
    2021 Jeep Wrangler JL Unlimited Rubicon 4xe
    2022 Jeep Wrangler JL Unlimited Rubicon 4xe
    2023 Jeep Wrangler JL Unlimited Rubicon 4xe
    2024 Jeep Wrangler JL Unlimited Rubicon 4xe
    Unlimited Rubicon Diesel
    2020 Jeep Wrangler JL Unlimited Rubicon Diesel
    2021 Jeep Wrangler JL Unlimited Rubicon Diesel
    2022 Jeep Wrangler JL Unlimited Rubicon Diesel
    2023 Jeep Wrangler JL Unlimited Rubicon Diesel
    Unlimited Rubicon I4 Turbo
    2018 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2019 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2020 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2021 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2022 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2023 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    2024 Jeep Wrangler JL Unlimited Rubicon I4 Turbo
    Unlimited Rubicon X
    2024 Jeep Wrangler JL Unlimited Rubicon X
    Unlimited Rubicon X 4xe
    2024 Jeep Wrangler JL Unlimited Rubicon X 4xe
    Unlimited Rubicon X I4 Turbo
    2024 Jeep Wrangler JL Unlimited Rubicon X I4 Turbo
    Unlimited Sahara
    2018 Jeep Wrangler JL Unlimited Sahara
    2019 Jeep Wrangler JL Unlimited Sahara
    2020 Jeep Wrangler JL Unlimited Sahara
    2021 Jeep Wrangler JL Unlimited Sahara
    2022 Jeep Wrangler JL Unlimited Sahara
    2023 Jeep Wrangler JL Unlimited Sahara
    2024 Jeep Wrangler JL Unlimited Sahara
    Unlimited Sahara 4xe
    2021 Jeep Wrangler JL Unlimited Sahara 4xe
    2022 Jeep Wrangler JL Unlimited Sahara 4xe
    2023 Jeep Wrangler JL Unlimited Sahara 4xe
    2024 Jeep Wrangler JL Unlimited Sahara 4xe
    Unlimited Sahara Altitude
    2022 Jeep Wrangler JL Unlimited Sahara Altitude
    2023 Jeep Wrangler JL Unlimited Sahara Altitude
    Unlimited Sahara Altitude Diesel
    2022 Jeep Wrangler JL Unlimited Sahara Altitude Diesel
    2023 Jeep Wrangler JL Unlimited Sahara Altitude Diesel
    Unlimited Sahara Altitude I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sahara Altitude I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sahara Altitude I4 Turbo
    Unlimited Sahara Diesel
    2020 Jeep Wrangler JL Unlimited Sahara Diesel
    2021 Jeep Wrangler JL Unlimited Sahara Diesel
    2022 Jeep Wrangler JL Unlimited Sahara Diesel
    2023 Jeep Wrangler JL Unlimited Sahara Diesel
    Unlimited Sahara I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2021 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    2024 Jeep Wrangler JL Unlimited Sahara I4 Turbo
    Unlimited Sport
    2018 Jeep Wrangler JL Unlimited Sport
    2019 Jeep Wrangler JL Unlimited Sport
    2020 Jeep Wrangler JL Unlimited Sport
    2021 Jeep Wrangler JL Unlimited Sport
    2022 Jeep Wrangler JL Unlimited Sport
    2023 Jeep Wrangler JL Unlimited Sport
    2024 Jeep Wrangler JL Unlimited Sport
    Unlimited Sport 4xe
    2024 Jeep Wrangler JL Unlimited Sport 4xe
    Unlimited Sport Altitude
    2022 Jeep Wrangler JL Unlimited Sport Altitude
    2023 Jeep Wrangler JL Unlimited Sport Altitude
    Unlimited Sport Altitude Diesel
    2022 Jeep Wrangler JL Unlimited Sport Altitude Diesel
    2023 Jeep Wrangler JL Unlimited Sport Altitude Diesel
    Unlimited Sport Altitude I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sport Altitude I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sport Altitude I4 Turbo
    Unlimited Sport Diesel
    2020 Jeep Wrangler JL Unlimited Sport Diesel
    2021 Jeep Wrangler JL Unlimited Sport Diesel
    2022 Jeep Wrangler JL Unlimited Sport Diesel
    2023 Jeep Wrangler JL Unlimited Sport Diesel
    Unlimited Sport I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2021 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sport I4 Turbo
    2024 Jeep Wrangler JL Unlimited Sport I4 Turbo
    Unlimited Sport S
    2018 Jeep Wrangler JL Unlimited Sport S
    2019 Jeep Wrangler JL Unlimited Sport S
    2020 Jeep Wrangler JL Unlimited Sport S
    2021 Jeep Wrangler JL Unlimited Sport S
    2022 Jeep Wrangler JL Unlimited Sport S
    2023 Jeep Wrangler JL Unlimited Sport S
    2024 Jeep Wrangler JL Unlimited Sport S
    Unlimited Sport S Diesel
    2020 Jeep Wrangler JL Unlimited Sport S Diesel
    2021 Jeep Wrangler JL Unlimited Sport S Diesel
    2022 Jeep Wrangler JL Unlimited Sport S Diesel
    2023 Jeep Wrangler JL Unlimited Sport S Diesel
    Unlimited Sport S I4 Turbo
    2018 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2019 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2020 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2021 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2022 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2023 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    2024 Jeep Wrangler JL Unlimited Sport S I4 Turbo
    Unlimited Willys
    2022 Jeep Wrangler JL Unlimited Willys
    2023 Jeep Wrangler JL Unlimited Willys
    2024 Jeep Wrangler JL Unlimited Willys
    Unlimited Willys 4xe
    2023 Jeep Wrangler JL Unlimited Willys 4xe
    2024 Jeep Wrangler JL Unlimited Willys 4xe
    Unlimited Willys Diesel
    2022 Jeep Wrangler JL Unlimited Willys Diesel
    2023 Jeep Wrangler JL Unlimited Willys Diesel
    Unlimited Willys I4 Turbo
    2022 Jeep Wrangler JL Unlimited Willys I4 Turbo
    2023 Jeep Wrangler JL Unlimited Willys I4 Turbo
    2024 Jeep Wrangler JL Unlimited Willys I4 Turbo
    Unlimited Willys Sport
    2022 Jeep Wrangler JL Unlimited Willys Sport
    2023 Jeep Wrangler JL Unlimited Willys Sport
    Unlimited Willys Sport Diesel
    2022 Jeep Wrangler JL Unlimited Willys Sport Diesel
    2023 Jeep Wrangler JL Unlimited Willys Sport Diesel
    Unlimited Willys Sport I4 Turbo
    2022 Jeep Wrangler JL Unlimited Willys Sport I4 Turbo
    2023 Jeep Wrangler JL Unlimited Willys Sport I4 Turbo
    Willys
    2022 Jeep Wrangler JL Willys
    2023 Jeep Wrangler JL Willys
    2024 Jeep Wrangler JL Willys
    Willys I4 Turbo
    2022 Jeep Wrangler JL Willys I4 Turbo
    2023 Jeep Wrangler JL Willys I4 Turbo
    2024 Jeep Wrangler JL Willys I4 Turbo
    Willys Sport
    2022 Jeep Wrangler JL Willys Sport
    2023 Jeep Wrangler JL Willys Sport
    Willys Sport I4 Turbo
    2022 Jeep Wrangler JL Willys Sport I4 Turbo
    2023 Jeep Wrangler JL Willys Sport I4 Turbo
