Innovative AT Products 4-Tire Air System for use w/ ARB Twin Compressor - Orange - JT/JL
Innovative AT Products 4-Tire Air System for use w/ ARB Twin Compressor - Orange - JT/JL
Innovative AT Products 4-Tire Air System for use w/ ARB Twin Compressor - Orange - JT/JL
Innovative AT Products 4-Tire Air System for use w/ ARB Twin Compressor - Orange - JT/JL
Innovative AT Products 4-Tire Air System for use w/ ARB Twin Compressor - Orange - JT/JL

Innovative AT Products 4-Tire Air System for use w/ ARB Twin Compressor - Orange

JT/JL

Write a Review | Q&A
Part # P-24-OR-TG
$244.90
Out of Stock. Average time to ship: 30 days
ANY QUESTIONS?

Product Resources

Features & Product Details

For Use With

Mounting of an ARB Twin Air Compressor Model CKMTA12 for use with 4-Tire Inflation

Product Description

So you have made the choice to buy an ARB Twin Air Compressor.  And now you are left with the task of where to mount it and how to plumb it for use?

Innovative AT Products has taken all the guesswork out and developed a complete 4-tire inflation solution for your Jeep JL / JT!  And with the tool, you can deflate all 4 tires at once and air up all 4 tires at once to an adjustable set point.

Features of the System

  • Tire inflation (and deflation) is even, consistent, and self-equalizes because all 4 tires are connected at once
  • Your ARB investment is safe from the elements and heat tucked neatly under the passenger seat.

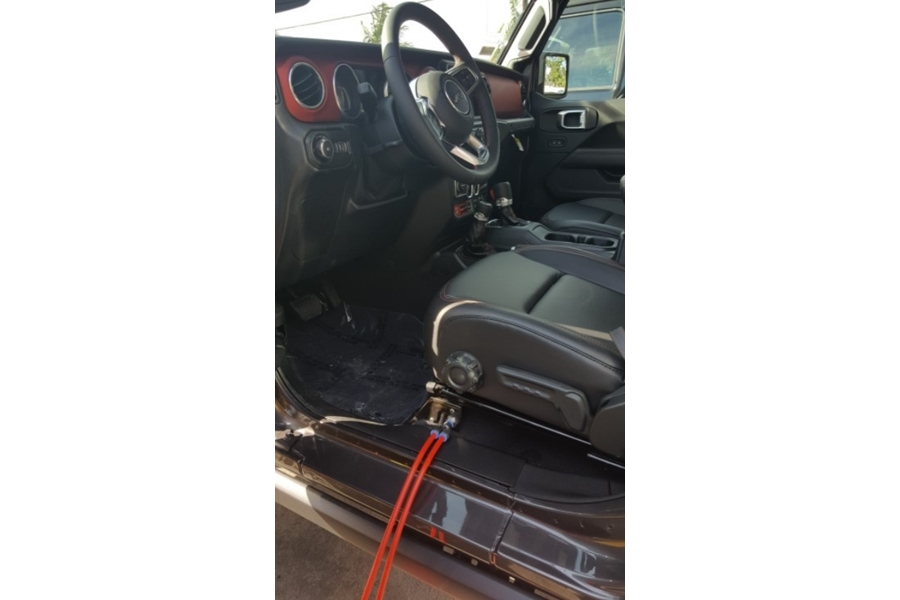

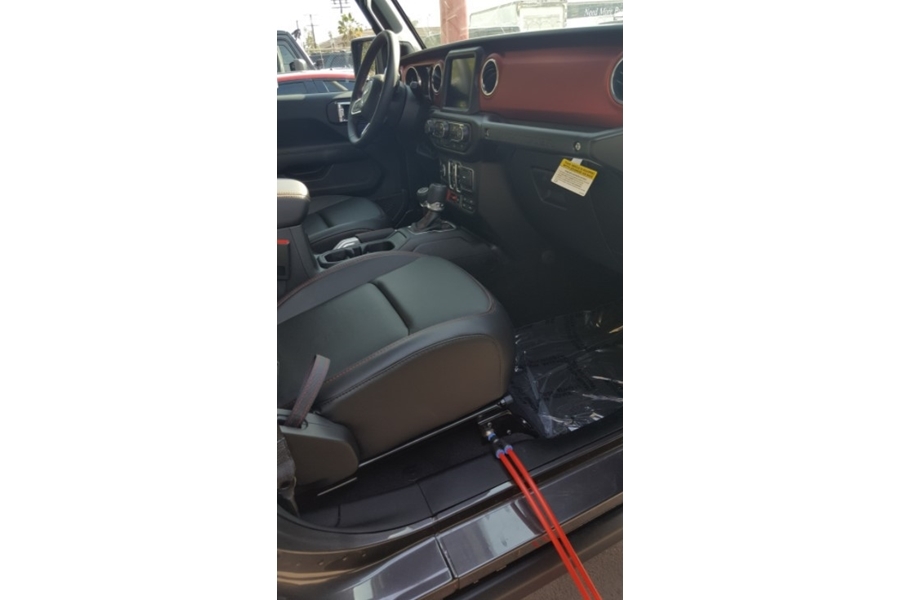

  • All air connections are inside the Jeep, so you do not have to open your hood, crawl under your vehicle, or clean dirt/mud/ice/snow off your air connections.  You can even close your doors “1-click” with the airlines connected for those cold and rainy days to stay warm and dry inside your Jeep while your tires inflate/deflate.
  • It is a “zero residual pressure” system.  Once you are done inflating your tires, the system returns to a neutral state.  There is no pressure in the system that would be subject to expansion and contraction due to changes in temperature / altitude.  That means less stress on components and seals.
  • Only one threaded connection in main supply.  That means no pipe tape, no pipe paste, or multiple threaded connections to deal with and less opportunity for leaks in the long run.
  • No typical bulky and restrictive air connections.  Our system uses simple, clean looking, and non-restrictive air connections.
  • Each air line is 10ft long so you can easily reach your tires or that other vehicle that needs air (because there is always one!).
  • JL / JT Specific Mounting Brackets

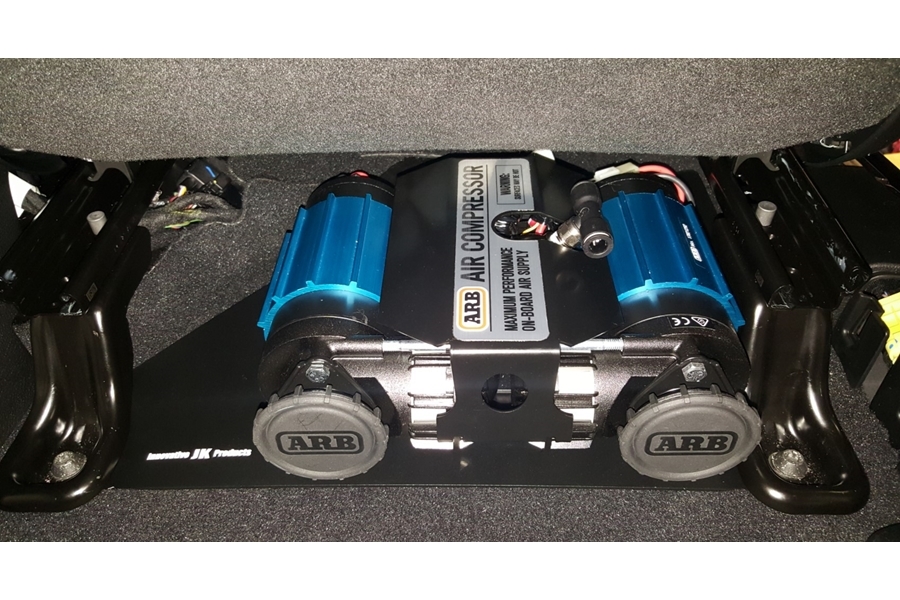

    The mounting bracket set has been specifically designed for mounting an ARB Twin Air Compressor in your Jeep JL under the passenger seat away from all the elements.  The brackets mount to the stationary part of the seat frame and does not interfere or limit any of the seat movement (the same is the case for the seat brackets for the air connections).  All the mounting brackets are laser cut and CNC bent aluminum to exact specifications and satin black powder coated for a clean, long lasting finish.

    The Air Line System

    It is a simple plug and play system.  All you have to do is connect the 2 Y-Connectors on each side of the Jeep, clip on the air chucks, and turn on the compressor.  Typical inflation times for all 4 tires at once from 10-30psi at sea level are:
    33’s – 4 min
    35’s – 5 min
    37’s – 7 min
    40’s – 10 min
    44’s – 12 min

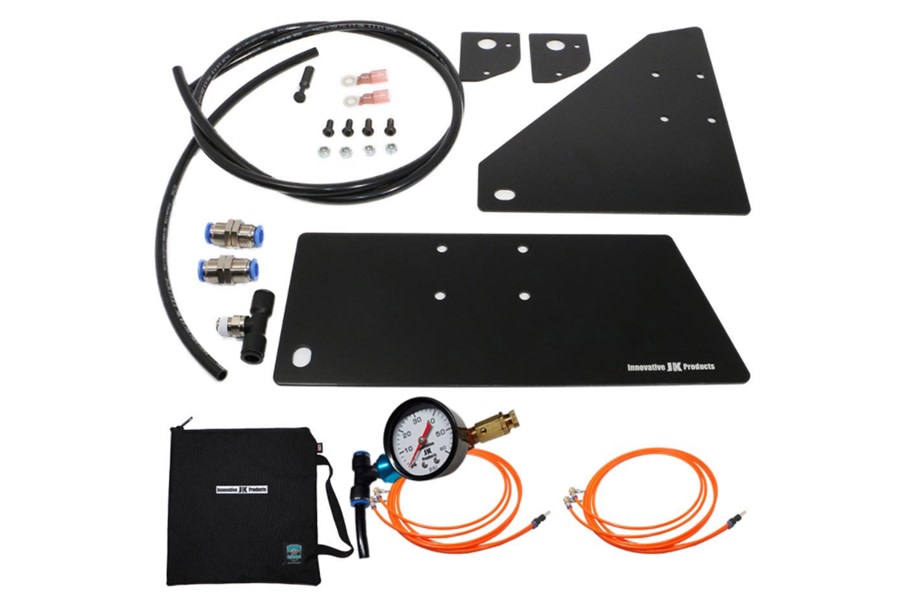

    Kit Contents

    It’s not just a box of parts, it’s a well thought out plan!  The kit includes everything you need to mount / connect the ARB compressor and inflate your tires on your Jeep JL.  The instructions provide step-by-step details to install the brackets, compressor, plumbing, and wiring (including Jeep JK specific connections).  Unlike other systems in a box, there is no guesswork or trying to figure out where everything goes, what length to make each line, etc.  Everything is already done for you!  Each kit contains:

  • 1 Bracket for under seat mounting of ARB Compressor

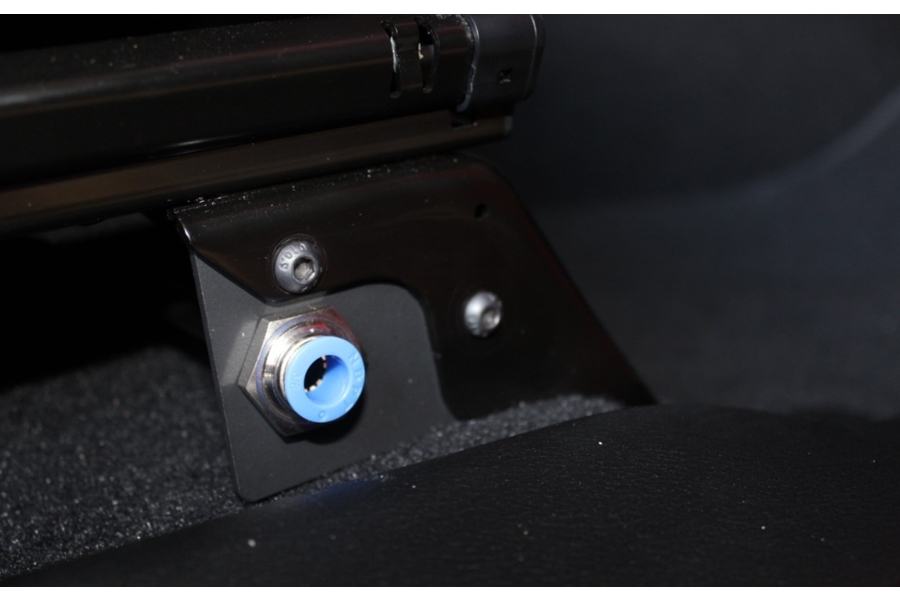

  • 2 Brackets for Air Connections
  • All Bolts / Nuts
  • All Fittings
  • All Pre-Cut Tubing for Air Supply
  • 4 Air Lines (10 ft each) with Connectors, 4 Haltec Air Chucks (not shown in pictures), and Custom Storage Bag
  • All Wiring Terminals / Connectors
  • Air Down / Air Up Tool
  • What you will have to Supply Separately

  • ARB Twin Compressor (CKMTA12) sold separately
  • A mounting solution for the ARB supplied compressor switch.
  • Note:  Not for use with running Air Lockers in addition to tire inflation.

    Specifications

    Brand: Innovative AT Products
    Color: Black
    Hardware Included: Yes
    Hose Length: 10ft
    Location: Under Passenger Seat
    Qty: 1 Kit
    Type: Compressor Mount
    Mfgr. Warranty: No Warranty
    Condition: New Product
    Return Policy:
    Standard
