EVO Manufacturing NV2514 Front Bolt-on Coilover Kit w/ Compression Adjusters, Black - JT/JL

Community Media

Suspension
Shocks
Coilover Kits >EVO Manufacturing NV2514 Front Bolt-on Coilover Kit w/ Compression Adjusters, Black - JT/JL

EVO Manufacturing NV2514 Front Bolt-on Coilover Kit w/ Compression Adjusters, Black

JT/JL

INCLUDED IN PRICE

Component Kit $899.00

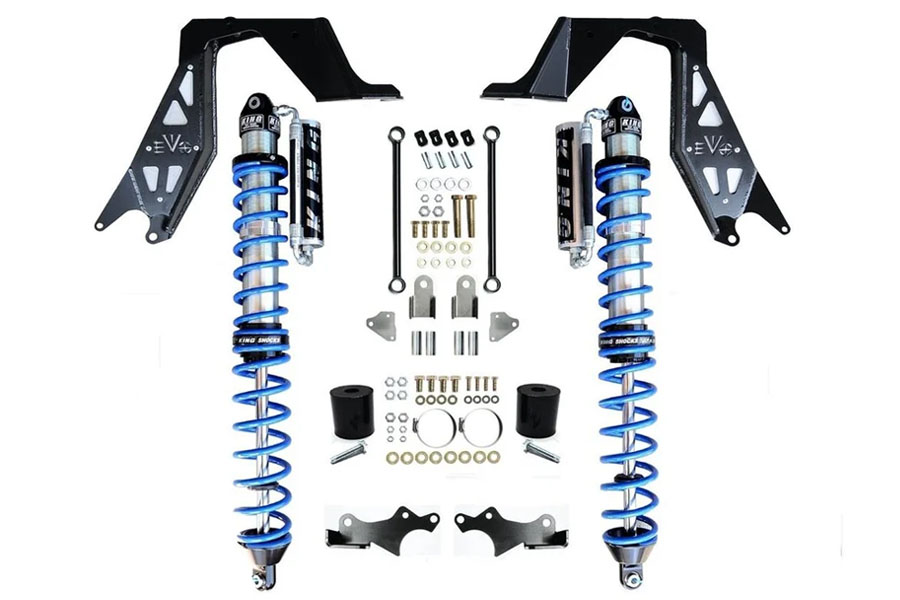

1 x EVO Manufacturing Front Coilover Component Kit - JL
EVO903B

Only 1 left!
Front Coilover Kit w/ Adjusters $2,650.00

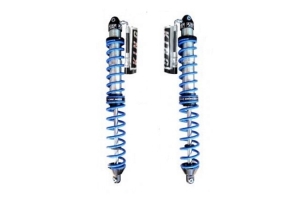

1 x EVO Manufacturing 2.5in Front Coilover w/ Comp Adjuster - Pair - JL
EVO600124KBA

Only 1 left!
Shock Relocation Brackets $99.00

1 x EVO Manufacturing Protek Front Shock Relocation Brackets, Black - JT/JL
EVO3027B

Out of stockProduct will ship from manufacturer, average time to ship: 1-2 business days

$3,648.00

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

★★★★★

()
Write a Review | Q&A

Part # 3028BA

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Installation Instructions

Customer Photos and Videos

Fitment Details

Features & Product Details

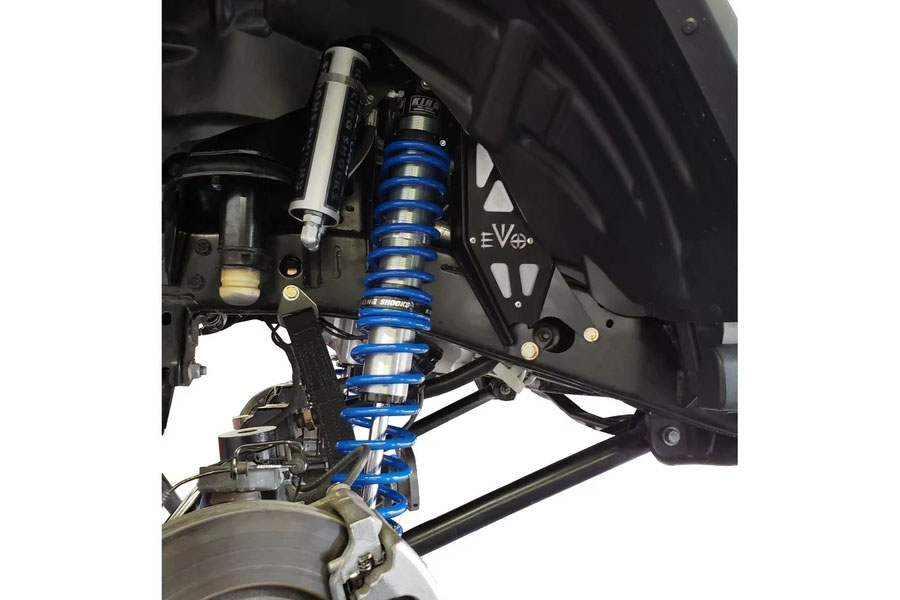

With the release of the JL / JT Wrangler / Gladiator and EVO Manufacturing’s history in providing the most proven high-performance Jeep Wrangler Coilover suspension systems, they knew this high-performance product must continue the JL. The primary focus from the moment they started this project was to build the most high-performance largest wheel travel, lowest lift (LCG) product possible. The JL / JT suspension and inner wheel wells gave us an excellent canvas to do so. Starting in the front with wide openings, high engine accessorial mounts and outboard shocks, they found the ideal location. By placing the shock upper mount up and rearward of its factory location, they are able to tuck the shock in close to the frame keeping it further away from tire which allows for more tire clearance and less backspacing requirements, but also allowing for a longer shock, more actual wheel travel and even lower minimum lift heights. EVO then involved King Shock Technology and their engineers to build a specifically valved and tuned custom length 2.5” Diameter long travel remote reservoir coilover to maximize wheel travel while minimizing lift height requirements. The high tucked in bracketry and custom long travel coilover produces the ultimate bolt on front coilover kit available.

Through this engineering and detailing the EVO MFG JL / JT NV2514 Front Bolt-on Coilover kit is able to achieve up to 14.5” of wheel travel with only 3-5” (lift height is adjustable) of lift and most wheel and tire combinations will require a backspacing of 3.75” or smaller (not recommended on factory narrow axles) Necessary equipment is included to convert including brake line provisions, bump stop extensions, swaybar end links and hardware. All Bracketry is laser cut, CNC press brake formed and fixtured welded for great fitment. This product is easy to install by the mechanically inclined or professionals. Bolt on installation (Some cutting and drilling required).

This kit is Mojave Compatible with installer fabrication.

Notes:

*Use with short/mid control arms (EVO MFG Enforcer Arms or other) require additionally EVO-3030F Front Limit Strap Kit (sold separately), factory front driveshaft compatible.

*Use with Long Arm kits (EVO MFG JL High Clearance Long Arm or other) does not require limit straps (EVO-3030F) to achieve stated wheel travel, in this configuration, aftermarket front driveshaft is required. Front Adjustable Trackbar required (not included).

Stated lift range is variable on build, added/removed accessories weight and owners needs .Some installer adjustments to coil may be needed to accommodate owners needs and build requirements
