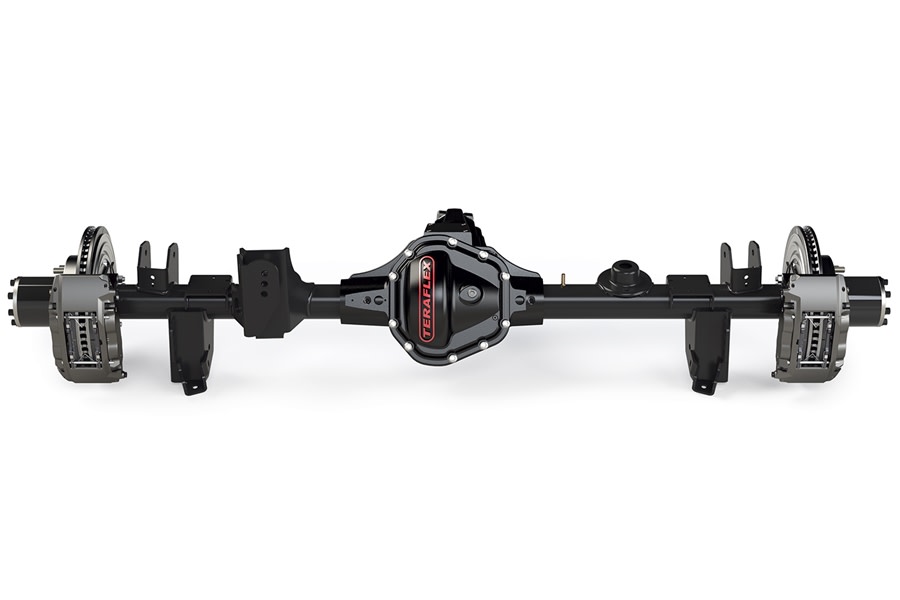

Teraflex Rear Full-Float CRD60 HD Axle w/ 4.30 R&P and ARB Locker - 0-6in Lift - JL

Teraflex Rear Full-Float CRD60 HD Axle w/ 4.30 R&P and ARB Locker - 0-6in Lift

JL

Teraflex Rear Full-Float CRD60 HD Axle w/ 4.30 R&P and ARB Locker - 0-6in Lift - JL
Write a Review | Q&A
Part # 3206430We price match! Call 866-601-5340!
$8,298.99
+$ Oversize Shipping Surcharge

Out of Stock. Average time to ship: 7-10 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

The complete Tera CRD60 HD Rear Axle Assembly w/ Full-Float provides a choice of pre-installed Super 60 ring & pinion gears, ARB air locker, and full-float outer axles as well as inner axle shafts, and sensors.

TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JL Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles’ weak areas.

The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength.

Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!

Specs:

• WMS-WMS: 70”
• Axle Tube: 3.25” x 0.375”
• Wheel Bolt Pattern: 8x6.5”
• Gear Ratio: 4.30

Includes:

• ARB Air Locker
• Spicer Super 60 ring & pinion
• Spicer bearings and install kits
• Full-float axles
• 35-spline inner and outer axle shafts
• 1350 series pinion yoke
• Dana 60 / Tera CRD60: Differential Cover Kit

Features & Benefits:

• Extreme duty full-float design
• 3.25” O.D. x 0.375” wall DOM axle tube for superior strength vs. weight
• 70” WMS-WMS and 8x6.5” wheel bolt pattern
• Fixed spindle mount hub assembly
• Tera CRD60 specific high-pinion rear axle housing design
• Includes 1350 series pinion yoke
• 35-spline inner and outer axle shafts
• HD bearing caps increase rigidity and reduce ring & pinion distortion
• Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
• Built-in “skimmer” cuts ring gear oil halo and forces it into the pinion bearings
• Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
• Oversized outer pinion bearing handles increased torque and high-load conditions
• High-capacity housing holds maximum amount of oil
• Pre-installed inner axle seals
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover w/ increased cover mounting area
• Integrated lower control arm skid plates
• High-flow oil passages
• Bottom oil drain hole for simple fluid changes
• Reinforced rear track bar mount w/ multiple mounting locations
• UV protected triple-stage powder coat for corrosion resistance
• 1/4”-thick CNC laser cut axle brackets for extreme strength
• Pre-installed upper control arm bushings
• Proper pinion angle and raised track bar bracket for lifted JL applications
• Pre-tapped hole on spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JT ESP, ABS, and speedometer sensor capability
• 100% engineered, designed, and built in the USA w/ new components
• 1-Year/Unlimited Mileage Warranty

REQUIRES adjustable control arms for caster angle adjustments.

Specifications

Brand: Teraflex
Axle Style: Full Float
Axle Type: Dana 60
Bolt Pattern: 8x6.5
Locking Hubs: Yes
Ratio: 4.30
Spline Count: 35
Tubing Diameter: 3.25in
Width: 70in
Mfgr. Warranty: 1 Year Warranty
Condition: New Product
Return Policy:
Standard
