Grill/Bumper Light Mounts >Grimm Offroad Bumper Light Mounts w/ Pair of LED Lights - JT/JL

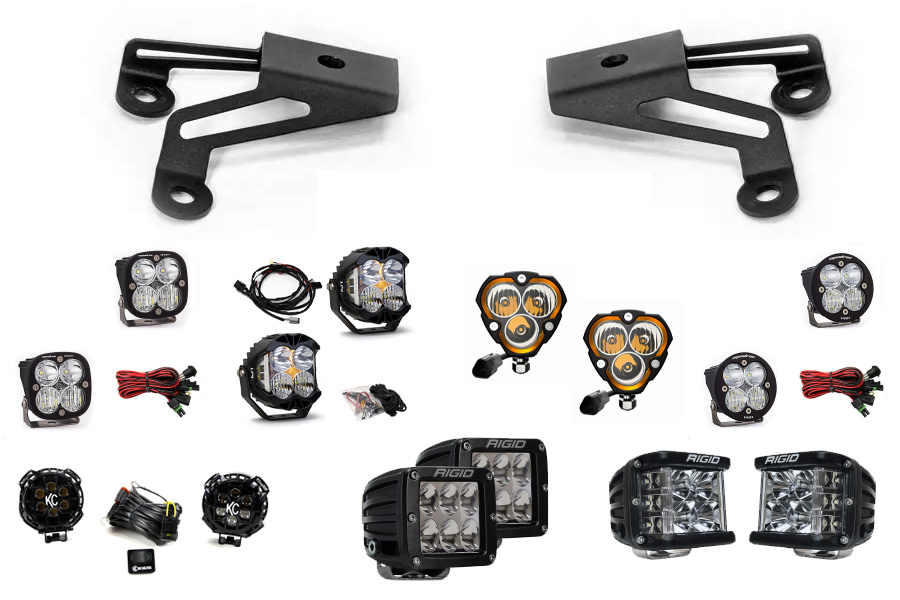

Grimm Offroad Bumper Light Mounts w/ Pair of LED Lights

JT/JL

INCLUDED IN PRICE

Bracket $59.95

1 x Grimm Offroad Steel Bumper Side Light Mounts - JT/JL
GOR10073

In stock!

BUNDLE ASSEMBLY OPTIONS

Choose Pair of Lights

$59.95

59 entries59 entries - 2025 Northridge4x4 Jeep Giveaway

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 10073PKG

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber day-time running light, the LP4 will fulfill all your lighting needs. QTY (2) LP4 LED Light

Includes:

QTY (2) LP4 LED Light

QTY (1) Wiring Harness

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Baja Designs Features:

Satisfactions Guarantee – 30 Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService® – Replaceable Lenses And Optics

ClearView® – All The Light, Right Where You Need It.

MoistureBlock™ – Waterproof, Rain Proof, Submersible

CopperDrive® – Only LED Driven At 100%

5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

Forward Projecting Lumens: 7,050 Utilizing 4 LEDs

Forward Projecting Wattage/Amps: 60W / 6.5A

IPT Lumens: 1,700 Utilizing 4 LEDs

IPT Wattage/Amps: 15W / 1.0A

Backlight Wattage/Amps: 4.83W / 0.35A

Dimensions: 5.1" Height / 5.1" Width / 3.2" Depth

Weight: 2.8lbs

LED Life Expectancy: 49,930 Hours

Front Lens: Hardcoated Polycarbonate

Housing: Hard Anodized Machined Aluminum

Bezel: Billet Machined Aluminum

Hardware & Bracket Material: Stainless Steel

Exceeds MIL-STD810G (Mil-Spec Testing)

Built-In Overvoltage Protection

IP69K (Waterproof up to 9ft & Pressure Washable)

Specifications:
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps: 60W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.83W / 0.35A
Dimensions: 5.1" Height / 5.1" Width / 3.2" Depth
Weight: 2.8lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
