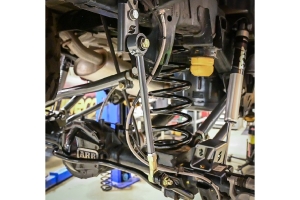

Synergy Manufacturing Rear Sway Bar Links
JT
Product Resources
Features & Product Details
Features:
• Synergy Rear Sway Bar Links
• Spherical bushing at axle side minimizes bind
• High quality rod end reduces bushing deflection causing the swaybar to operate more efficiently
• Easy installation using stock mounting hardware
• Sway Bar Links are made from 11/16" solid 1018 steel and are clear zinc plated for maximum corrosion resistance
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Includes:

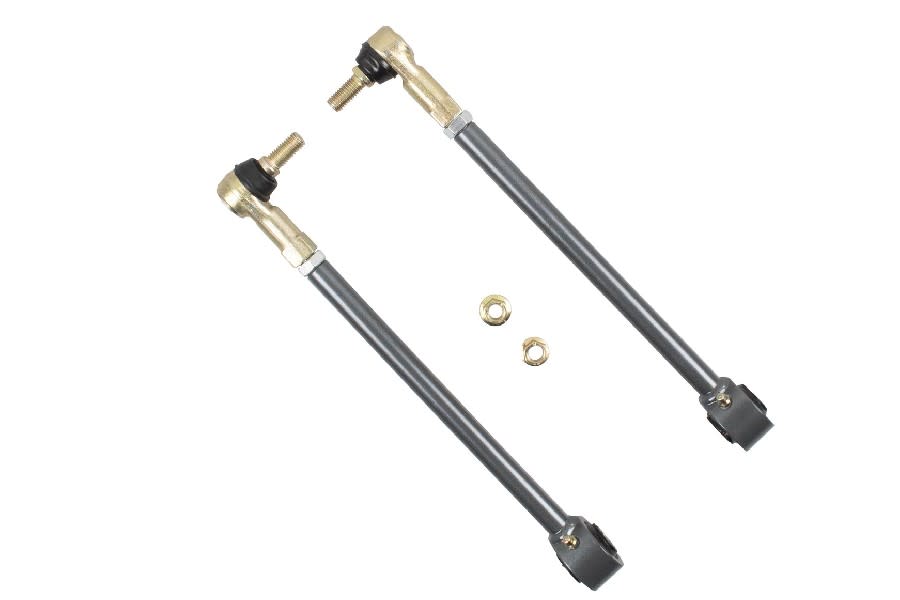

• (2) Rear Sway Bar Links
• (1) Rear Sway Bar Hardware Kit Min/Max Lengths: Measured in a straight line from center of bolt hole to center of TRE stud
• 12.75" collapsed
• 13.25" extended
Requirements:
• Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
Notes: JT 2 inch lift height and taller
Specifications
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
QUESTIONS & ANSWERS
-
Q: Rear sway bar end links Tmqdoc12 years ago
Will these be long enough for the fab tech 5” coil springs?
-
-
0 of
0 people found the
following answer helpful
A: Yes, these will work for you.
Northridge Chris @ Northridge4x4 2 years agoWas this answer helpful?
-
