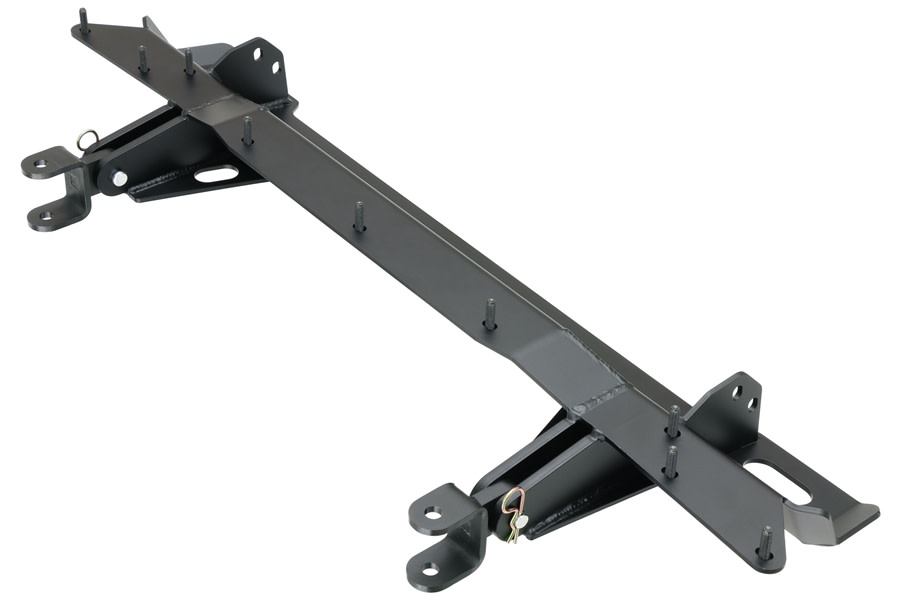

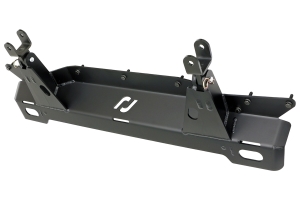

RockJock Tow Bar Mounting Kit
JL/JT w/Steel Bumper
Features & Product Details
RockJock’s Steel Bumper Tow Bar Mounting Kit for JL Wrangler, JL Unlimited and JT Gladiator vehicles provides you with a heavy duty, easy to install tow bar mounting plate that simply replaces the stock under-bumper chin panel on your vehicle. Our new plate bolts directly to the bottom of the factory bumper and the bottom of the frame, in place of the factory panel.
The RockJock plate is fabricated from laser cut and machined steel components and powder coated semi-gloss black for maximum durability. The plate’s slim design retains maximum clearance and approach angle.
Kit Fits:
JL Wrangler Unlimited (4-door) – All Models w/ Factory Steel Bumper Option
JL Wrangler (2-door) – w/ All Models Factory Steel Bumper Option
JT Gladiator (ex. Mojave) – All Models w/ Factory Steel Bumper Option
Tow Bar Compatibility:
Curt (RJ-19745 and RJ-70001)
Blue Ox (most styles)
Demco (most styles)
Roadmaster (most styles)
Winch Compatibility:
If you are installing a winch via use of winch plate, many winch plates interfere with the mounting of this tow kit, causing compatibility issues. If you do not intend to use our winch plate, review this tow kit’s instruction manual for clarity (with regards to mounting hole availability) before purchasing this kit or another manufacturer's winch plate.
2024 Year Model Note: if your vehicle is equipped a factory installed winch you must retain the factory installed winch plate! You will notice that the factory plate features slotted holes, allowing it to be adjusted to fit after this tow plate is installed.
Notes:
This kit is only applicable to vehicles with the factory installed steel bumper.
For factory installed plastic bumper applications, see Kit.
Plate is finished in semi-gloss black powder coat.
This kit is not for use with aftermarket bumpers.
If you are installing this kit on a 2024 year model vehicle with a factory installed winch, you will retain the factory winch mounting plate and adjust it to fit after installation of this tow kit.
Specifications
REVIEWS & CUSTOMER MEDIA
I've done a few different kits on jeeps over the years, but this has been the easiest! Probably won't use it for any recovery purposes, but for towing, it seems to be more than adequate.
Sign In to vote!
The lower MOPAR winch plate support bars are adjustable and could be moved inward to allow the RockJock Tow Bar to mount between them and the frame forks. Installed okay once I figured this out. Not perfectly happy with the tow bar connection options to my Roadmaster Sterling AT but it will work.
Sign In to vote!
Jeep factory winch base plate includes reinforcement under the plate that interferes with the mounting connection on the inside of the frame horns. The tow bar mount is well made and I wish it would work, but I'm now stuck with packaging for return shipment. Northridge is helping partially cover return shipping costs since this incompatibility was not known. Northridge is great is usual. No real help from RockJock 4x4.
